1983 Toyota Tercel BaseFACTORY OEM SERVICE PROCEDURE
Land Cruiser

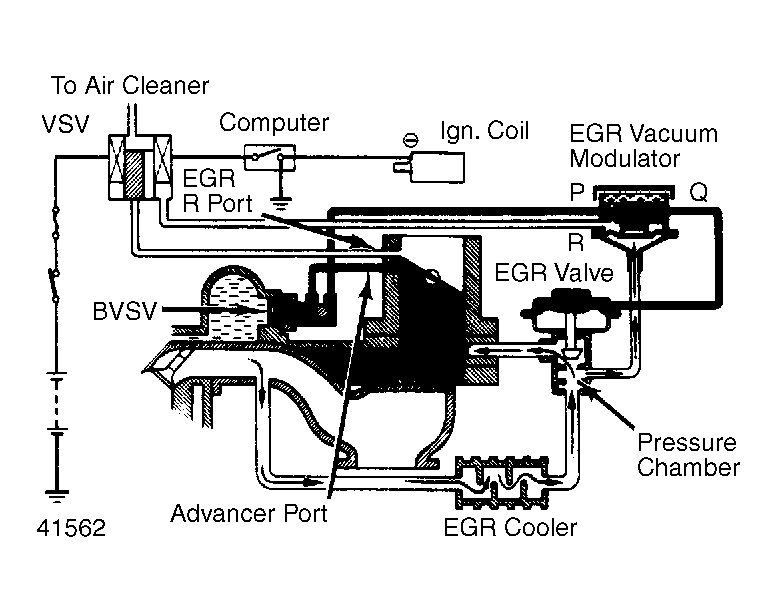

- Using a 3-way connector, connect a vacuum gauge to EGR vacuum hose. Start engine and run at idle speed.
- With coolant temperature below 86°F (30°C), vacuum gauge should indicate zero at 2000 RPM. When engine is warm, low vacuum should be present.
- Disconnect vacuum hoses from pipe "E" and "F" of VSV. Run engine at idle speed. Blow air into pipe "F" checking that VSV closes.
- Increase engine speed to above 1700 RPM. Blow air into pipe "F" checking that VSV opens. Reconnect vacuum hoses.
- If system performed as described, it is operating correctly. If not, test individual components and repair or replace as necessary.
