1983 Toyota Tercel BaseFACTORY OEM SERVICE PROCEDURE
Vacuum Transmitting Valve

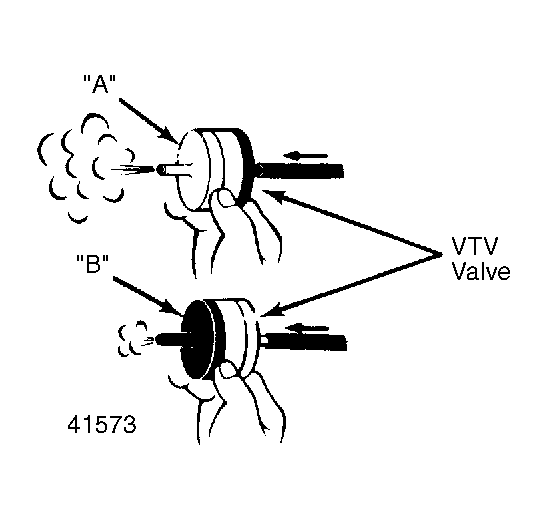

Blow air through each side of valve, air should pass freely from side "B" to "A", but should pass with difficulty from side "A" to side "B". See Fig 1.
