Connect vacuum gauge to distributor sub-diaphragm hose. Check that coolant temperature is below 122°F (50°C). Start engine. Vacuum gauge should indicate high vacuum when engine is accelerated or running at idle. If not, check BVSV or check valve.
Warm up engine to normal operating temperature. Check that vacuum gauge indicates low vacuum at idle and high vacuum when engine is accelerated. If not, check BVSV. Remove vacuum gauge and reconnect hose.
Connect vacuum gauge to distributor main advance diaphragm hose. Set parking brake. Vacuum gauge should indicate high vacuum when power steering is operated, shift lever is shifted to "D" or engine is accelerated. If not, check VCV. Remove gauge and reconnect hose.
Remove distributor cap and rotor. Apply vacuum to diaphragms checking that vacuum advancer moves in accordance with vacuum application. If not, repair or replace vacuum advancer. Reinstall rotor and cap. Testing is complete.

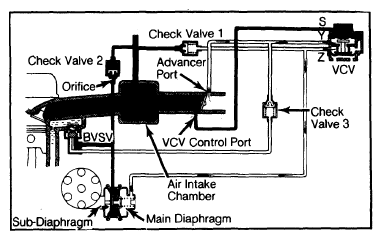

Fig 1: Cressida Spark Control System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
