1982 Toyota Corolla BaseFACTORY OEM SERVICE PROCEDURE

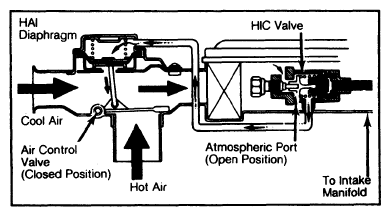

Automatic Hot Air Intake System: Testing
- Visually inspect all hoses for proper condition and connections.
- With engine idling, check that cold air intake is closed when engine is cold and open above specified temperature.
- If system does not respond properly at given temperatures, check air door or linkage for binding, and replace thermal valve as necessary.THERMAL OR HIC VALVE OPERATING TEMPERATURES
Application Closing Temp. °F (°C) Opening Temp. °F (°C) Celica, Corona & Pickup 86 (30) 113 (45) Corolla 89 (32) 101 (39) Land Cruiser 81 (27) 91 (33) Starlet 79 (26) 93 (34) Tercel 72 (22) 84 (29) Thermal Valve type similar.
