1981 Toyota Pickup BaseFACTORY OEM SERVICE PROCEDURE

Crankcase Ventilation Systems: Maintenance

After long periods of engine operation, ventilation valve tends to become clogged, which will affect proper engine operation. Every 30, 000 miles for Federal vehicles, and 60, 000 miles for California vehicles, clean and inspect system and replace PCV valve.

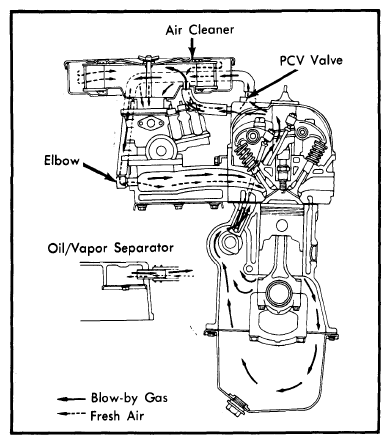

Fig 1: Crankcase Ventilation System (Corolla - 3T-C Engine)
G09313747Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
