Transmission Controlled Spark: Description

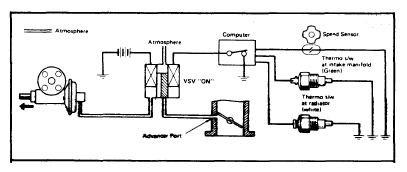

The Transmission Controlled Spark (TCS) system controls vacuum ignition timing in accordance with coolant temperature, vehicle speed, and catalytic converter temperature (4M engine only). System typically consists of speed sensor, computer, temperature sensor, vacuum switching valve, and vacuum unit on distributor.
