2018 Tesla Model X 100DFACTORY OEM SERVICE PROCEDURE
Enable Service Mode Via Vehicle Touchscreen

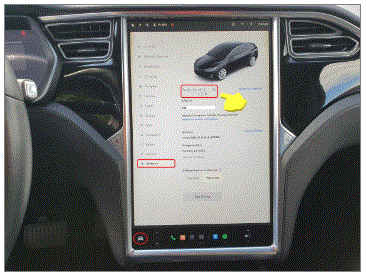

- On the vehicle touchscreen, touch CONTROLS (vehicle icon) > SOFTWARE
.NOTE: An image of the vehicle and badge is displayed.
- Touch and hold the large word "MODEL" for 2 seconds, and then release.

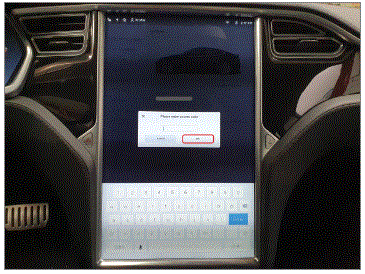

- Use the on screen keyboard to type "service" into the access code field, and then touch OK

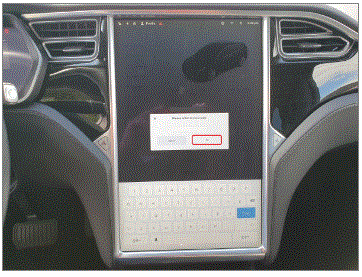

.NOTE: The touchscreen is overlaid with the words "SERVICE MODE" in red. Newer firmware versions have a red border around the edges of the touchscreen UI.
- Return to the procedure that required Service Mode to be enabled.
