Gateway (Unlock)
Last modified: 03/04/2023 11:35:09
UnlockÂ
- Enable Service Mode, if it is not already enabled. See Service ModeÂ
- Place the vehicle key on the phone dock.

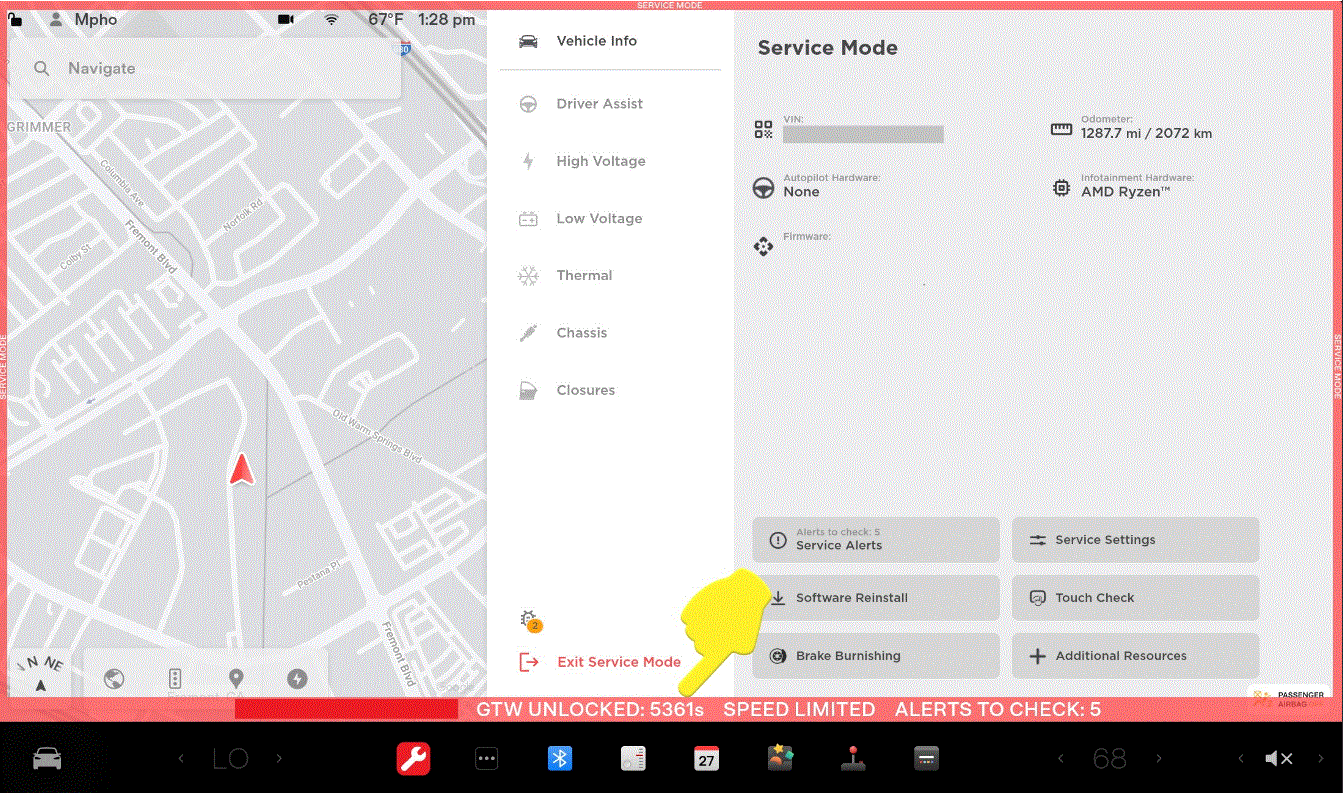

- Simultaneously hold down the brake pedal and the right turn signal button for 10 seconds.NOTE: During these 10 seconds, the bottom of the red Service Mode border on the touchscreen will display "GTW UNLOCKING".
- After 10 seconds, the message will change to "GTW UNLOCKED". The gateway will remain unlocked for 90 minutes.
LockÂ
- The gateway will lock:
- When the countdown timer on the touchscreen's red Service Mode border has elapsed for 90 minutes.
- When exiting the vehicle and closing the doors.
- If the gateway needs to be unlocked for a longer period of time, unlock the gateway again.
