2018 Tesla Model 3 BaseFACTORY OEM SERVICE PROCEDURE
Antenna - Bluetooth Passive Entry - Front - Remove and Replace: Remove
- Raise and support the vehicle. See RAISE VEHICLE - 2 POST LIFT .
- Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
- Remove the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
- Remove the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .
- Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
- Remove the front aero shield panel. See PANEL - AERO SHIELD - FRONT (REMOVE AND REPLACE) .
- Remove the front fascia valance. See VALANCE - FRONT FASCIA (REMOVE AND REPLACE) .
- Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .

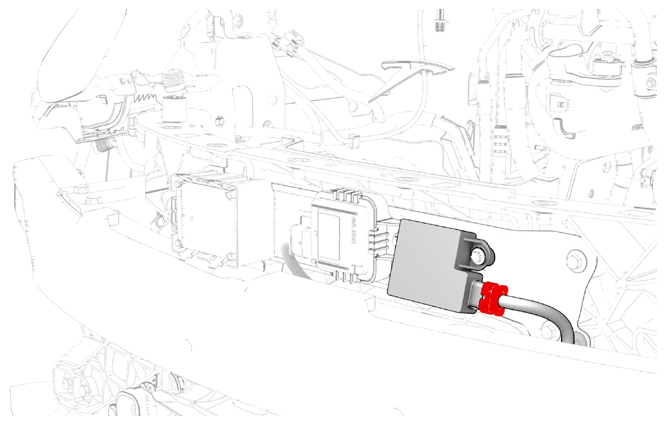

- Disconnect the electrical connector from the front Bluetooth passive entry antenna connector.

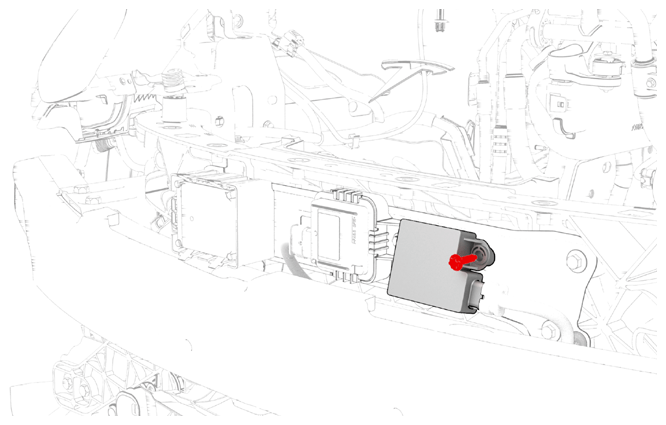

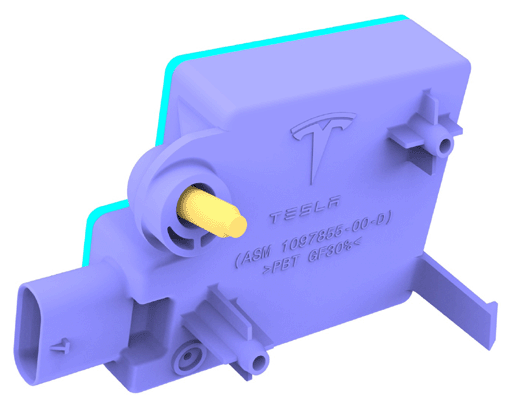

- Remove the bolt that attaches the front Bluetooth passive entry antenna to the front end carrier, and then remove the antenna from the front end carrier.
9 N.m (6.6 ft-lbs)
