2018 Tesla Model 3 BaseFACTORY OEM SERVICE PROCEDURE
Module - HomeLink Transmitter - Remove and Replace: Remove
- Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT)
.CAUTION: Perform the 12V disconnect procedure exactly as detailed to avoid unexpected functionality of the homelink transmitter and touchscreen icon.
- Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .

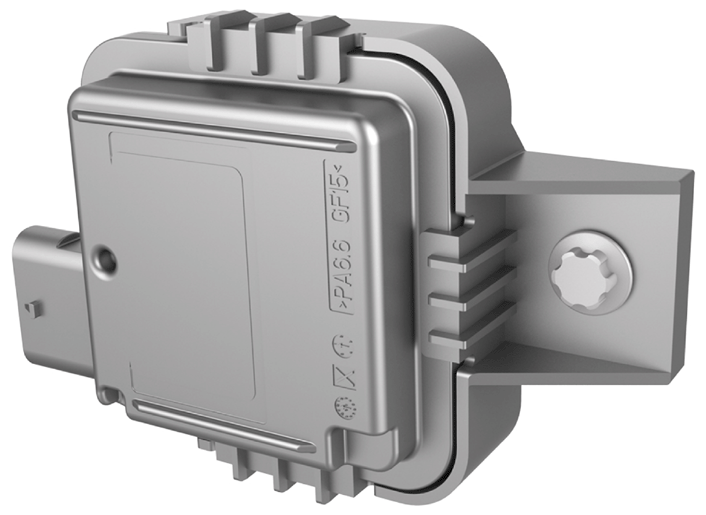

- Disconnect the electrical connector from the HomeLink transmitter module.

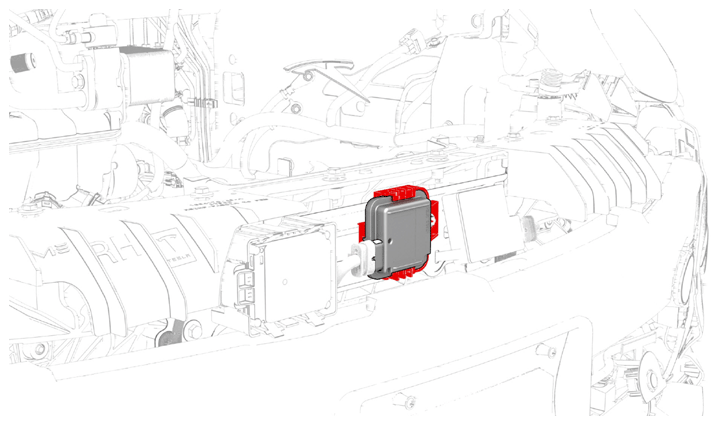

- Release the tab, and then slide the HomeLink transmitter module to the right to remove it from the vehicle.
