2018 Tesla Model 3 BaseFACTORY OEM SERVICE PROCEDURE

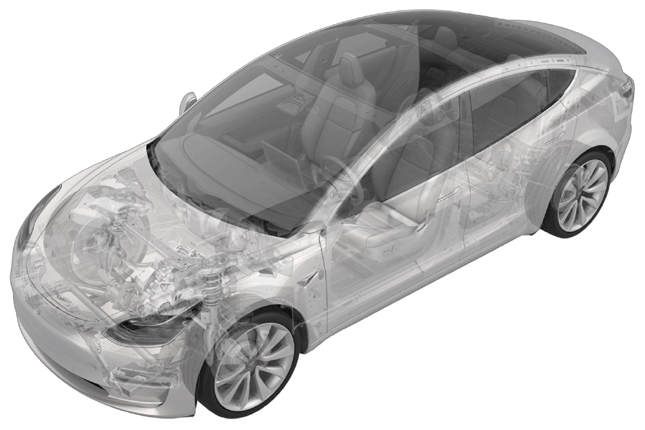

Module - Body Controller - Front (Heat Pump) - Remove and Replace: Notes
Last modified: 21/11/2023 23:12:43
NOTE:
See Personal Protection
to make sure to wear proper PPE when performing below procedure.
Torque Specifications: Module - Body Controller - Front (Heat Pump) - Remove and Replace
| Description | Torque value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Bolt that attaches the ground cable to the front controller. | 10 mm socket Flex head ratchet/flex head torque wrench Ratchet/torque wrench |
Reuse | ||
| Bolts (x2) that attach the front body controller module shield assembly to the front body controller | Flex head ratchet/flex head torque wrench 4 in extension 10 mm socket Ratchet/torque wrench |
Reuse | ||
| Bolts (x3) that attach the front body controller module to the vehicle | Flex head ratchet/flex head torque wrench 10 in extension 10 mm socket Ratchet/torque wrench |
Reuse |
