2018 Tesla Model 3 BaseFACTORY OEM SERVICE PROCEDURE
Accelerator - Remove and Replace: Install

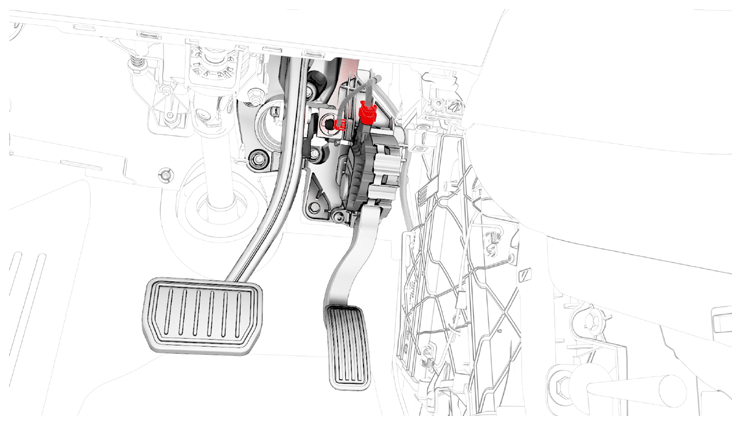

- Slide the accelerator up, and then install the accelerator into the bracket.

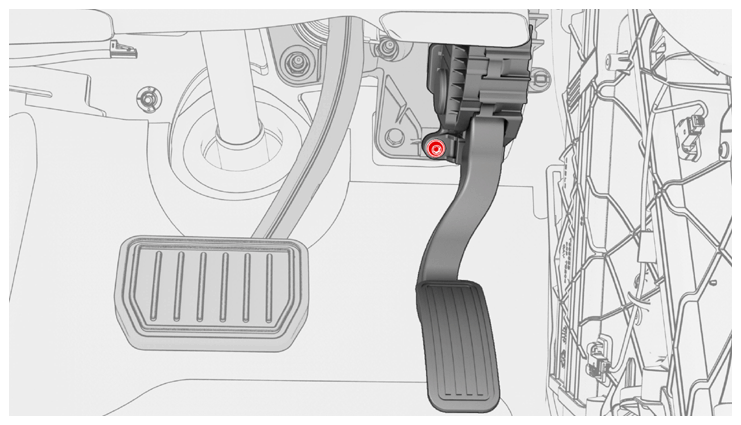

- Install the bolt that attaches the accelerator to the body.
7 N.m (5.2 ft-lbs)
- Connect the accelerator electrical connector.
- Install the LH footwell duct. See DUCT - FOOTWELL - LH (LHD) (REMOVE AND REPLACE) .
- Install the driver knee airbag. See AIRBAG - KNEE - DRIVER (REMOVE AND INSTALL) .
- Reconnect 12V/LV power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
- Connect a laptop with Toolbox 3 to the vehicle.
- Run the following Toolbox routines to confirm pedal operation:
- TEST-SELF_DI_X_ACCEL-PEDAL
- PING-TP_PMR
- TEST-SELF_PMR_X_CAN-COMS
- Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
- Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
