2018 Tesla Model 3 BaseFACTORY OEM SERVICE PROCEDURE

Camera - Forward Facing (Pitch Verification): Setup

  1. Park the vehicle on a flat surface with at least 106 cm (3.5 ft) of space in front of the front fascia.

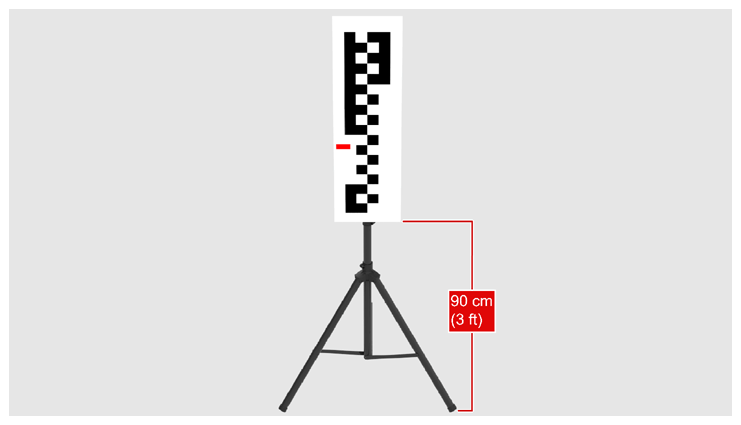

  2. Set up the target so that the bottom of the rectangle is 90 cm (3 ft) from the ground.
    G14744091Courtesy of TESLA, INC.
    CAUTION: Do not assume the tripod is at the correct height from previous verifications. The tripod may have shifted when moved. Measure the height before each setup.

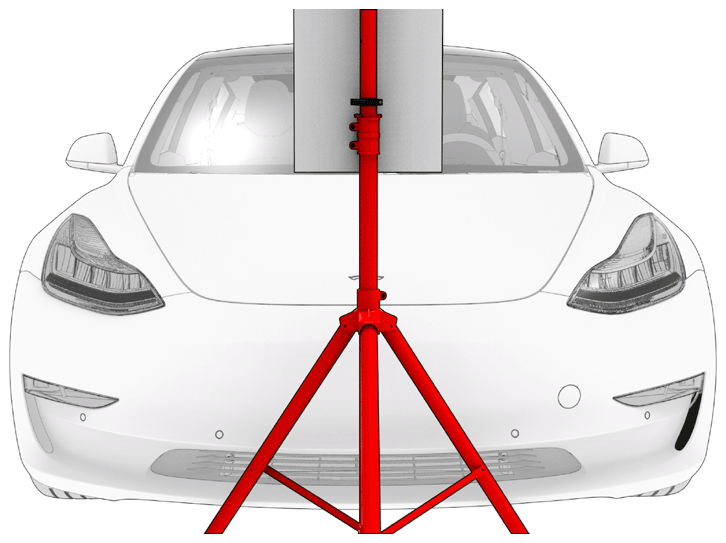

  3. Place the target in the appropriate starting position:
    • The checkered portion of the target is facing towards the vehicle.
    • The target is centered with the Tesla "T" on the hood.
    • The target is placed as close to the front fascia as possible.
    G14744092Courtesy of TESLA, INC.

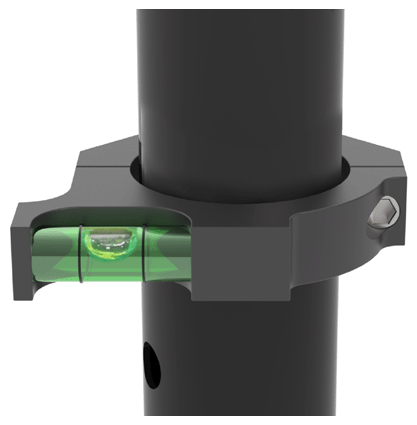

  4. Make sure that the target is on flat ground by examining the bubble level on the back of the target.
    G14744094Courtesy of TESLA, INC.

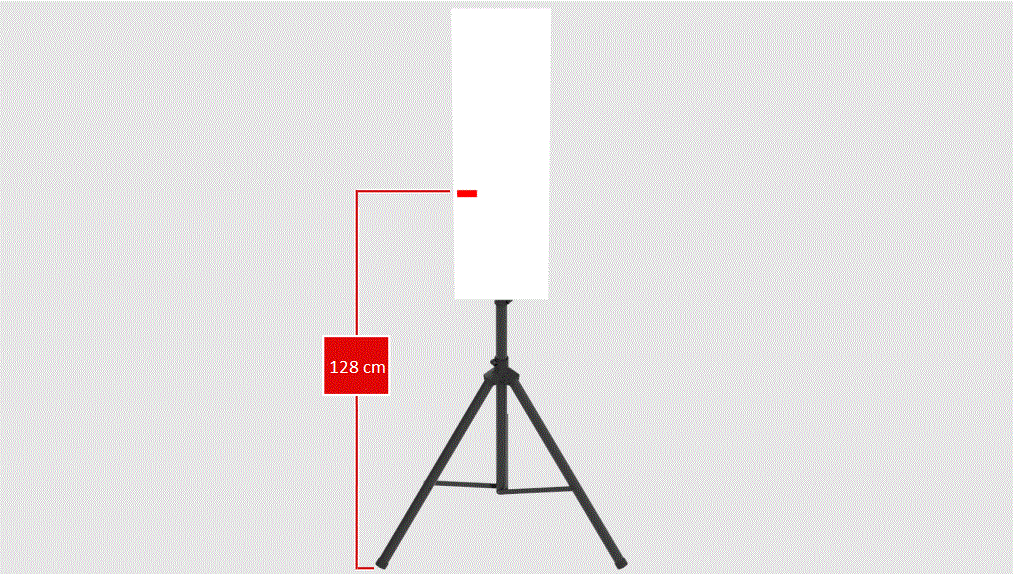

  5. Apply a piece of red tape on the target so that the top of the tape is 128 cm from the ground.
    G00643958Courtesy of TESLA, INC.
    CAUTION: Do not use existing marks from previous verifications. Remove any existing tape. Measure and reapply new tape to ensure the tape is in the correct location.
