2018 Tesla Model 3 BaseFACTORY OEM SERVICE PROCEDURE

Adjust (Service Mode)

  1. Enable Service Mode through the touchscreen. See SERVICE MODE .
  2. Unlock the vehicle gateway for diagnostic communication. See GATEWAY (UNLOCK)
  3. Touch Driver Assist  (steering wheel icon) and then touch Cameras  .
  4. Touch Clear Camera Calibration  , select ForwardFacing  , and then touch Run  .
  5. Touch Close  when the routine has passed.
  6. Touch Reset DAS  , and then touch Run  .
  7. Touch Close  when the routine has passed.
  8. Touch Camera Preview  and then touch Main  .
  9. Touch Pitch Verification  to add the verification lines on the display.
  10. Review the image on the touchscreen:

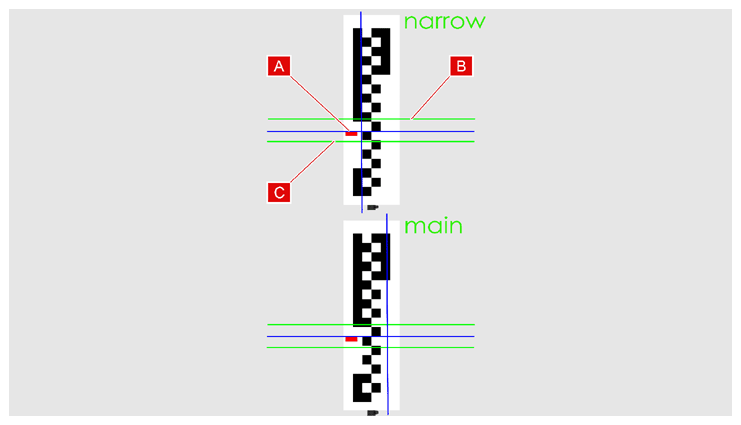

    Figure below: HW2.5 and HW3

    G14744096Courtesy of TESLA, INC.

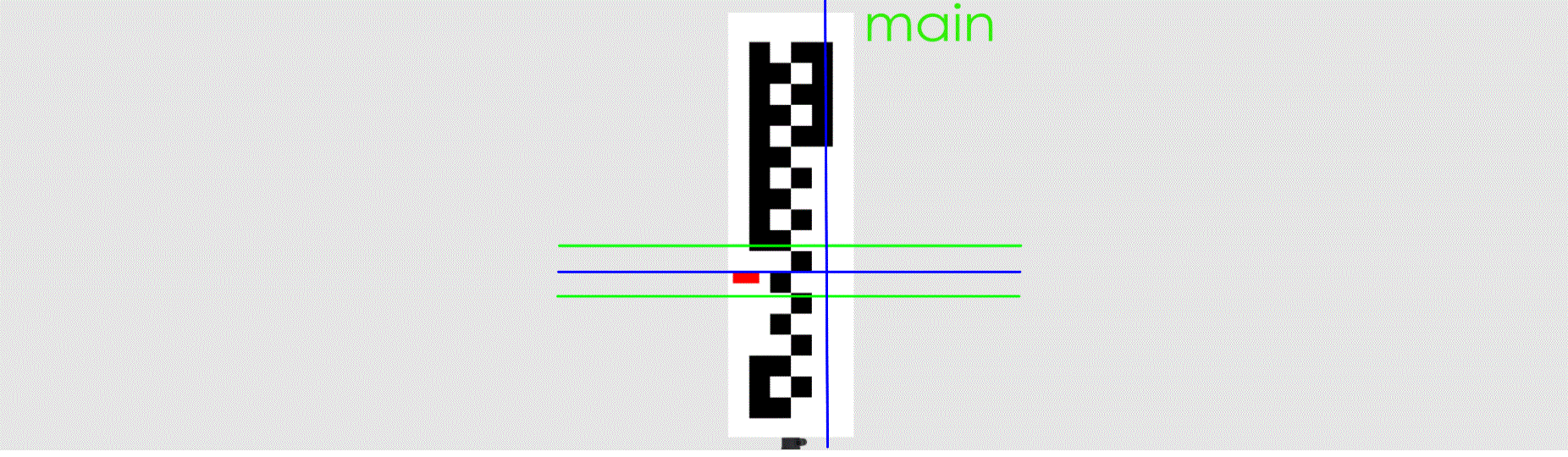

    Figure below: HW4

    G00643959Courtesy of TESLA, INC.
    NOTE: The top of the red tape (A) should coincide with the blue horizontal line. However, if the top of the red tape is between the green lines, that is sufficient.
    • If the top of the red tape (A) is between the two green lines (B and C), the forward facing camera is within calibration pitch specifications. Go to step 15.
    • If the top of the red tape (A) is not between the two green lines (B and C), the forward facing camera needs adjustment. Continue to the next step to adjust the camera.
  11. HW2.5 and HW3 only:  Repeat steps  8,  9, and  10 for Narrow camera.
  12. Remove the rear view mirror. See MIRROR - REAR VIEW - REMOVE AND REPLACE .

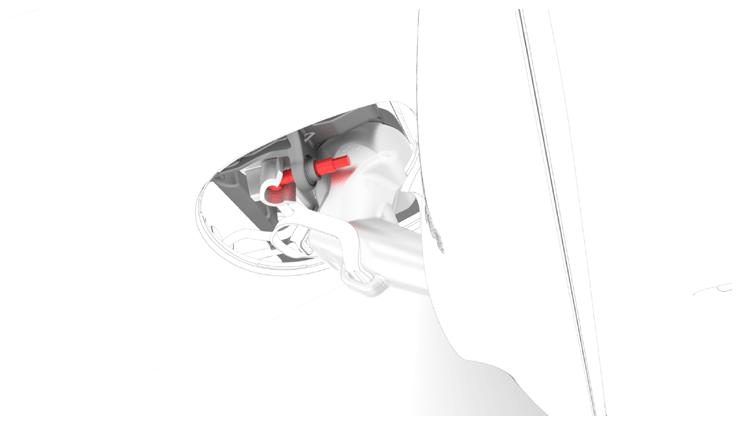

  13. Use a pitch adjustment wrench to adjust the camera pitch so that the top of the red tape will be between the 2 green lines.
    NOTE: Rotating the wrench clockwise pitches the camera up, and counterclockwise pitches the camera down conversely. 1 full rotation of the wrench can adjust the pitch 0.5 - 1.5 degrees.
    G14744097Courtesy of TESLA, INC.
  14. Install the rear view mirror. See MIRROR - REAR VIEW - REMOVE AND REPLACE .
  15. Touch Controls  (vehicle icon), Service Mode  and then touch Exit Service Mode  .
  16. Remove the target from the front of the vehicle.
  17. The vehicle needs to be driven by the customer to complete the calibration procedure.
    NOTE: Self-calibration can take up to 100 miles (160 km) of manual driving, depending upon the road type and condition. Until self-calibration is complete, the message "Autopilot Features Currently Unavailable: Manual Driving Required While Camera Is Calibrating" is displayed if an attempt is made to engage an Autopilot feature.
