2018 Tesla Model 3 BaseFACTORY OEM SERVICE PROCEDURE
Sensor - Radar - Front - Remove and Replace: Install

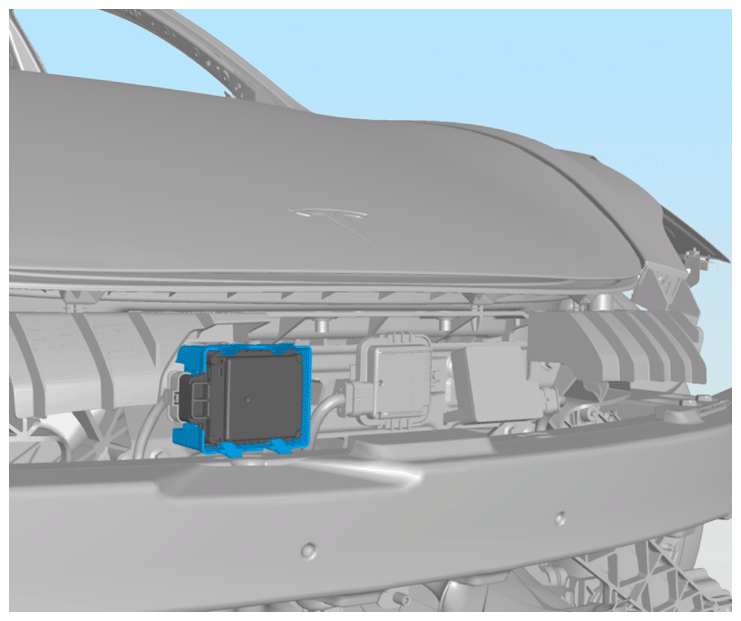

- Install the front radar sensor into the bracket.

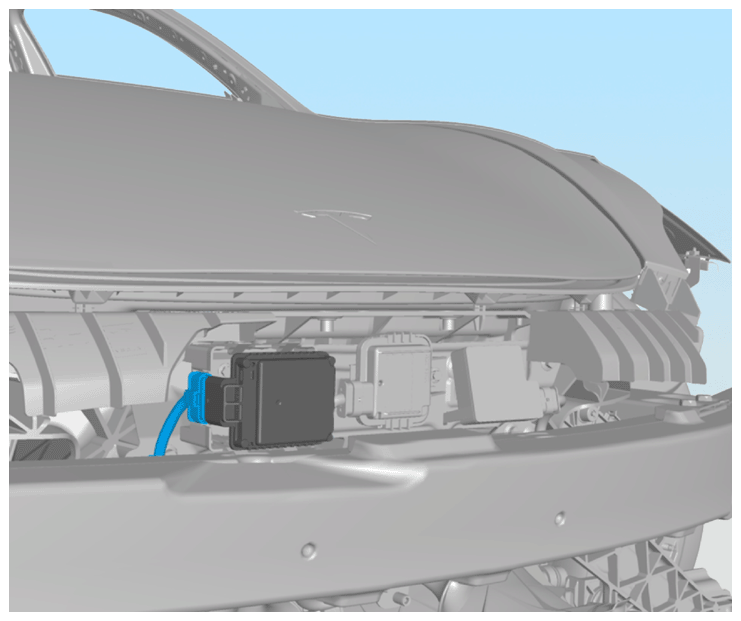

- Connect the front radar sensor electrical connector.

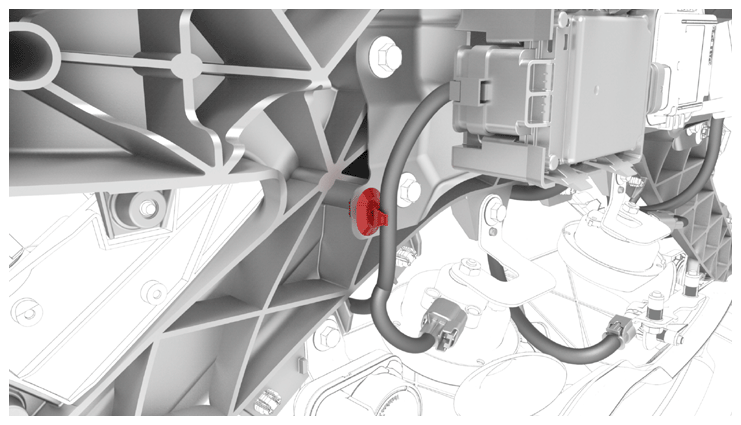

- Connect the front radar sensor wiring harness to the front end carrier clip.
- Install the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .
- Reinstall the vehicle firmware. See SOFTWARE REINSTALL - TOUCHSCREEN .
- Check the vehicle wheel alignment, and adjust if necessary. See FOUR WHEEL ALIGNMENT CHECK .
- Perform the front radar sensor calibration procedure. See SENSOR - RADAR - FRONT (CALIBRATION) .
