2018 Tesla Model 3 BaseFACTORY OEM SERVICE PROCEDURE
Module - HomeLink Transmitter - Remove and Replace: Install

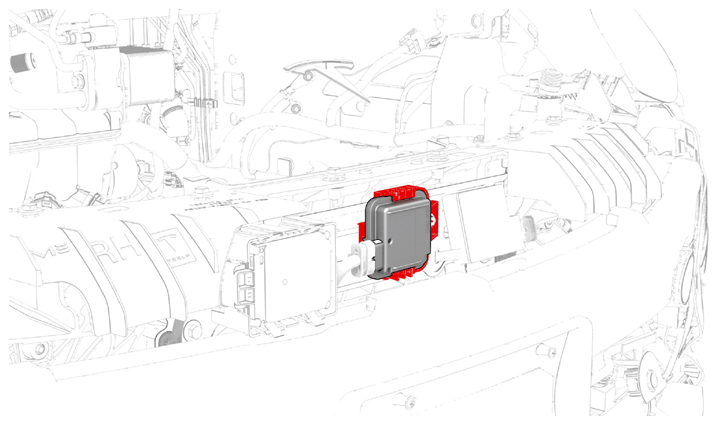

- Install the HomeLink transmitter module on the bracket.
- Connect the electrical connector to the HomeLink transmitter module.
- Install the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .
- Reconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
- Connect a laptop with Toolbox 3 to the vehicle.
- In Toolbox, click the Actions tab, type "HOMELINK" in the search field, click on TEST-SELF_ VCFRONT_X_HOMELINK and then select Run .
- Disconnect the laptop from the vehicle.
