Main Fuel Level Sensor
Reference: FUEL LEVEL SENSOR REMOVAL AND INSTALLATION

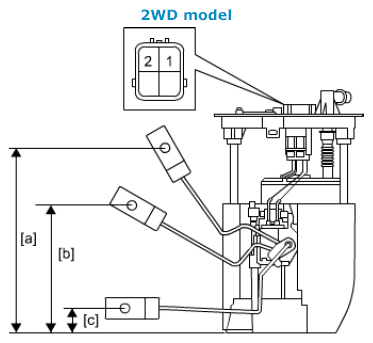

Check resistance between terminals (1) and (2) at each float position [a], [b] and [c].
If measured resistance is out of specification, replace fuel level sensor.
Fuel level sensor resistance
Standard
| Float position | Resistance | |
|---|---|---|
| [a] | 2WD: 147.7 mm (5.815 in.) | 38.0 - 42.0 Ω |
| 4WD: 145.6 mm (5.732 in.) | 19.0 - 21.0 Ω | |
| [b] | 2WD: 98.3 mm (3.87 in.) | 150.0 - 170.0 Ω |
| [c] | 2WD: 16.5 mm (0.650 in.) | 276.7 - 283.3 Ω |
| 4WD: 26.7 mm (1.05 in.) | 114.6 - 117.2 Ω | |
