2013 Suzuki Kizashi Base, Standard TransFACTORY OEM SERVICE PROCEDURE
VIN Registration

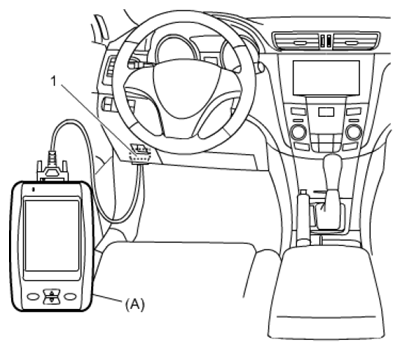

- With ignition mode of keyless push start system in "OFF", connect SUZUKI scan tool to DLC (1) located on underside of instrument panel at driver's seat side.
Special Tool
- SUZUKI scan tool (SUZUKI-SDT)
- Check VIN shown on the left side of the instrument panel.
- Push engine switch to change the ignition mode to "ON".
- Select "VIN Registration" mode of SUZUKI scan tool.
- Register VIN according to the instructions indicated on the SUZUKI scan tool.NOTE: For further details, refer to the operators manual for SUZUKI scan tool.
- Before completing VIN registration, confirm that VIN data indicated on SUZUKI scan tool is correct. If not, re-register VIN data into ECM correctly.
