2013 Suzuki Kizashi Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Registered VIN Data Check

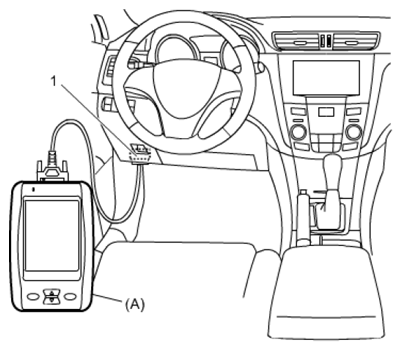

- With ignition mode of keyless push start system in "OFF", connect SUZUKI scan tool to DLC (1) located on underside of instrument panel at driver's seat side.
Special Tool
- SUZUKI scan tool (SUZUKI-SDT)
- Push engine switch to change ignition mode to "ON".
- Select "VIN Registration" mode of SUZUKI scan tool.
- Confirm whether code of 17 digits displayed on SUZUKI scan tool is corresponding to VIN shown on the left side of the instrument panel. If displayed VIN does not correspond to instrument panel VIN, register VIN data into ECM referring to VIN REGISTRATION .
- Push "EXIT" button of SUZUKI scan tool.
