2013 Suzuki Kizashi Base, Standard TransFACTORY OEM SERVICE PROCEDURE
MAF Sensor
- Remove MAF and IAT sensor, see MAF AND IAT SENSOR REMOVAL AND INSTALLATION .

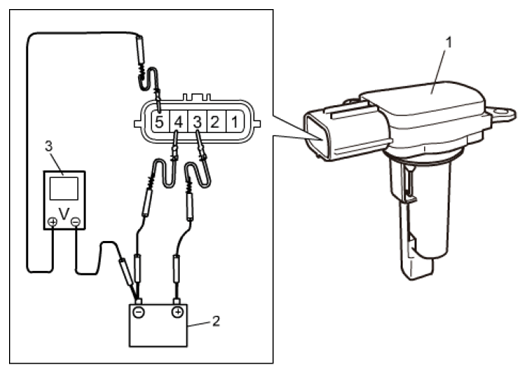

- Connect battery (2) and voltmeter (3) to MAF and IAT sensor (1) as shown in figure.

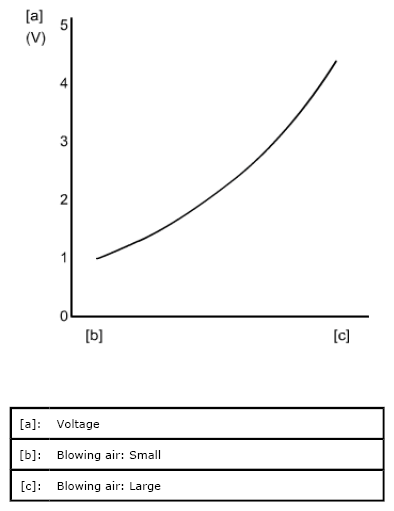

- Check that voltage varies depending on amount of blowing air as the following graph.
If faulty condition is found, replace MAF and IAT sensor, see MAF AND IAT SENSOR REMOVAL AND INSTALLATION .
