OCV (Oil Control Valve) Inspection
- Remove OCV. See OCV (OIL CONTROL VALVE) REMOVAL AND INSTALLATION

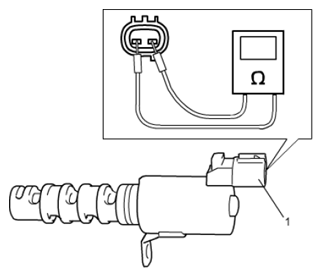

- Check resistance between terminals of OCV connector (1).
If check result is not satisfactory, replace OCV.
Oil control valve resistance
6.7 - 7.7 Ω (at 20 °C (68 °F))

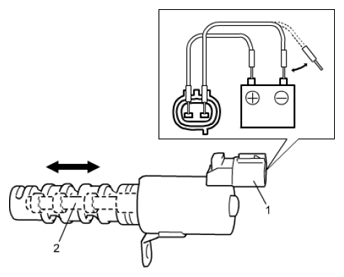

- Connect battery to OCV connector (1) as shown in figure, check operating sound at the same time operate spool valve (2).
