Engine Coolant Temperature (ECT) Sensor Inspection
Reference: ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL AND INSTALLATION

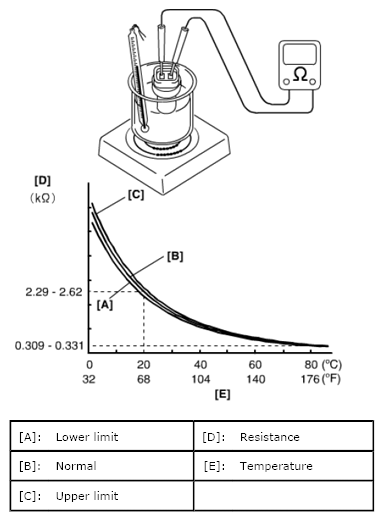

Immerse temperature sensing part of ECT sensor in water (or ice) and measure resistance between sensor terminals while heating water gradually.
If measured resistance doesn't show such characteristic as shown in figure, replace ECT sensor.
