Engine Control Module (ECM) Removal and Installation: Installation
Reverse removal procedure noting the following:
- Connect connectors to ECM as follows.
- Make sure that lock lever of ECM connector is unlock position.
- Insert ECM connectors to ECM until it stops with unlocked lock lever.

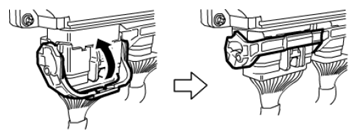

- Lock ECM connectors securely by pulling its lock lever up.
