Performance Check
- Remove metal particles on end face of CMP sensor, if any.

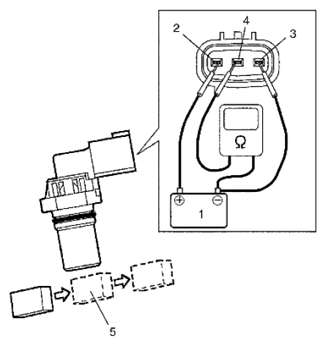

- Arrange 12 V battery (1) and connect its positive terminal to "Vin" terminal (2) and negative terminal to "Ground" terminal (3) of sensor. Then using ohmmeter, measure resistance between "Vout" terminal (4) of sensor and negative terminal of battery by passing magnetic substance (iron) (5) while keeping approximately 1 mm (0.03 in.) gap with respect to end face of CMP sensor.
If resistance does not vary as specified below, replace CMP sensor.
CMP sensor resistanceΒ
Resistance varies from less than 220 Ξ© (ON) to infinity (OFF) or from infinity (OFF) to less than 220 Ξ© (ON)Β
