2012 Suzuki SX4 BaseFACTORY OEM SERVICE PROCEDURE
ESP® Hydraulic Unit/Control Module Assembly Removal and Installation: Removal
- Disconnect negative (-) cable from battery.

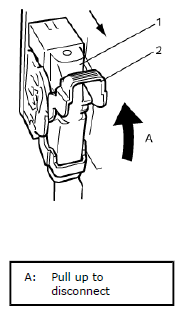

- Disconnect ESP® hydraulic unit/control module assembly connector (1) by pull up the lock lever (2).
- Using special tool, loosen flare nuts (1) and disconnect brake pipes (2) from ESP® hydraulic unit/control module assembly (3).
Special Tool
(A): 09950-78220
NOTE: Put bleeder plug cap or the like onto pipe to prevent fluid from spilling. Do not allow brake fluid to get on painted surfaces.
