2012 Suzuki SX4 BaseFACTORY OEM SERVICE PROCEDURE
Power Window Sub Switch Inspection
- Remove front door trim from door panel, refer to Step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .
- Remove power window sub switch from door trim.

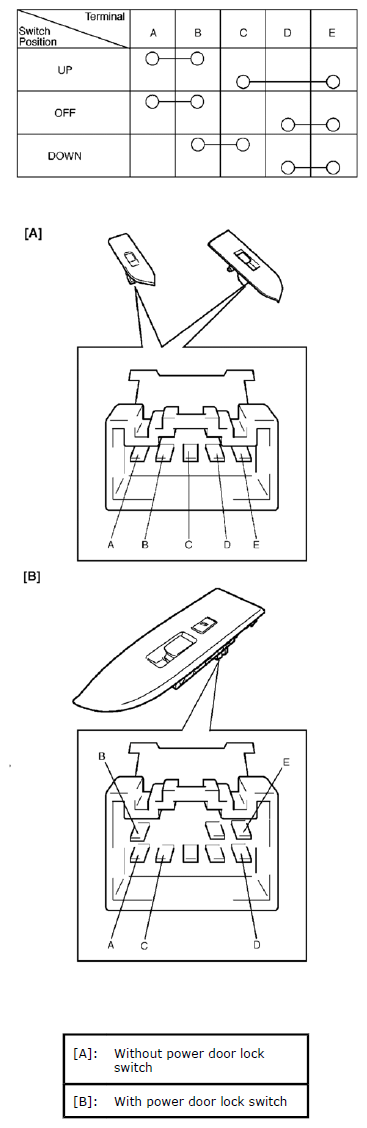

- Check for continuity between terminals at each switch condition.
If check result is not as specified, replace switch.
