OCV (Oil Control Valve) Inspection
- Remove oil control valve from timing chain cover, and check oil control valve for clog or damage.

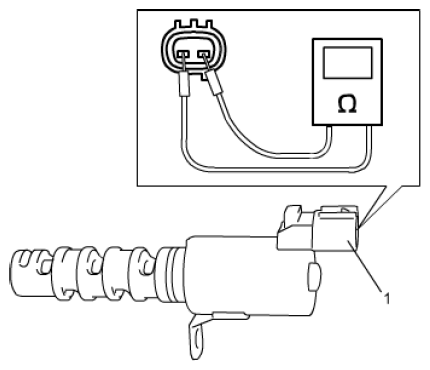

- Check resistance between terminals of oil control valve connector (1).
If check result is not satisfactory, clean or replace OCV.
Oil control valve resistanceÂ
6.7 - 7.7 Ω (at 20 ° C (68 °F)Â

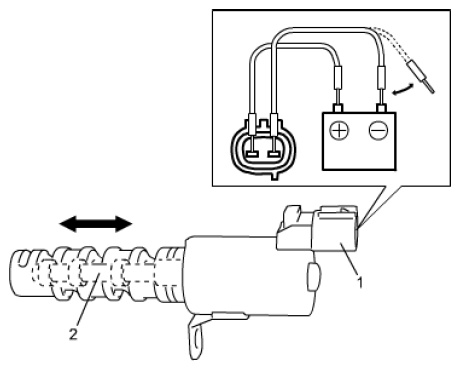

- Connect battery to OCV connector (1) as shown in figure, check operating sound at the same time operate spool valve.
