CAN Communication System for Electronic Stability Program Description: Notes

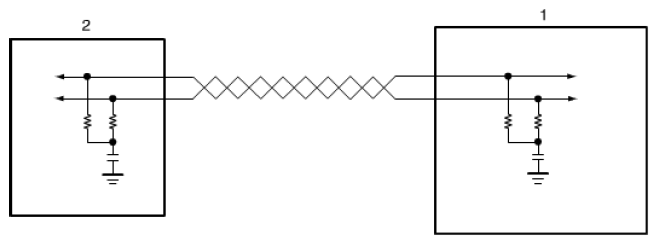

There is CAN communication system only for ESP® control module (1) and yaw rate/G sensor assembly (2).
This CAN communication system is independent from other control modules.
ESP® communicates control data with yaw rate/G sensor assembly as follows.
