2012 Suzuki Equator BaseFACTORY OEM SERVICE PROCEDURE
Auxiliary Audio/Video Input Control Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

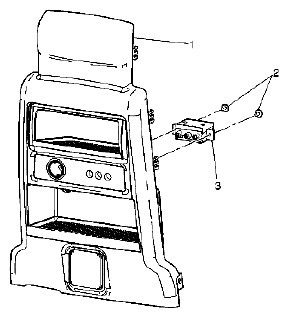

Fig 1: Identifying Rear Console Trim Plate Assembly, Auxiliary Audio/Video Input Control Assembly & Screws
AUXILIARY AUDIO/VIDEO INPUT CONTROL REPLACEMENT REFERENCE
| Callout | Component Name |
|---|---|
| 1 | Rear Console Trim Plate Assembly Refer to CONSOLE REAR TRIM PLATE REPLACEMENT . |
| 2 | Auxiliary Audio/Video Input Control Assembly Screw (Qty: 2)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 2 N.m (18 lb in) |
| 3 | Auxiliary Audio/Video Input Control Assembly |
