2012 Suzuki Equator BaseFACTORY OEM SERVICE PROCEDURE

Structure Identification

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

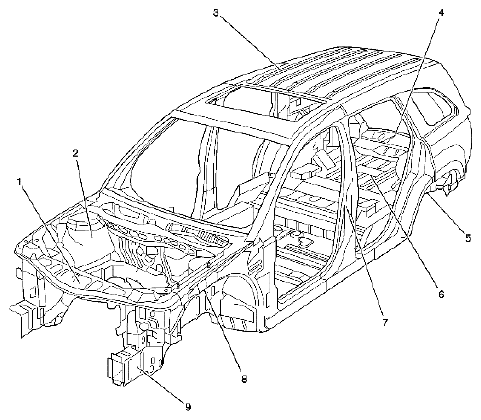

Fig 1: Identifying Structure Components

Courtesy of SUZUKI OF AMERICA CORP.

STRUCTURE SPECIFICATIONS

Number	Description	Material	Procedure
1	Radiator Support Assembly	Mild Steel	TIE BAR REPLACEMENT
2	Front Wheelhouse Assembly	Mild Steel	FRONT WHEELHOUSE REPLACEMENT FRONT WHEELHOUSE EXTENSION REPLACEMENT
3	Roof Panel	Mild Steel	ROOF OUTER PANEL REPLACEMENT
4	Rear End Panel	Mild Steel	BODY REAR END PANEL REPLACEMENT
5	Rear Rail	Mild Steel	REAR RAIL REPLACEMENT RAIL REPLACEMENT - REAR SECTION
6	Rear Floor Panel	Mild Steel	REAR COMPARTMENT FLOOR PANEL SECTIONING
7	Body Side Outer	Mild Steel	FRONT HINGE PILLAR BODY SECTIONING CENTER PILLAR SECTIONING QUARTER PANEL SECTIONING
8	Upper Rail	Mild Steel	FRONT COMPARTMENT UPPER SIDE RAIL REPLACEMENT
9	Front Rail	High Strength	FRONT COMPARTMENT FRONT RAIL REPLACEMENT FRONT COMPARTMENT FRONT SIDE LOWER INNER RAIL REPLACEMENT FRONT COMPARTMENT FRONT SIDE LOWER INNER RAIL SECTIONING UNDERBODY OUTER FRONT SIDE RAIL REPLACEMENT UNDERBODY OUTER FRONT SIDE RAIL SECTIONING
