2012 Suzuki Equator BaseFACTORY OEM SERVICE PROCEDURE
Transmission Control Boot Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

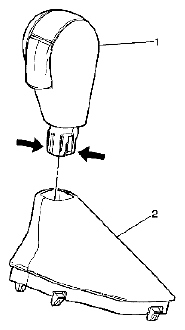

CALLOUT AND COMPONENT NAME REFERENCE
| Callout | Component Name |
|---|---|
| 1 | Shift Control Knob. Tip: Remove the shift control lever knob. Refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT . |
| 2 | Shift Control Lever Boot Tip: Depress the retainer tabs on both sides of the shift control knob in order to release the shift control boot. |
