2012 Suzuki Equator BaseFACTORY OEM SERVICE PROCEDURE

IPDM E/R (Intelligent Power Distribution Module Engine Room): Removal and Installation: Removal

CAUTION: Never remove the relays from the IPDM E/R. Tampering with the relays may cause additional incidents with the vehicle.

Disconnect negative battery terminal.

Remove IPDM E/R upper cover.

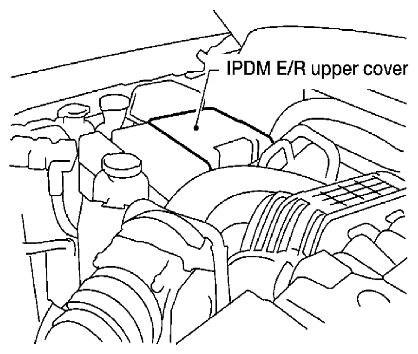

Fig 1: Identifying IPDM E/R Upper Cover
Courtesy of SUZUKI OF AMERICA CORP.
Release 2 clips and pull IPDM E/R up from case.

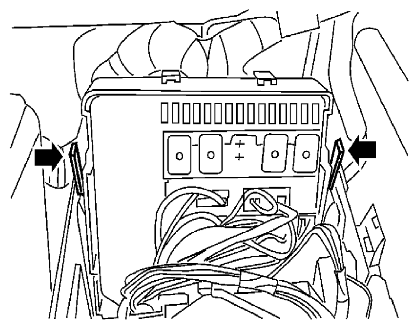

Fig 2: Locating IPDM E/R Case Clips
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect IPDM E/R connectors and remove the IPDM E/R.
