2011 Suzuki SX4 2WD L4-2.0LFACTORY OEM SERVICE PROCEDURE
Timing Cover
Tightening torque
Timing chain cover bolt* (M8 bolt) (a) 25 Nm (2.5 kgf-m, 18.5 lbf-ft)
Timing chain cover bolt* (M10 bolt) (b) 55 Nm (5.6 kgf-m, 40.5 lbf-ft)
Note

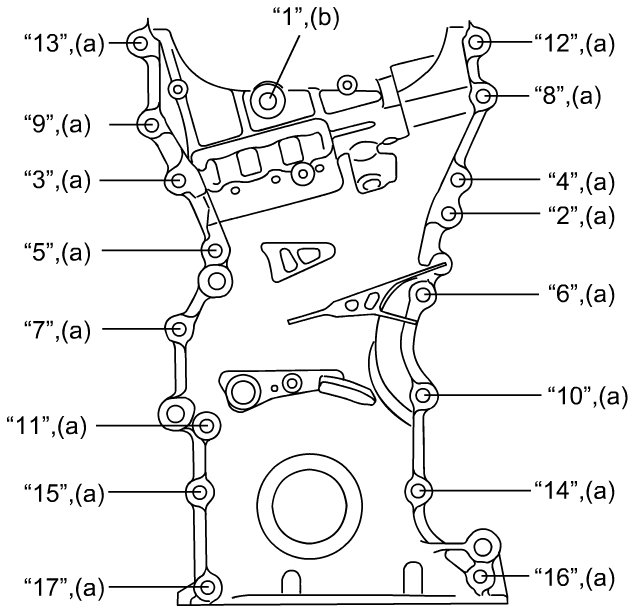

Tighten timing chain cover bolts to specified torque in numerical order ("1" - "17") evenly and gradually.
