2011 Suzuki SX4 2WD L4-2.0LFACTORY OEM SERVICE PROCEDURE
System Specifications

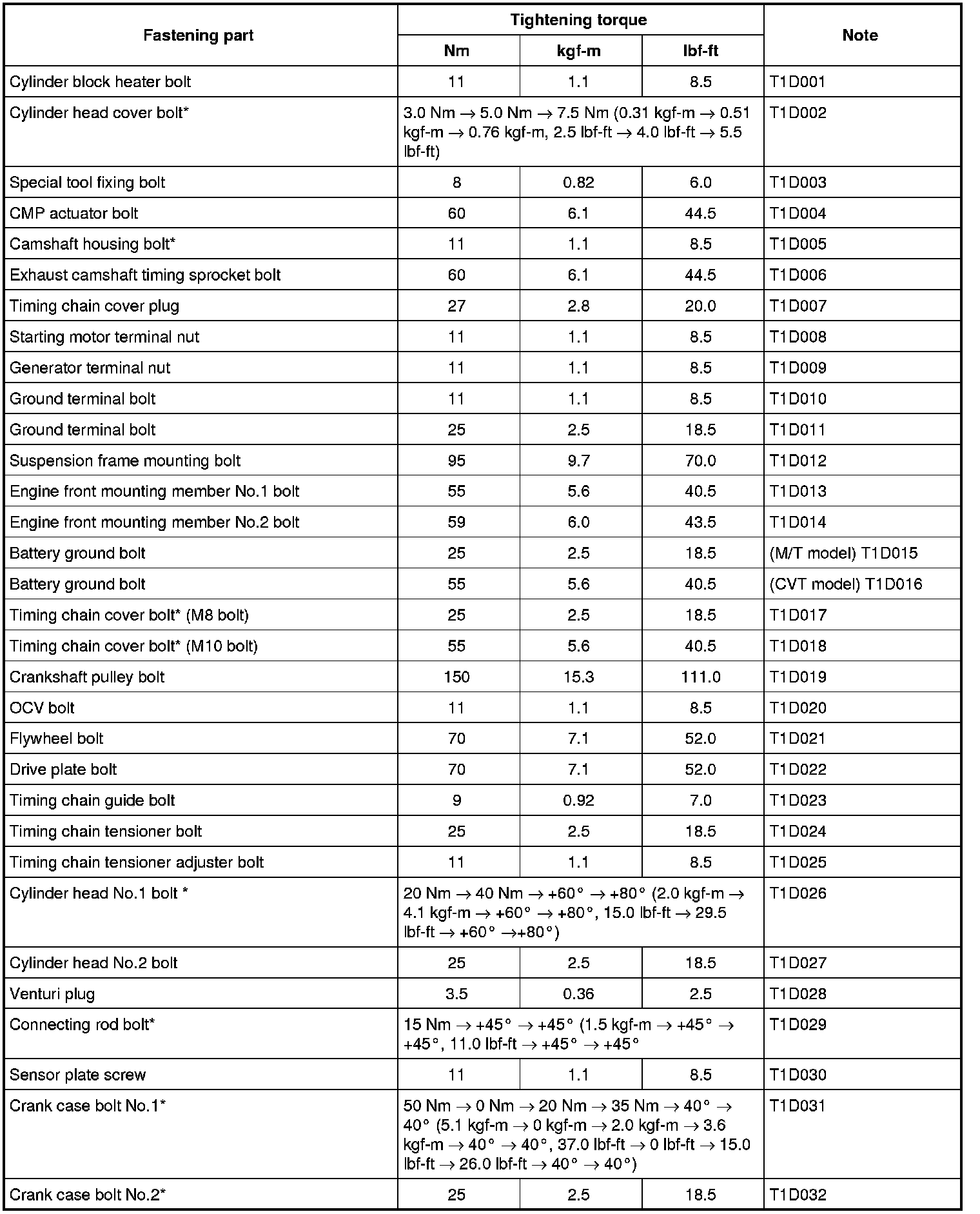

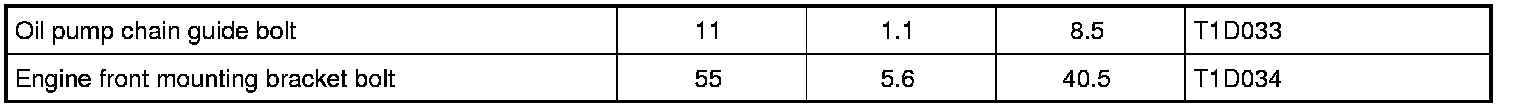

Tightening Torque Specifications
NOTE:
For fastener(s) with * (asterisk) below, refer to the specified procedure in "Repair Instructions".
NOTE:
The tightening torque(s) also specified in:
Air Cleaner Components Air Cleaner Components
Cylinder Head Cover Components Cylinder Head Cover Components
Camshaft and Tappet Components Camshaft and Tappet Components
[1][2]Diagrams Engine Mountings Components
Timing Chain Cover Components Timing Chain Cover Components
Timing Chain and Chain Tensioner Components Timing Chain and Chain Tensioner Components
Valve and Cylinder Head Components Valve and Cylinder Head Components
Components Piston, Piston Ring and Connecting Rod Components
Components Main Bearing, Crankshaft and Cylinder Block Components
Reference:
For the tightening torques of fasteners not specified in this section, refer to Fastener Information Fasteners Information.
