2011 Suzuki SX4 2WD L4-2.0LFACTORY OEM SERVICE PROCEDURE

Mode 6 Data

OBD System Description

MODE $06 Data

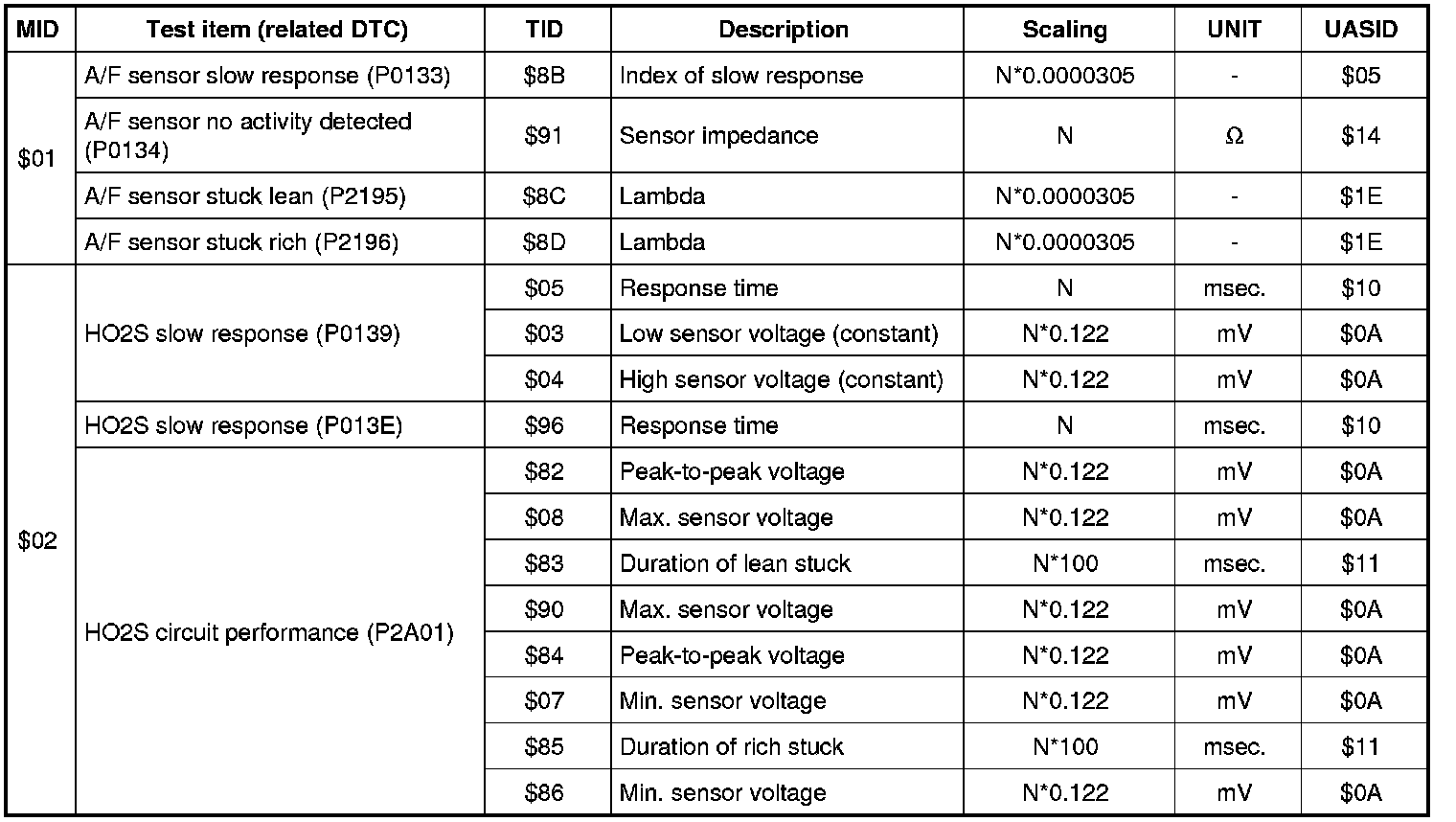

A/F Sensor and HO2S Monitor (EVAP Leak Check Model)

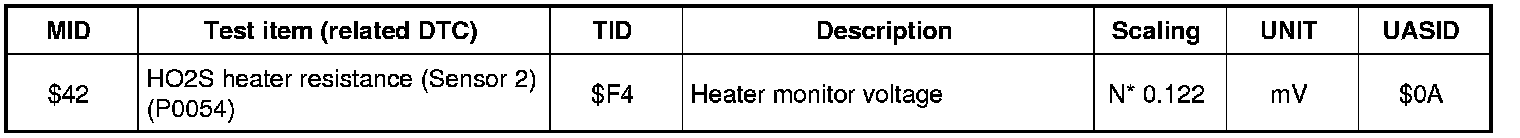

A/F Sensor Heater and HO2S Heater Monitor (EVAP Leak Check Model)

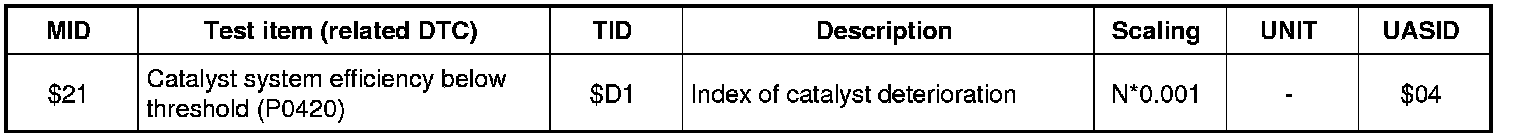

Catalyst Monitor (EVAP Leak Check Model)

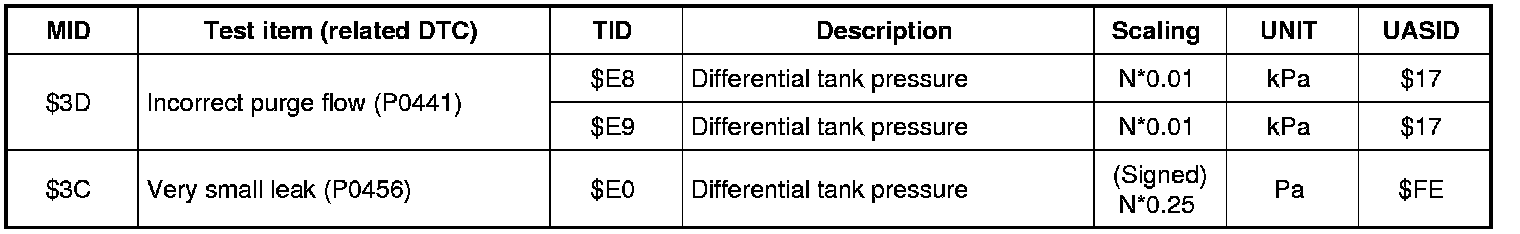

EVAP Control System Monitor (EVAP Leak Check Model)

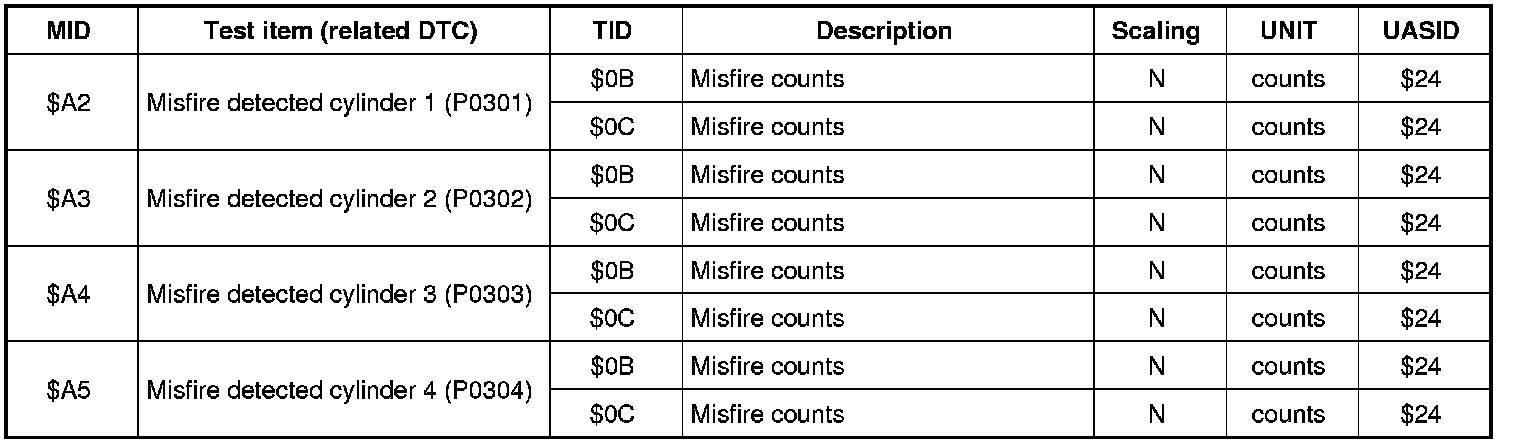

Misfire Monitor (EVAP Leak Check Model)
