2011 Suzuki SX4 2WD L4-2.0LFACTORY OEM SERVICE PROCEDURE
Engine Controls - Extended Cranking Time/Hard Starting
SX4
Section Title: Engine
TSB No. TS 1010271
Division: Automotive
Category: Technical
SUBJECT:
EXTENDED CRANKING TIME (HARD STARTING)
MODEL(S):
SX4 (RW420)
YEAR:
2010~2011
CONDITION:
The engine may experience an extended cranking time during start up.
CAUSE:
Various timing conditions may exist intermittently.
CORRECTION:
DO NOT replace the ECM! Please reprogram (reflash) the ECM with updated software that has been improved for better starting performance. The SEPS database files installed on the PC or laptop being used must be version 2.011.0731 or later.

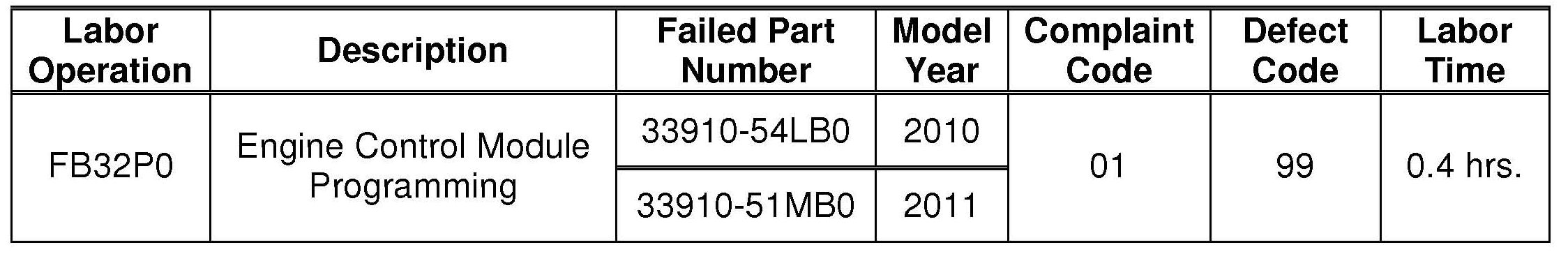

WARRANTY INFORMATION:

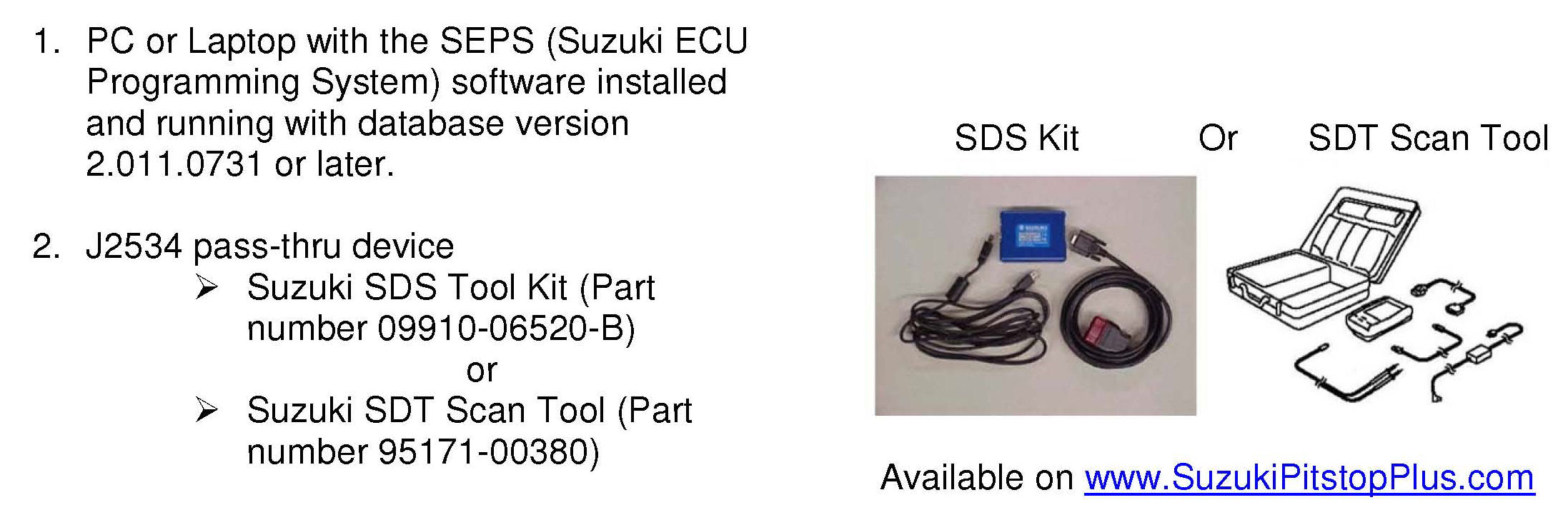

Required Tools

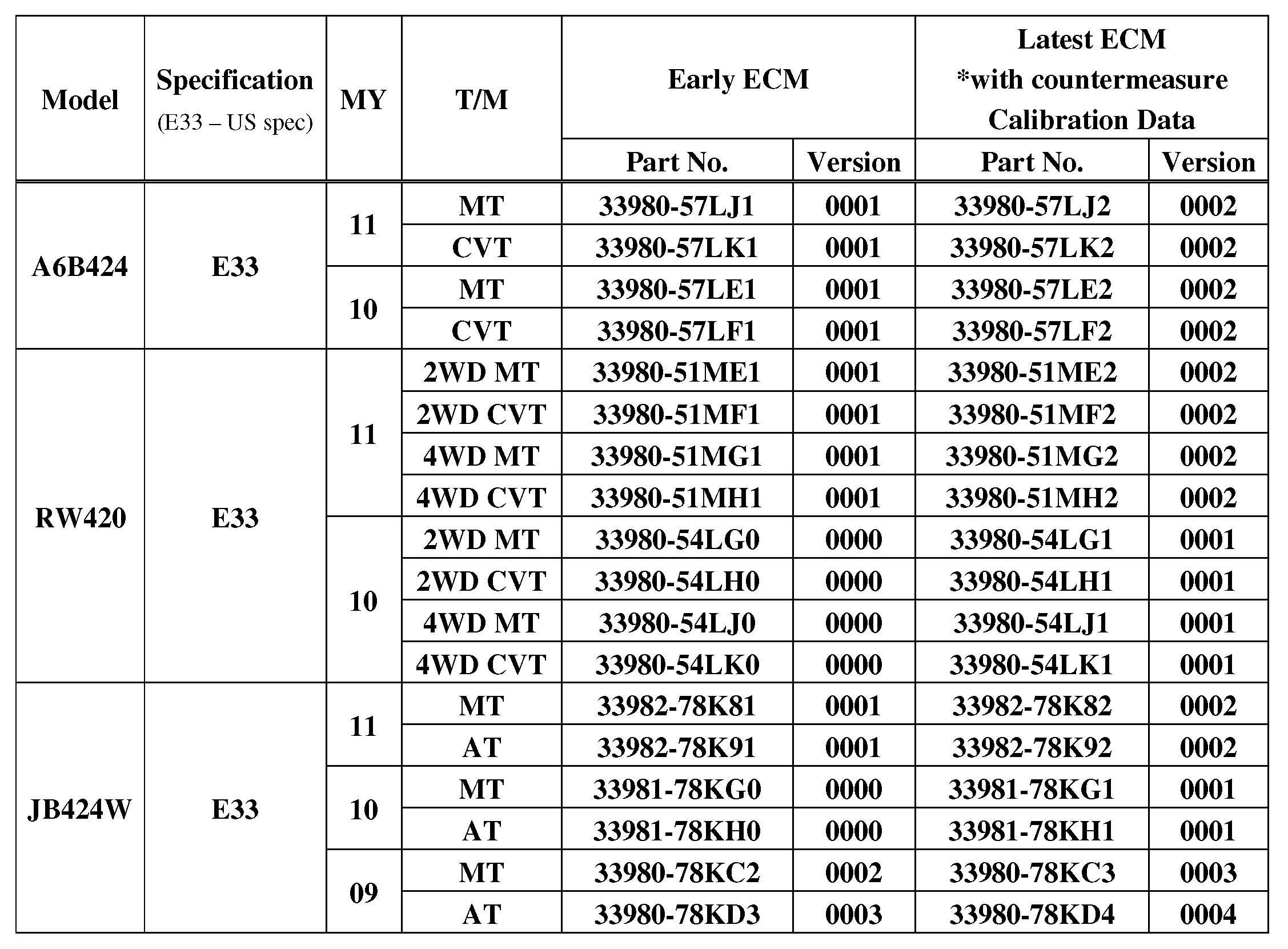

ECU Model List

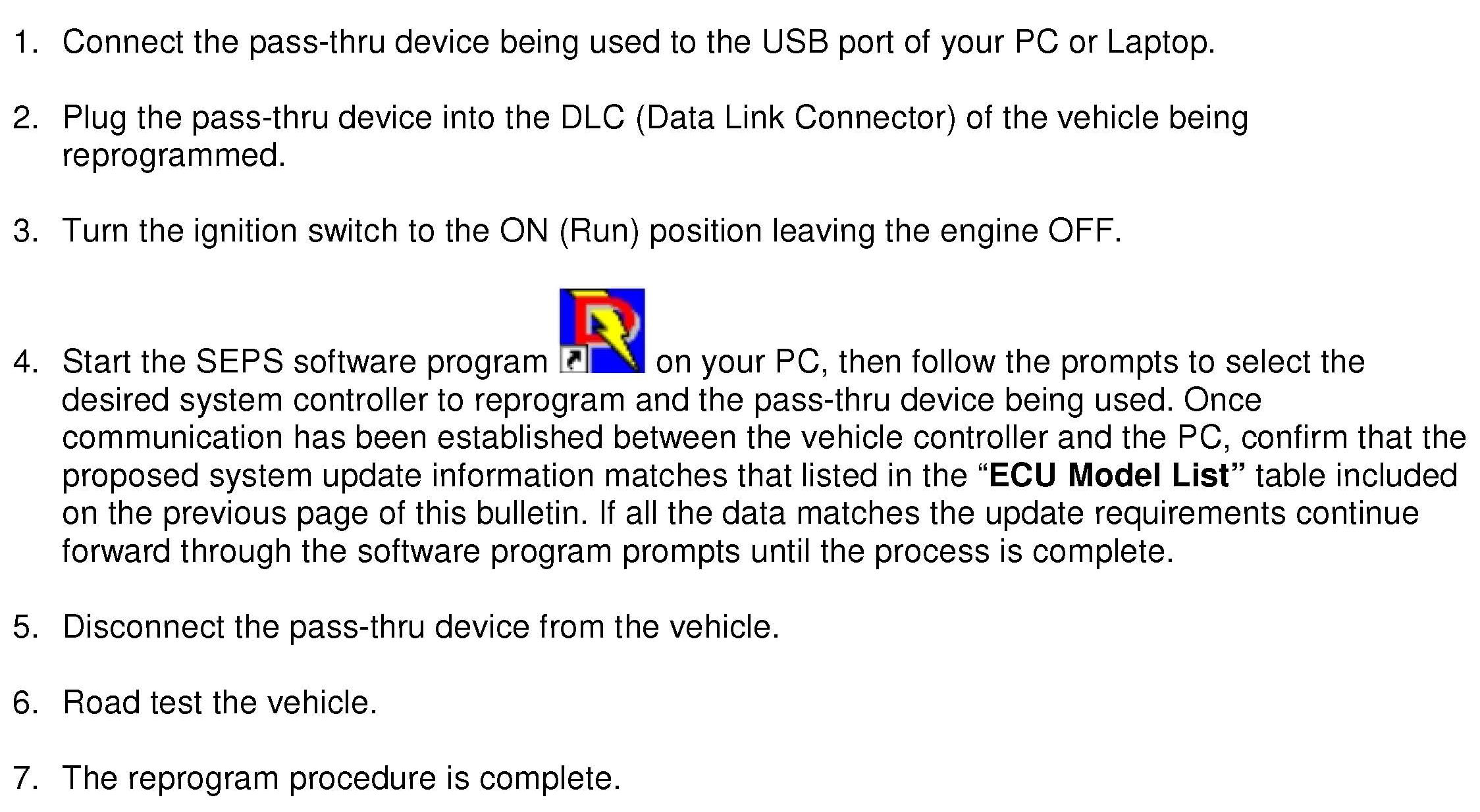

SERVICE ACTION

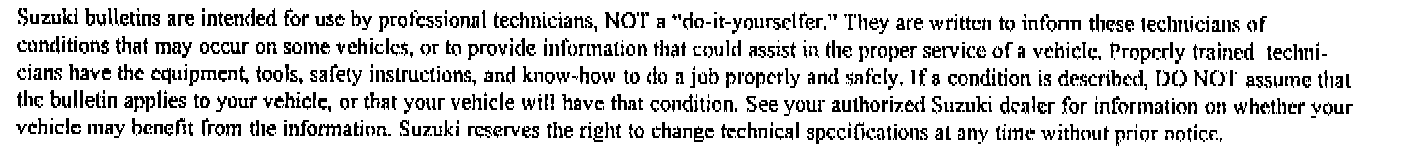

Disclaimer
