2011 Suzuki SX4 2WD L4-2.0LFACTORY OEM SERVICE PROCEDURE
BCM Power Circuit and Ground Circuit Check
BCM Power Circuit and Ground Circuit Check

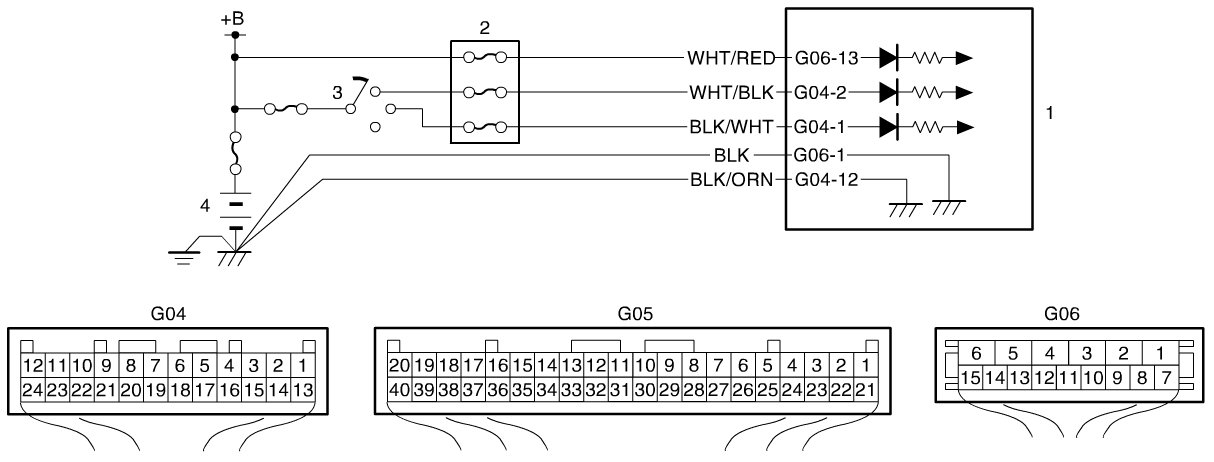

Wiring Diagram
Troubleshooting
1. Fuse check
Turn ignition switch to OFF position.
Check circuit fuses for condition.
Are circuit fuses in good condition?
YES
Go to Step 2.
NO
Replace fuse and check for short circuit to ground.
2. Power supply circuit check
Disconnect connectors from BCM.
Check for proper connection to BCM connector at terminal "G06-13".
If OK, then measure voltage between "G06-13" terminal of BCM connector and vehicle body ground.
Is voltage 10 - 14 V?
YES
Go to Step 3.
NO
Repair power supply circuit.
3. Power supply circuit check
Check for proper connection to BCM connector at terminals "G04-1" and "G04-2".
If OK, turn ignition switch to ON position.
Measure voltage between following terminals.
- Between "G04-1" terminal of BCM connector and vehicle body ground
- Between "G04-2" terminal of BCM connector and vehicle body ground
Is each voltage 10 - 14 V?
YES
Go to Step 4.
NO
Repair power supply circuit.
4. Ground circuit check
Turn ignition switch to OFF position.
Check for proper connection to BCM connector at terminals "G06-1" and "G04-12".
If OK, then measure resistance between following terminals.
- Between "G06-1" terminal of BCM connector and vehicle body ground
- Between "G04-12" terminal of BCM connector and vehicle body ground
Is each resistance 2 ohms or less?
YES
BCM power supply circuit and ground circuit are in good condition.
NO
Repair ground circuit.
