ECM (Engine Control Module) Removal and Installation: Installation
Reverse removal procedure noting the following.
- Connect connectors to ECM as follows.

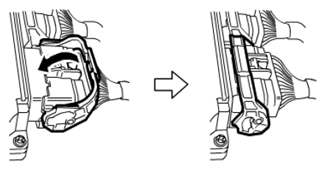

- Make sure that lock lever of ECM connector is in unlock position.
- Insert ECM connectors to ECM until it stops.
- Lock ECM connectors securely by setting their lock levers in their locked position.
