CMP (Camshaft Position) Sensor Inspection
Reference: CMP (CAMSHAFT POSITION) SENSOR REMOVAL AND INSTALLATION
- Remove CMP sensor. See CMP (CAMSHAFT POSITION) SENSOR REMOVAL AND INSTALLATION .
- Check the following.
- Check that O-ring (1) is free from damage.
- Check that end face of sensor and signal rotor tooth are free from any metal particles and damage.
- Check CMP sensor as follows.
If faulty condition is found, replace CMP sensor.

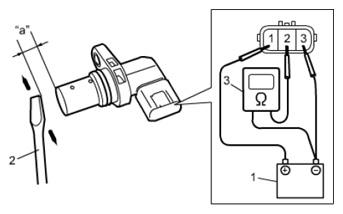

- Connect battery (1) and ohmmeter (3) to CMP sensor as shown in figure.
- Check that CMP sensor resistance varies as specified below by passing magnetic substance (iron) (2).
If faulty condition is found, replace CMP sensor.
NOTE: Be sure to keep approximately 1 mm (0.03 in) gap "a" between magnetic substance (iron) and end face of CMP sensor.CMP sensor resistance
Resistance varies between less than 220 Ω (ON) and infinity (OFF)
