2011 Suzuki Equator BaseFACTORY OEM SERVICE PROCEDURE

Error Code 7156 When Attempting To Program Or Reprogram With Pass-Thru Reprogramming Software Version 1.9.0.2 (TS 06 06257)

Publication date: 2007-06-25
Reference number: TS 06 06257

ERROR CODE 7156 WHEN ATTEMPTING TO PROGRAM OR REPROGRAM WITH PASS-THRU REPROGRAMMING SOFTWARE VERSION 1.9.0.2

ERROR CODE 7156 WHEN ATTEMPTING TO PROGRAM OR REPROGRAM WITH PASS-THRU REPROGRAMMING SOFTWARE VERSION 1.9.0.2

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 06 06257, Date of Issue:  June 25, 2007
SUZUKI: 1996~ ALL
SECTION: General Info

CONDITION

Error code "[7156] Database search is failed" appears when programming or reprogramming.

CAUSE

Incorrect VIN number and/or software ID number entered.

CORRECTION

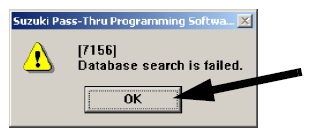

  1. Click the OK button on the error window.
    G07245712

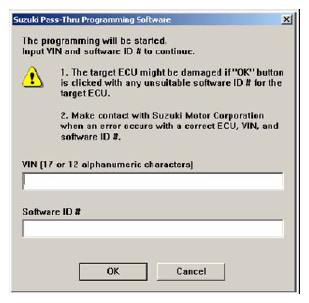

  2. Make sure the correct VIN number and software ID number is entered in the VIN entry window. Use the ECU list (found on Suzuki Pitstop) with the version number which matches the database version installed in your PC.
    G07245713

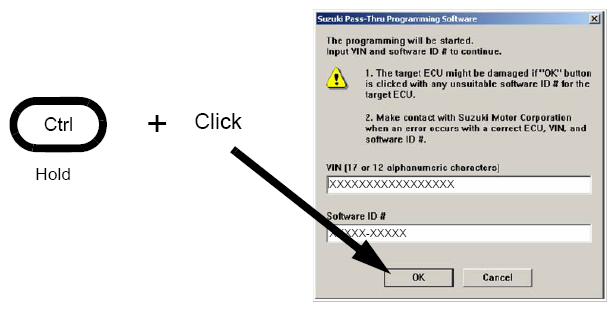

  3. Press and hold down the "Ctrl" key of your keyboard and click the "OK" button then release the "Ctrl" key. The Pass-Thru will continue normally.
    G07245714
