Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced as follows: INPUT 1 - 5 to "1 - 5" and OUTPUT 1 - 5 to "A - E".

Example 1: When a switch (TURN RH switch) is turned ON

• The circuit between INPUT 1 and OUTPUT 5 is formed when the TURN RH switch is turned ON.

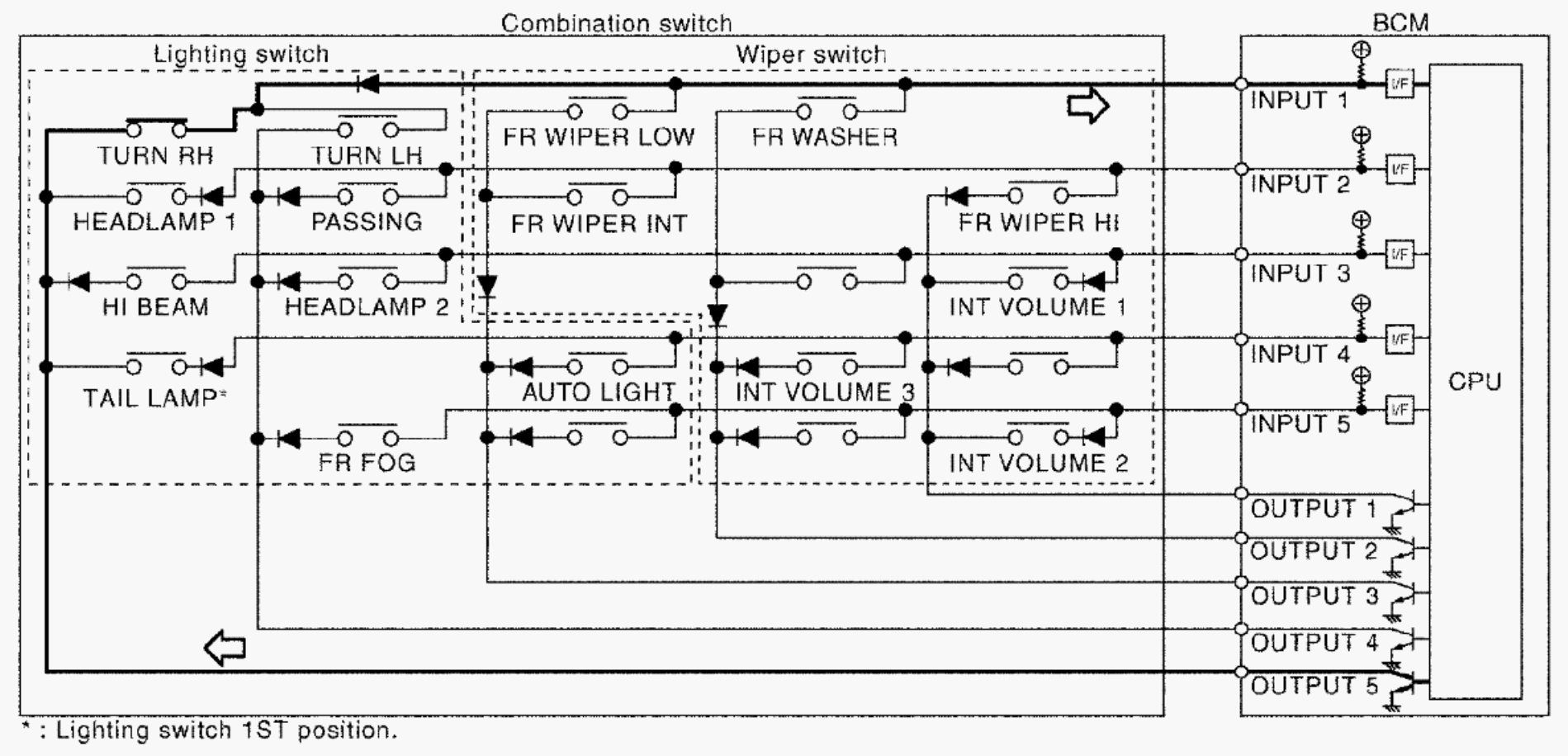

  Fig 1: Identifying Combination Switch Circuit

  Courtesy of SUZUKI OF AMERICA CORP.
• BCM detects the combination switch status signal "1E" when the signal of OUTPUT 5 is input to INPUT 1.
• BCM judges that the TURN RH switch is ON when the signal "1E" is detected.

  Example 2: When some switches (turn RH switch, front wiper LO switch) are turned ON

• The circuits between INPUT 1 and OUTPUT 5 and between INPUT 1 and OUTPUT 3 are formed when the TURN RH switch and FR WIPER LOW switch are turned ON.
  Fig 2: Identifying Combination Switch Circuit

  Courtesy of SUZUKI OF AMERICA CORP.
• BCM detects the combination switch status signal "1CE" when the signals of OUTPUT 3 and OUTPUT 5 are input to INPUT 1.
• BCM judges that the TURN RH switch and FR WIPER LOW switch are ON when the signal "1CE" is detected.
