2011 Suzuki Equator 2WD V6-4.0LFACTORY OEM SERVICE PROCEDURE
Timing Cover

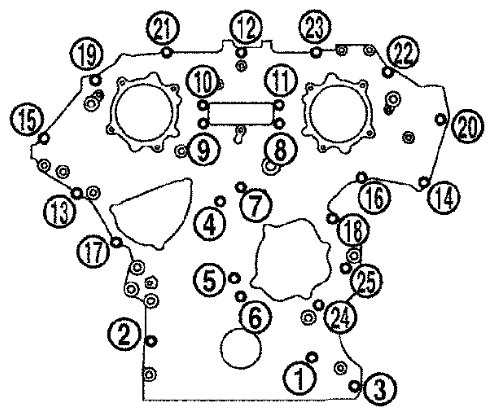

Front Timing Chain Case

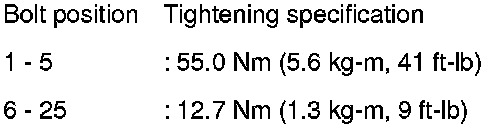

Bolt 1-5: 10 mm(0.39 in) 55.0 N.m (5.6 kg-m, 41 ft-lb)
Bolt 6-25: 6 mm(0.24 in) 12.7 N.m (1.3 kg-m, 9 ft-lb)
After all bolts are tightened, retighten them to the specified torque in numerical order as shown.

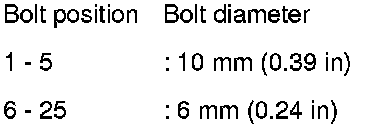

- There are two type of bolts.
