2011 Suzuki Equator 2WD V6-4.0LFACTORY OEM SERVICE PROCEDURE

System Specifications




Service Data and Specifications

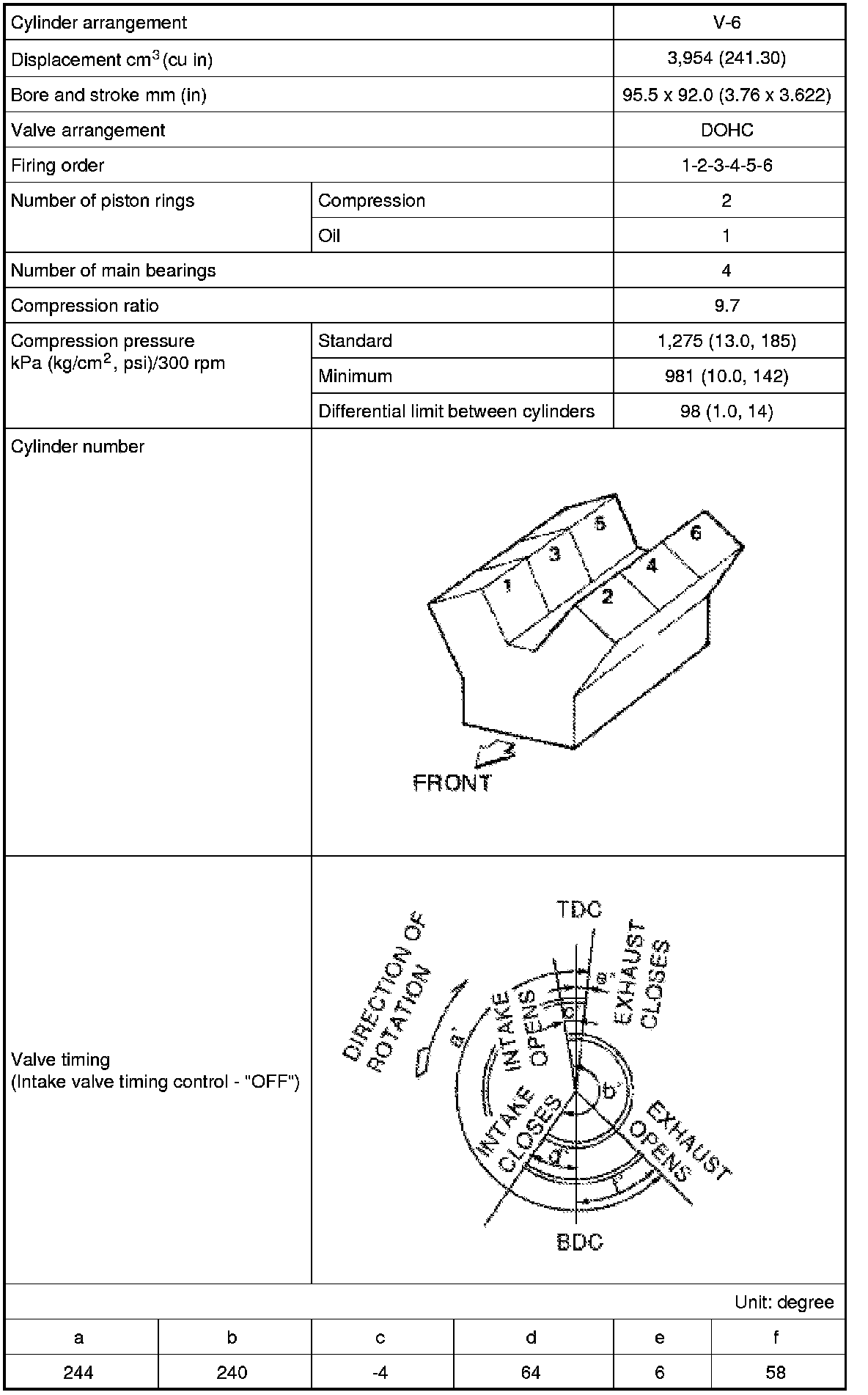

General Specifications

Factory service manual diagram





Drive Belt

Factory service manual diagram

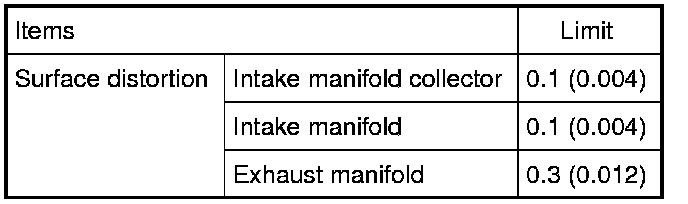

Intake Manifold Collector, Intake Manifold and Exhaust Manifold

Unit: mm (in)

Factory service manual diagram

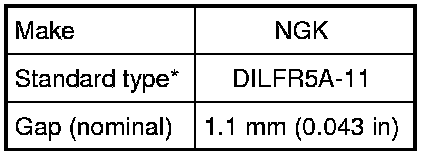

Spark Plug

Factory service manual diagram




*: Always check with the Parts Department for the latest parts information

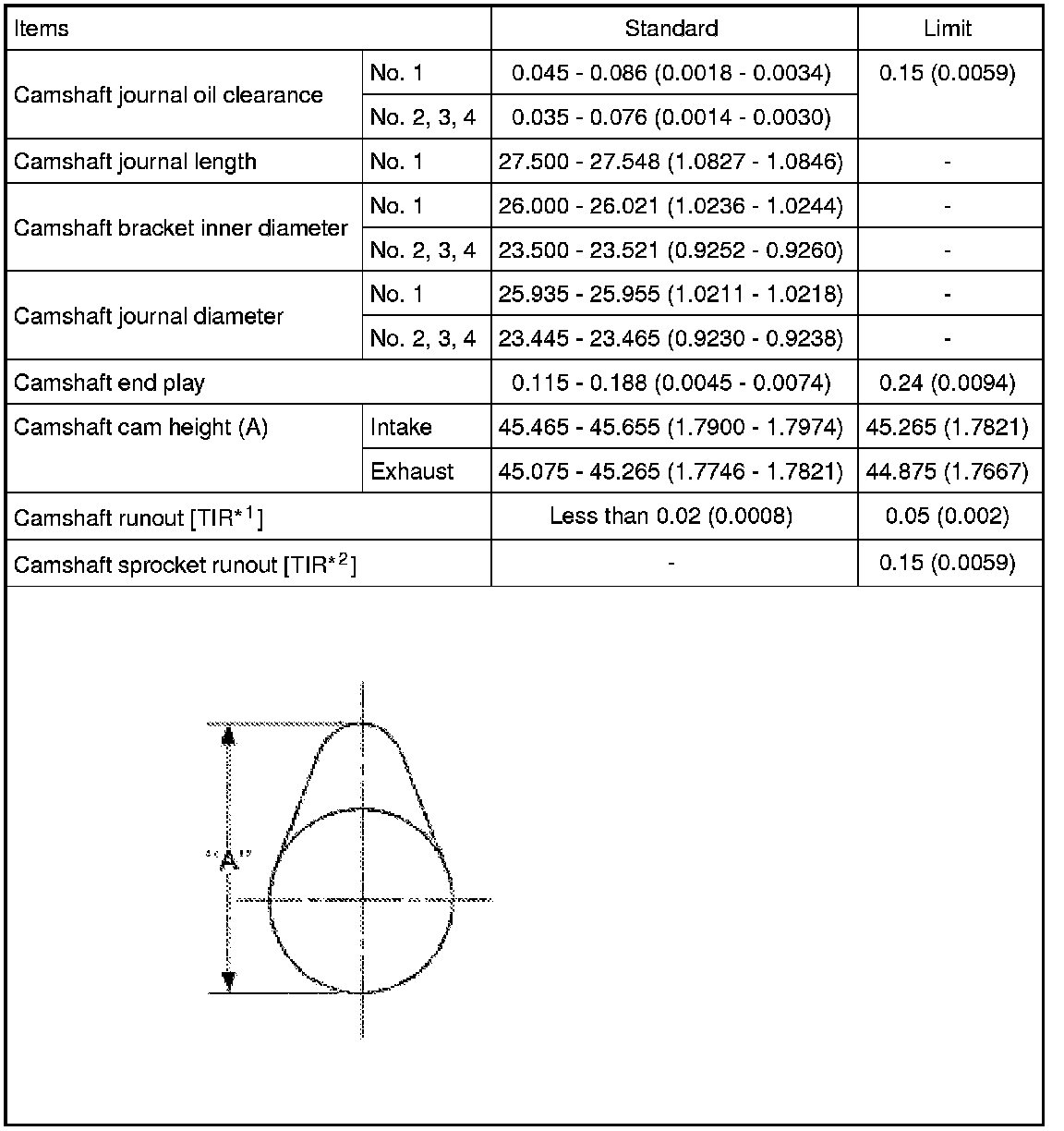

Camshaft and Camshaft Bearing

Unit: mm (in)

Factory service manual diagram





*1: Total indicator reading

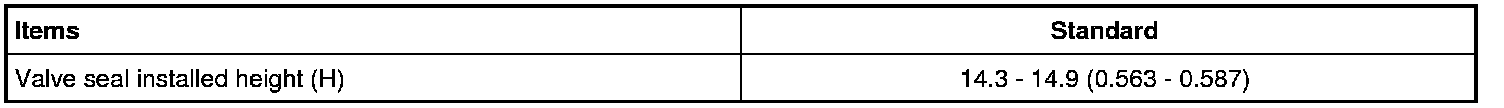

Valve Seal

Unit: mm (in)

Factory service manual diagram

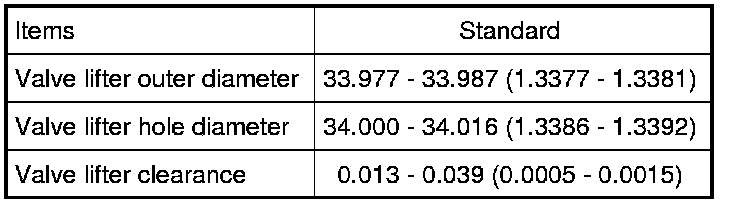

Valve Lifter

Unit: mm (in)

Factory service manual diagram

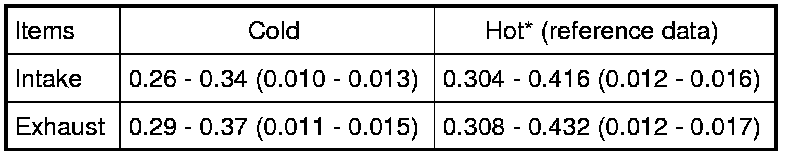

Valve Clearance

Unit: mm (in)

Factory service manual diagram





*: Approximately 80°C (176°F)

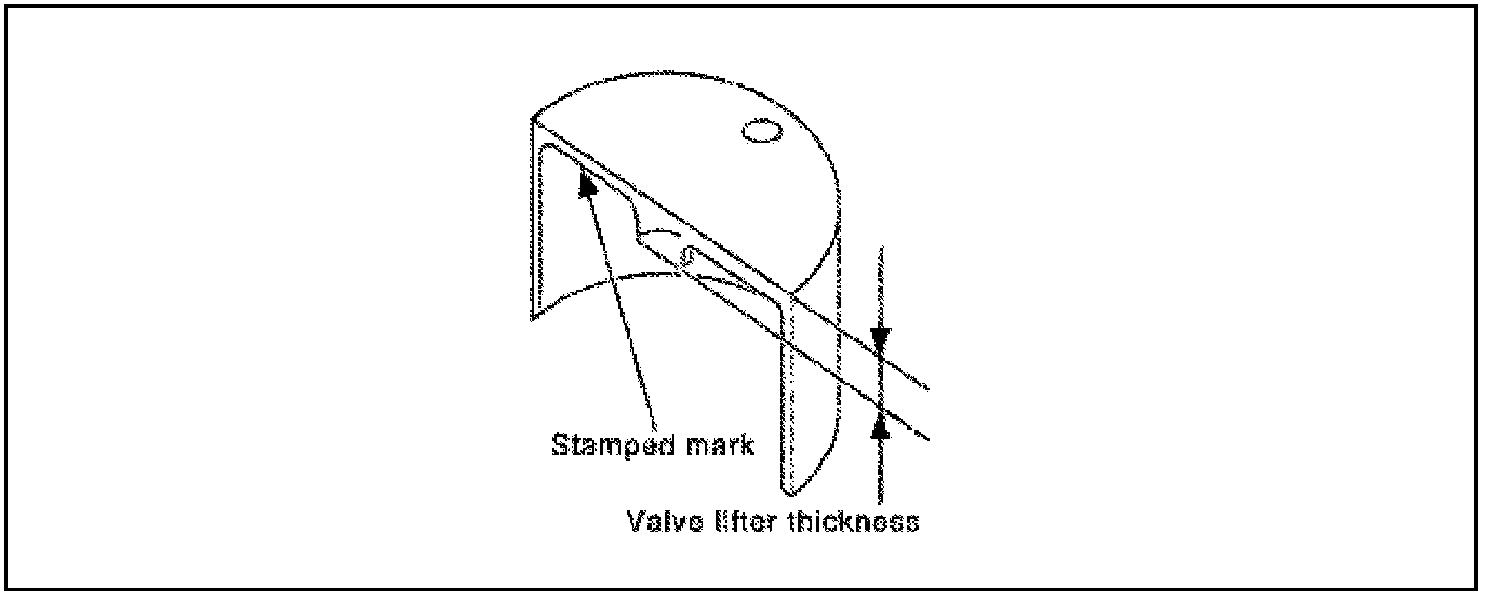

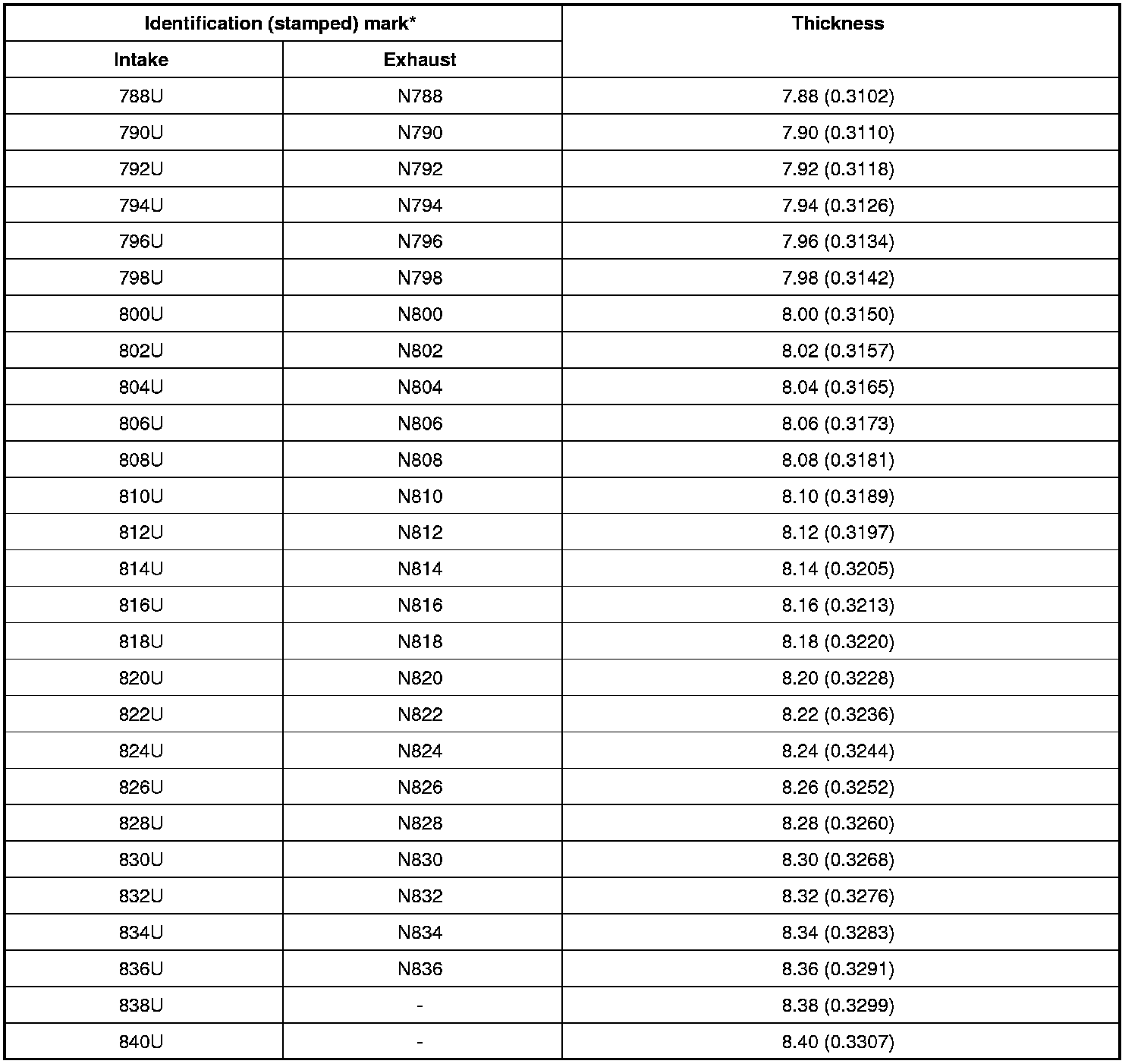

Available Valve Lifter

Unit: mm (in)

Factory service manual diagram




Factory service manual diagram





*: Always check with the Parts Department for the latest parts information

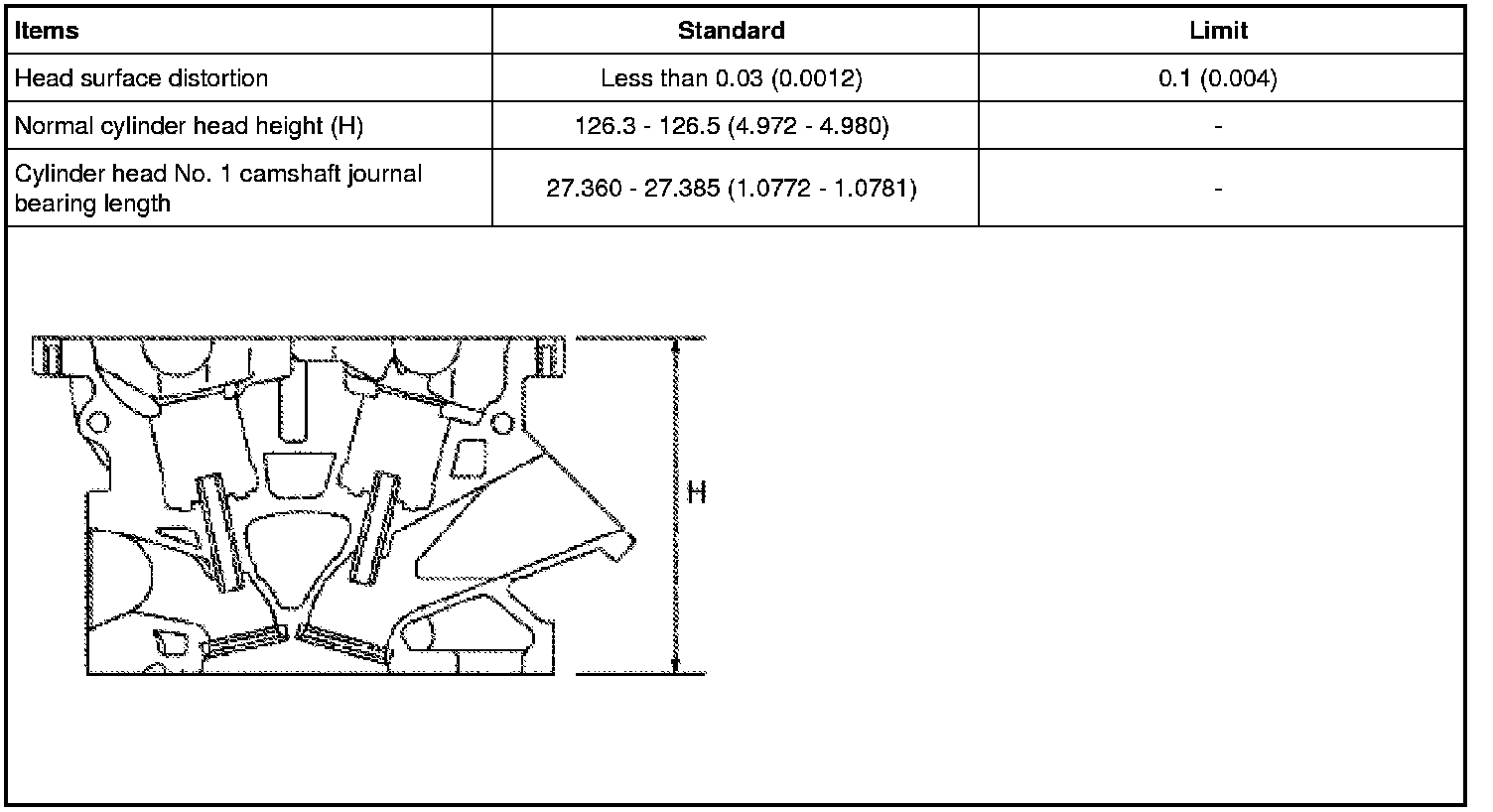

Cylinder Head

Unit: mm (in)

Factory service manual diagram

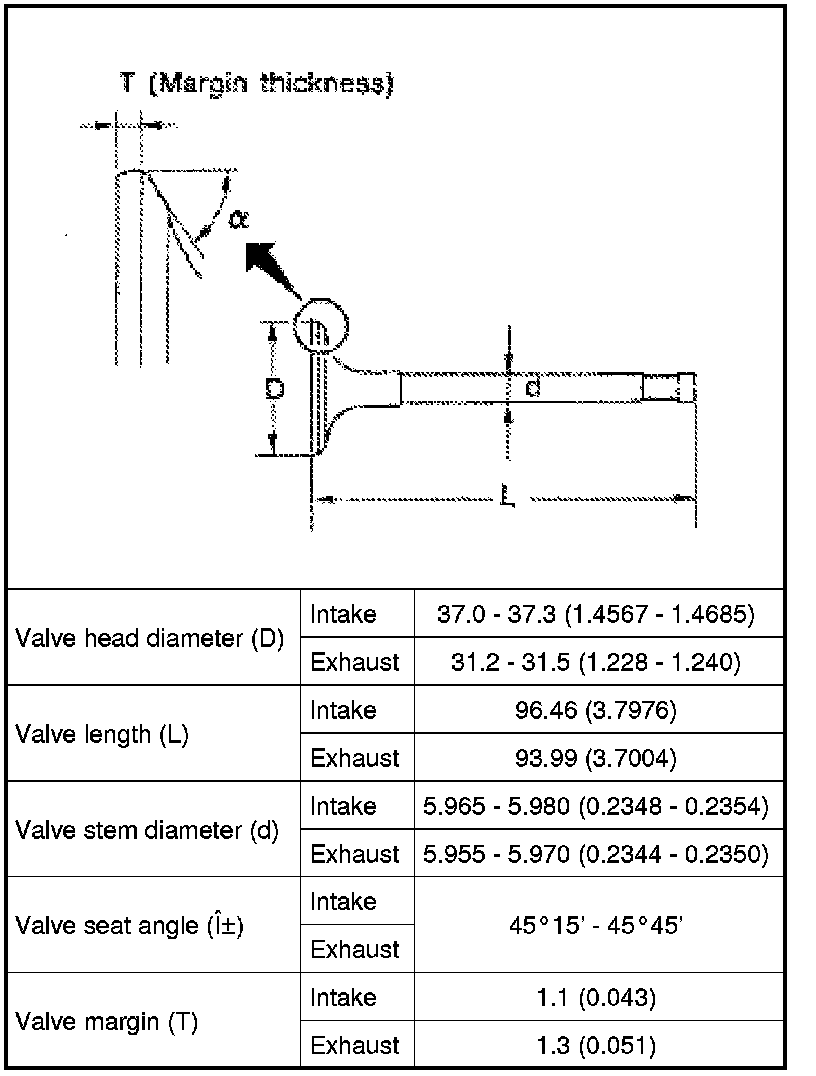

Valve Dimensions

Unit: mm (in)

Factory service manual diagram

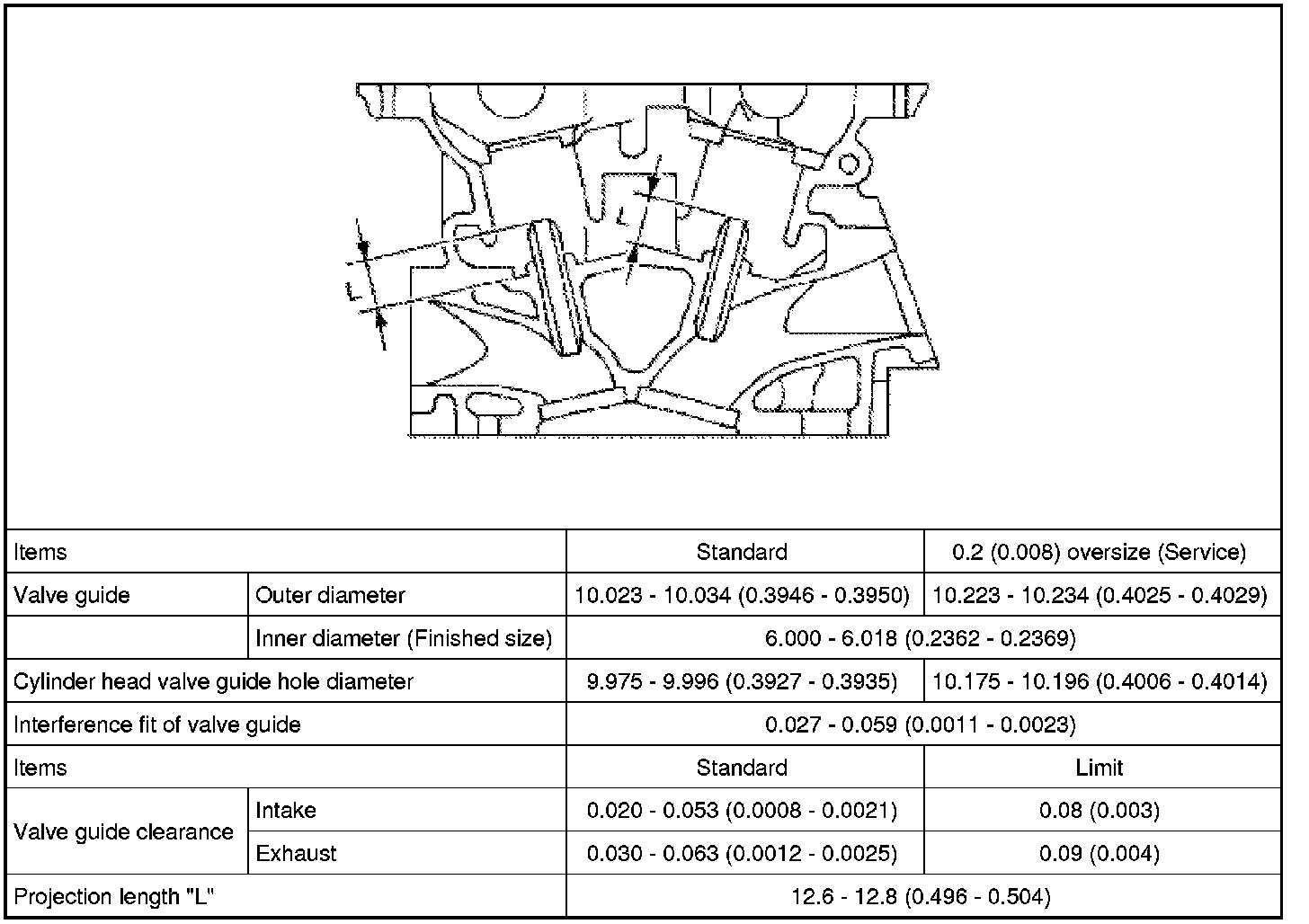

Valve Guide

Unit: mm (in)

Factory service manual diagram

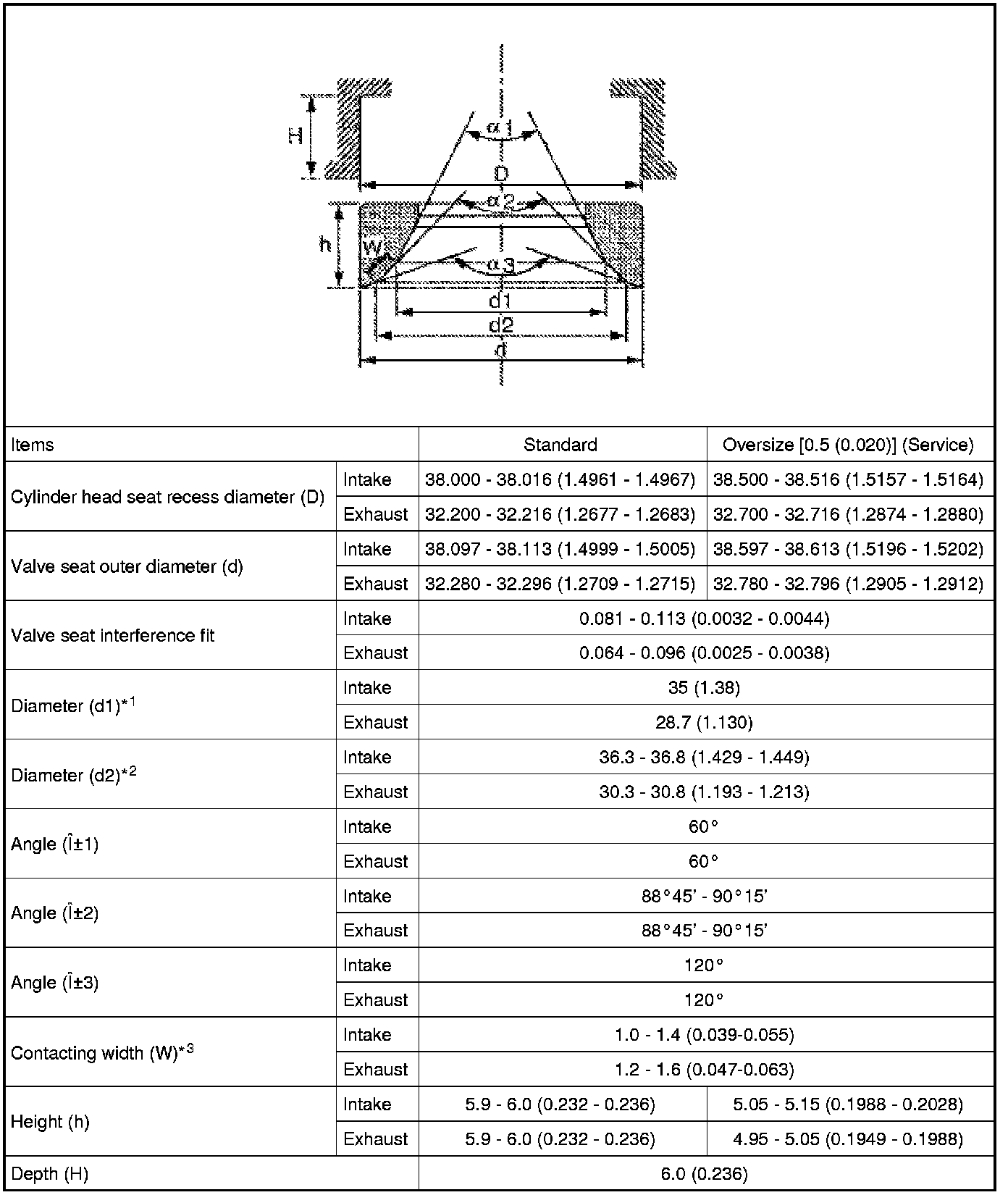

Valve Seat

Unit: mm (in)

Factory service manual diagram





*1: Diameter made by intersection point of conic angles (Ξ±1) and (Ξ±2)

*2
: Diameter made by intersection point of conic angles (Ξ±2) and (Ξ±3)

*3: Machining data

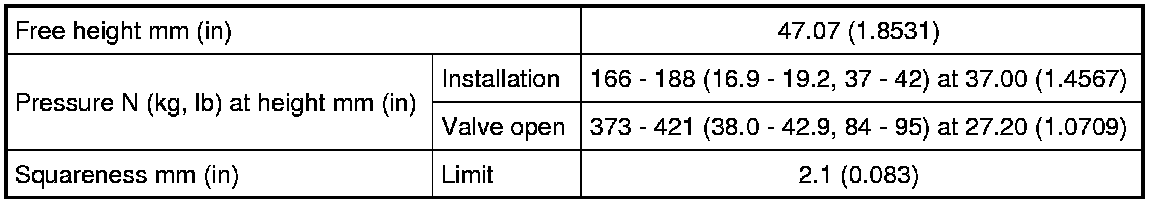

Valve Spring

Factory service manual diagram

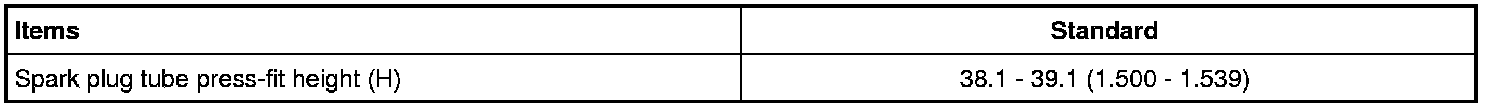

Spark Plug Tube

Unit: mm (in)

Factory service manual diagram

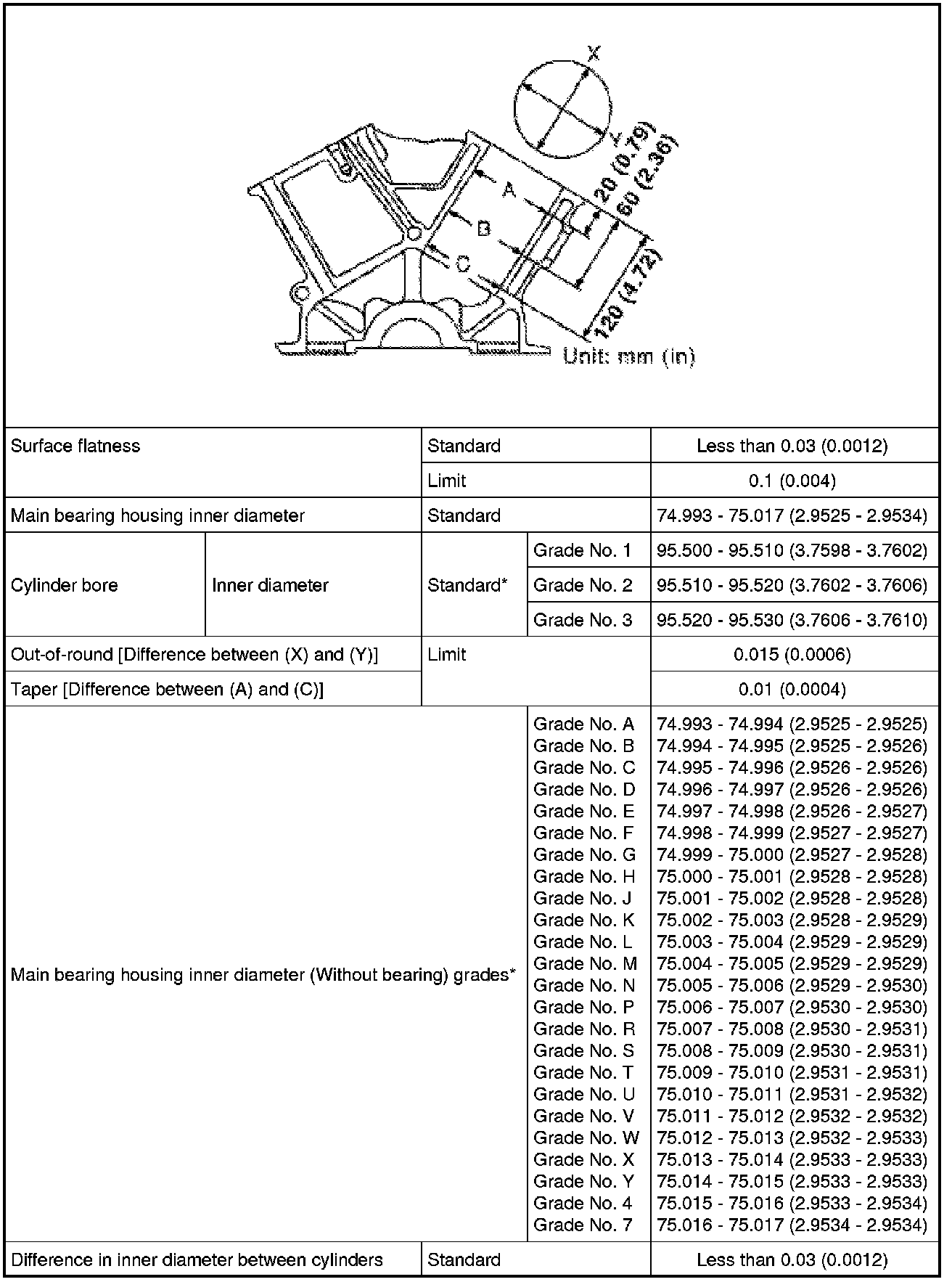

Cylinder Block

Unit: mm (in)

Factory service manual diagram





*: Always check with the Parts Department for the latest parts information.

Piston, Piston Ring and Piston Pin

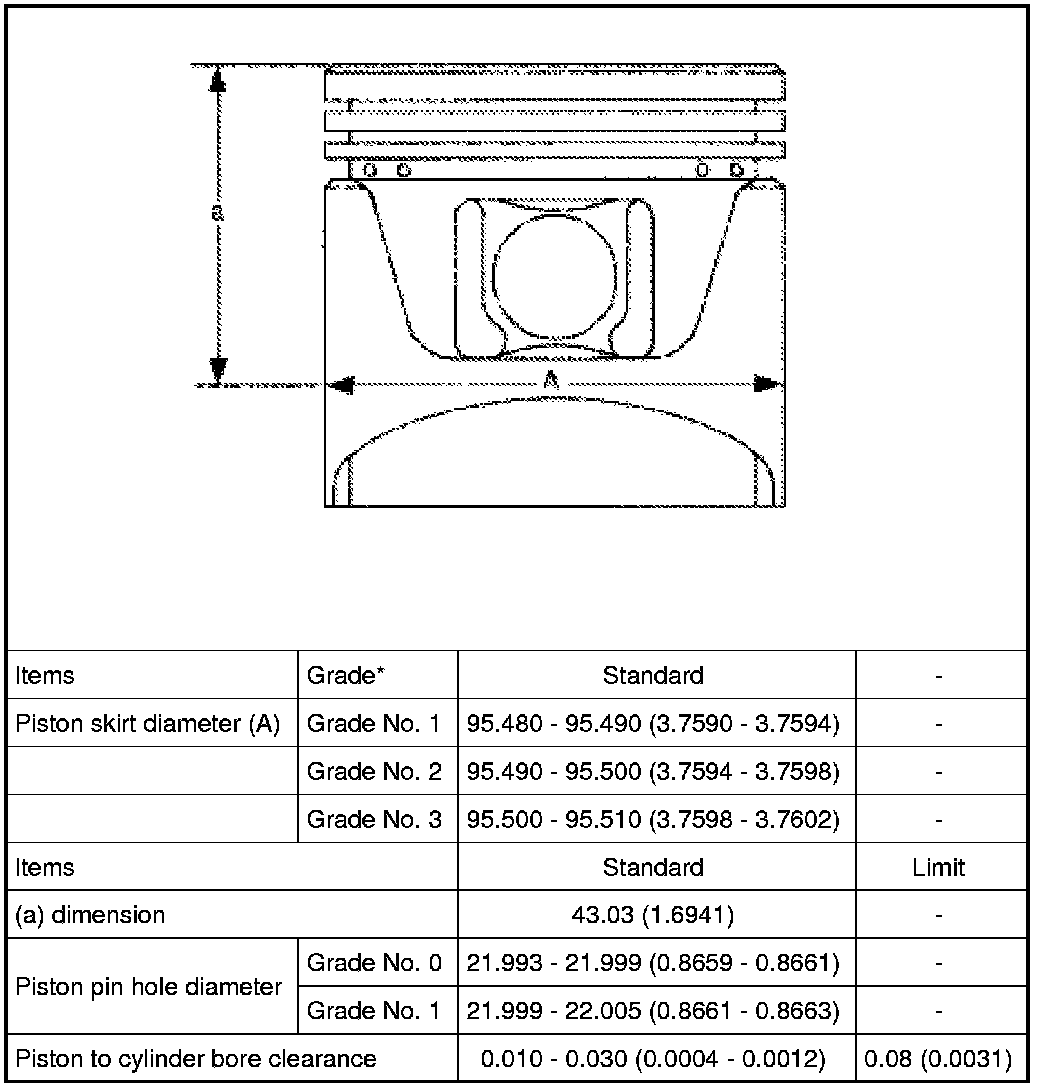

Available Piston

Unit: mm (in)

Factory service manual diagram





*: Always check with the Parts Department for the latest parts information

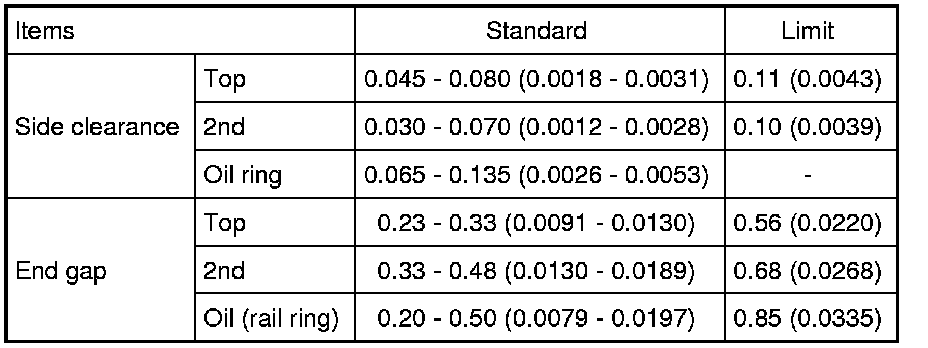

Piston Ring

Unit: mm (in)

Factory service manual diagram

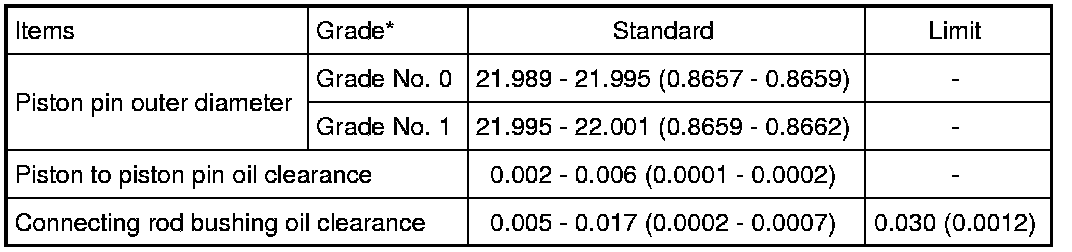

Piston Pin

Unit: mm (in)

Factory service manual diagram





*: Always check with the Parts Department for the latest parts information

Connecting Rod

Unit: mm (in)

Factory service manual diagram





1: Always check with the Parts Department for the latest parts information

2: After installing in connecting rod

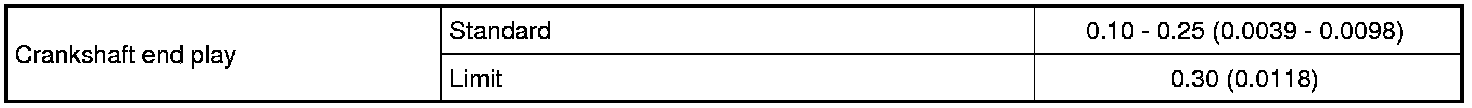

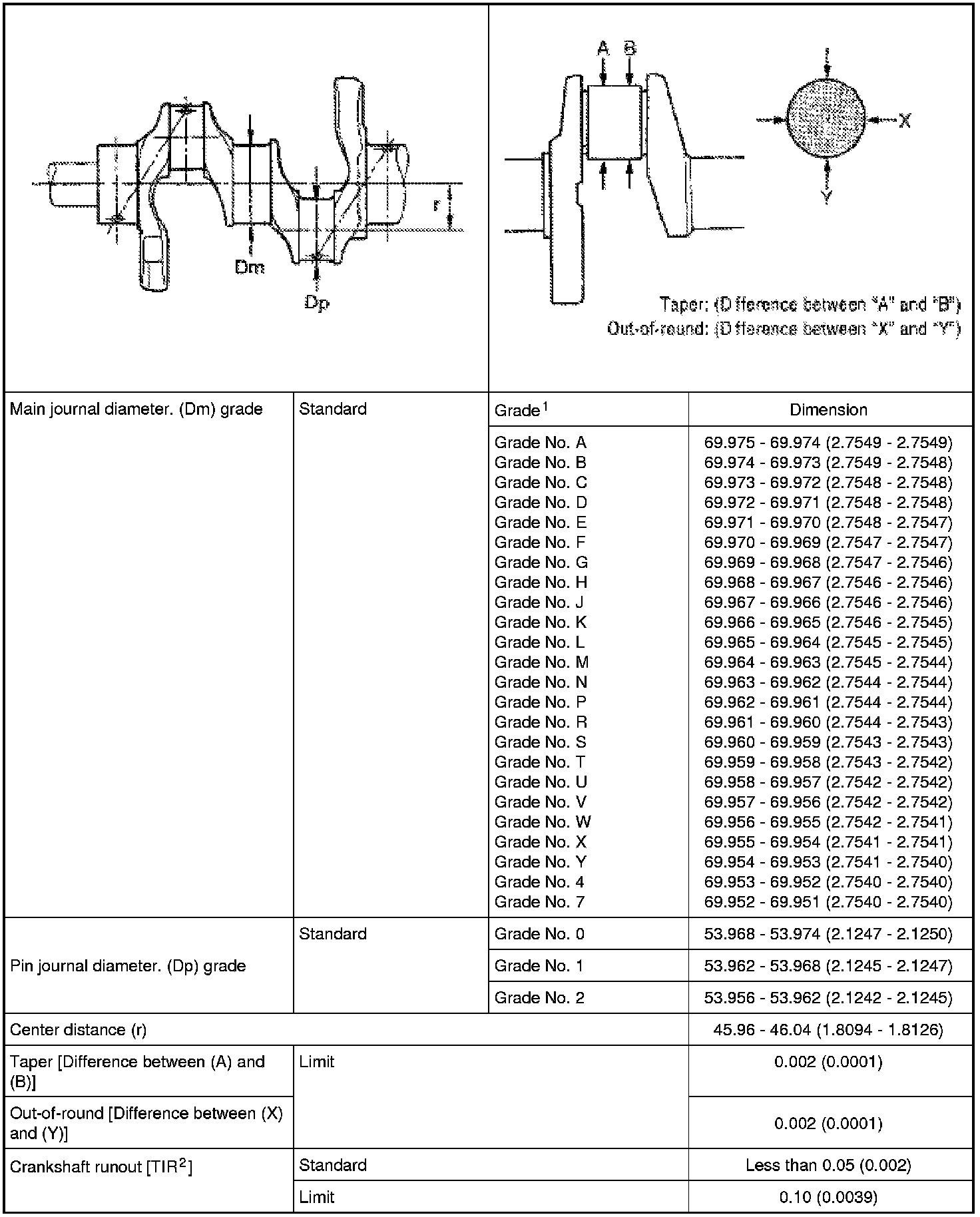

Crankshaft

Unit: mm (in)

Factory service manual diagram




Factory service manual diagram





1: Always check with the Parts Department for the latest parts information

2: Total indicator reading

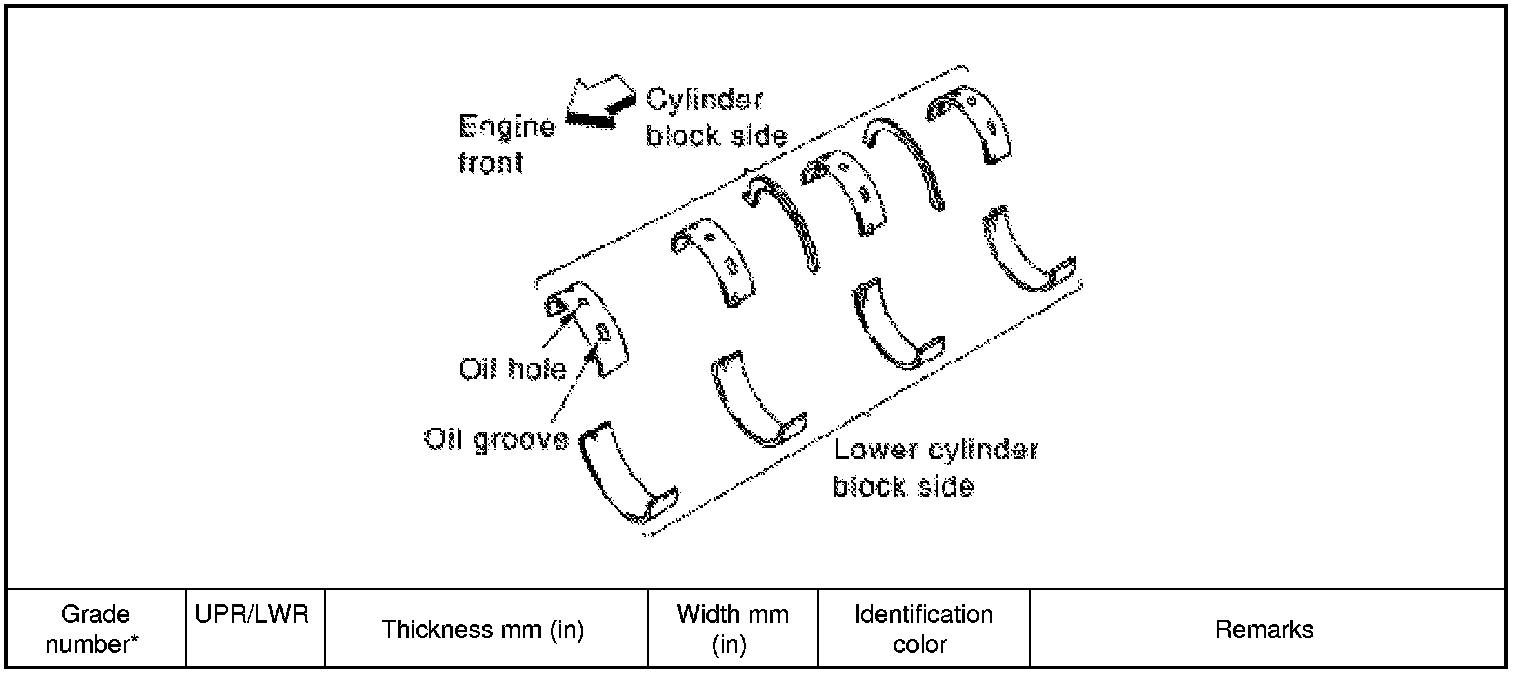

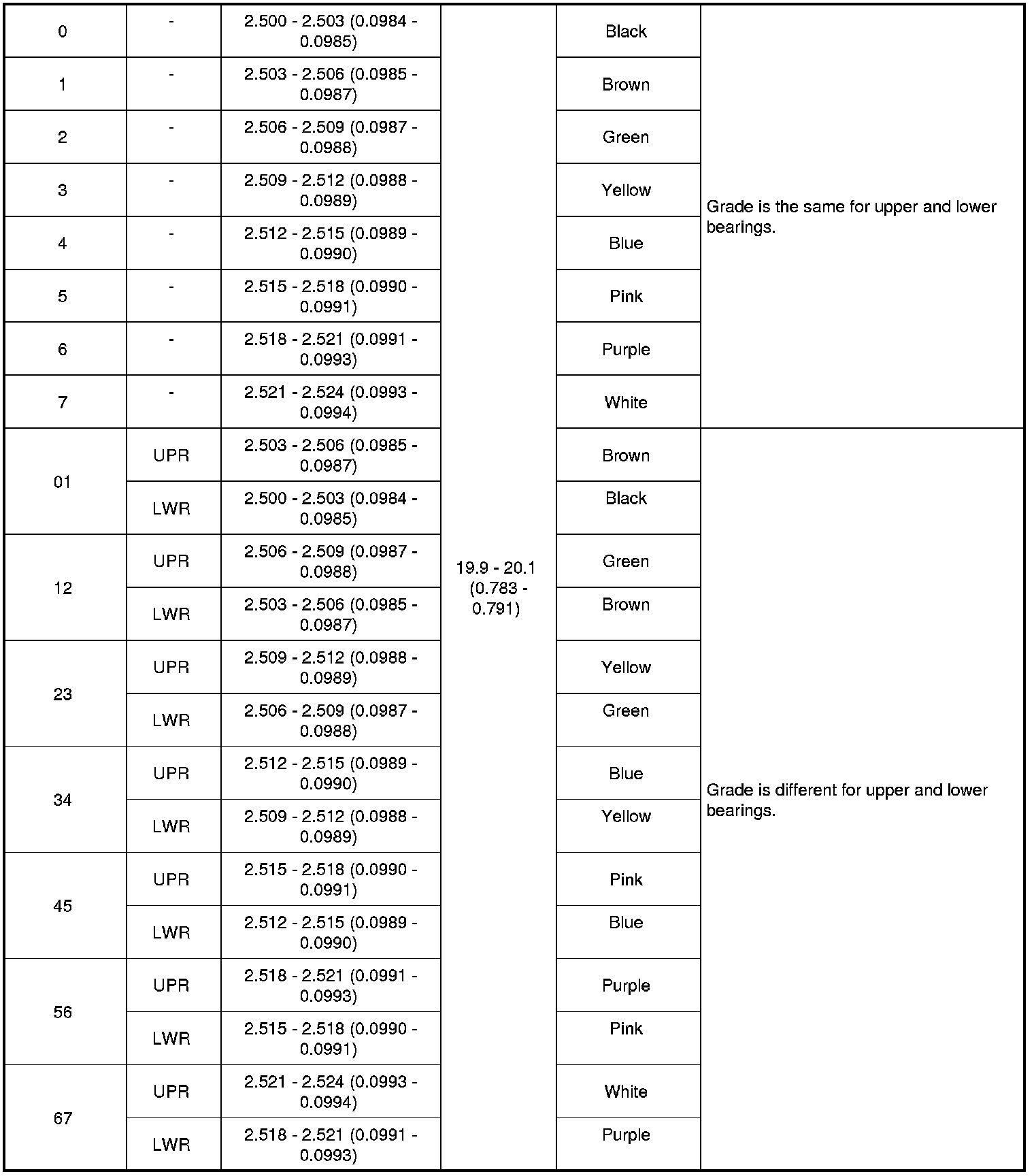

Main Bearing

Factory service manual diagram




Factory service manual diagram




*: Always check with the Parts Department for the latest parts information

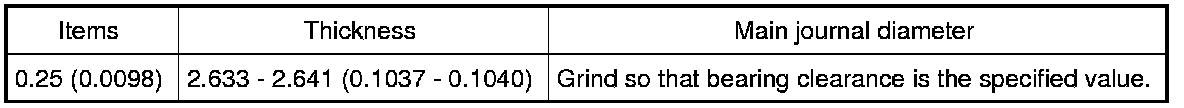

Undersize

Unit: mm (in)

Factory service manual diagram

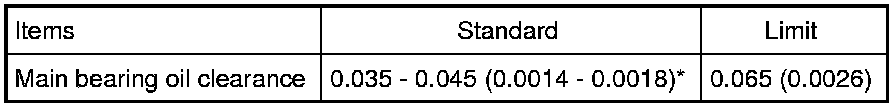

Main Bearing Oil Clearance

Unit: mm (in)

Factory service manual diagram





*: Actual clearance

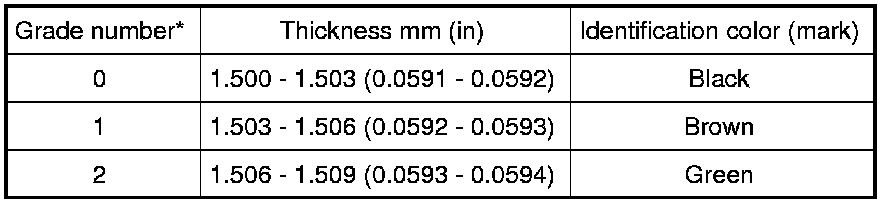

Connecting Rod Bearing

Factory service manual diagram




*: Always check with the Parts Department for the latest parts information

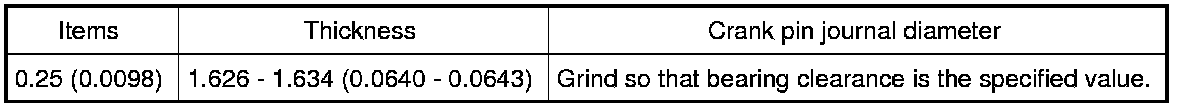

Undersize

Unit: mm (in)

Factory service manual diagram

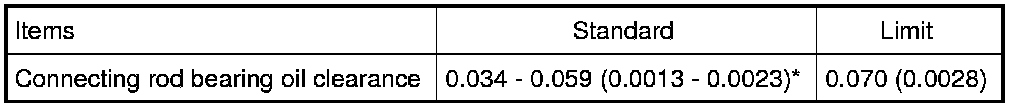

Connecting Rod Bearing Oil Clearance

Unit: mm (in)

Factory service manual diagram





*: Actual clearance
