2011 Suzuki Equator 2WD V6-4.0LFACTORY OEM SERVICE PROCEDURE
Intake Manifold
Intake Manifold
- If stud bolts were removed from cylinder head, install them and tighten to the specified torque.

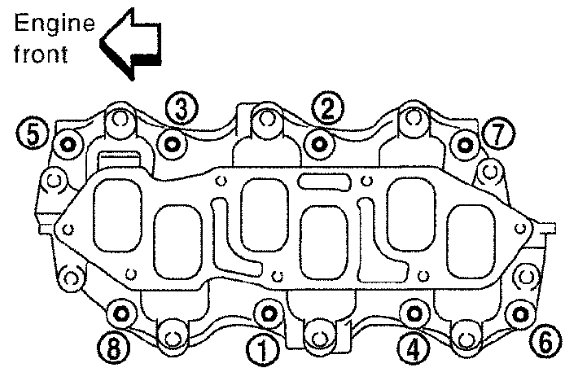

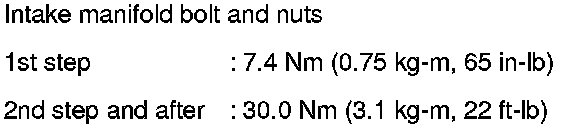

- Tighten all nuts and bolts to the specified torque in two or more steps in numerical order as shown.
Intake Manifold Collector
- If stud bolts were removed from intake manifold, install them and tighten to the specified torque.

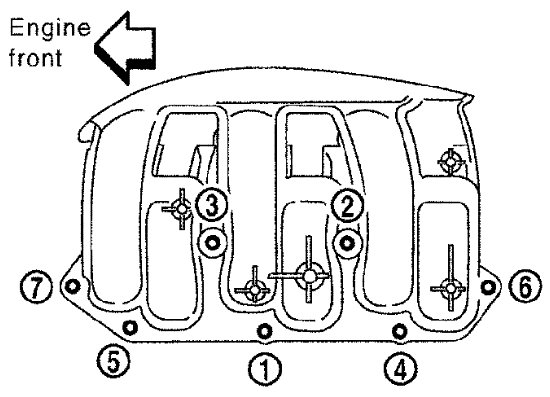

- Tighten nuts and bolts in numerical order as shown.
