2011 Suzuki Equator 2WD V6-4.0LFACTORY OEM SERVICE PROCEDURE
Connecting Rod, Engine

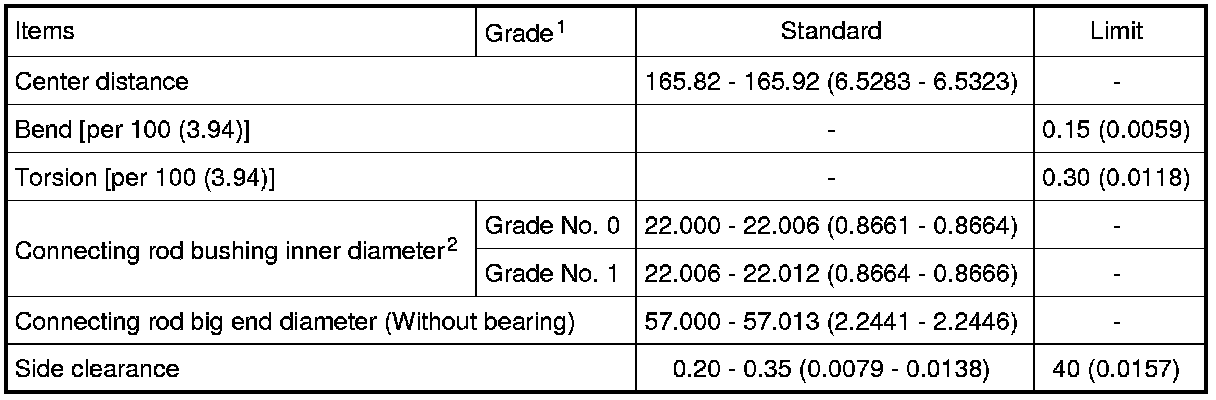

Connecting Rod
Unit: mm (in)
1: Always check with the Parts Department for the latest parts information
2: After installing in connecting rod
Tighten connecting rod bolts as follows:
a) Apply engine oil to the threads and seats of connecting rod bolts.
b) Tighten connecting rod bolts.
c) Then tighten all connecting rod bolts 90° clockwise.
