2011 Suzuki Equator 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Scan Tool Testing and Procedures
SDT Checking System
Description
- When SDT is connected with a data link connector equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.
- Refer to "SDT Operation Manual" for more information.

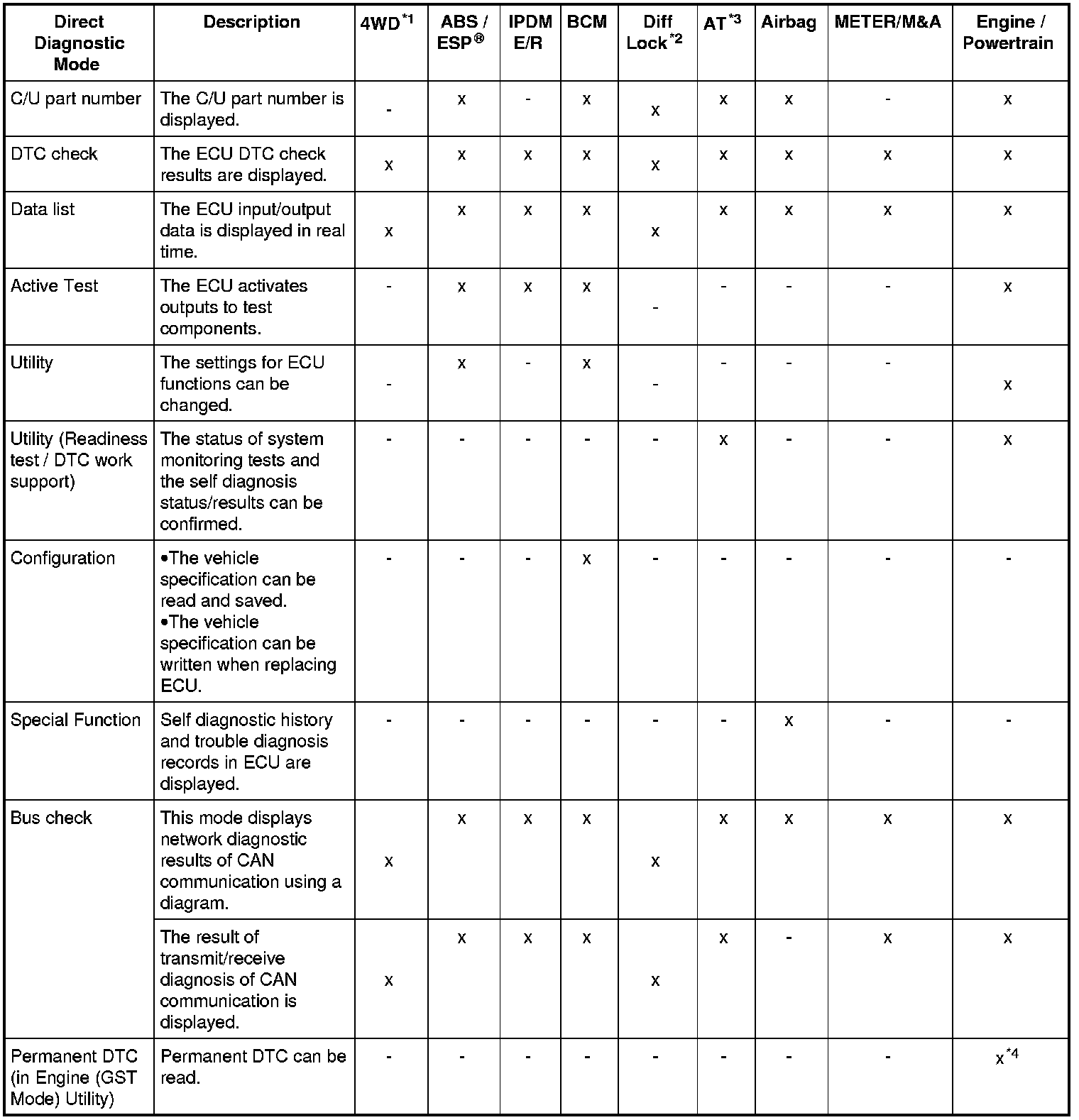

Function and System Application
x: Applicable
*1: With 4WD
*2: With electronic locking rear differential
*3: With automatic transmission
*4: VQ40DE only

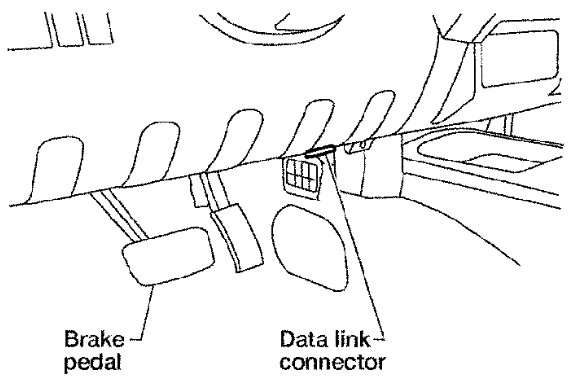

SDT Data Link Connector (DLC) Circuit

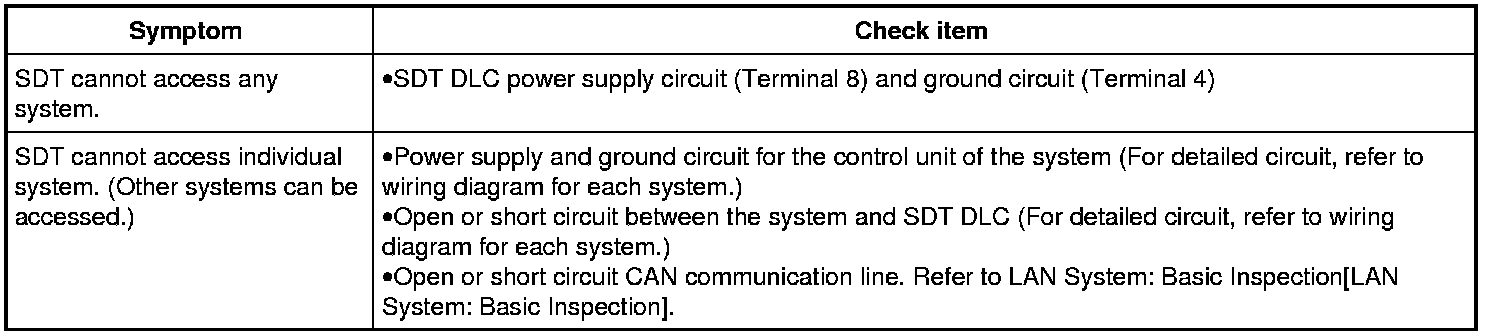

Inspection Procedure
If the SDT cannot diagnose the system properly, check the following items.
NOTE:
The CAN and DDL2 circuits from DLC pins 6, 7 and 14 may be connected to more than one system. A short in any circuit connected to a control unit in one system may affect SDT access to other systems.

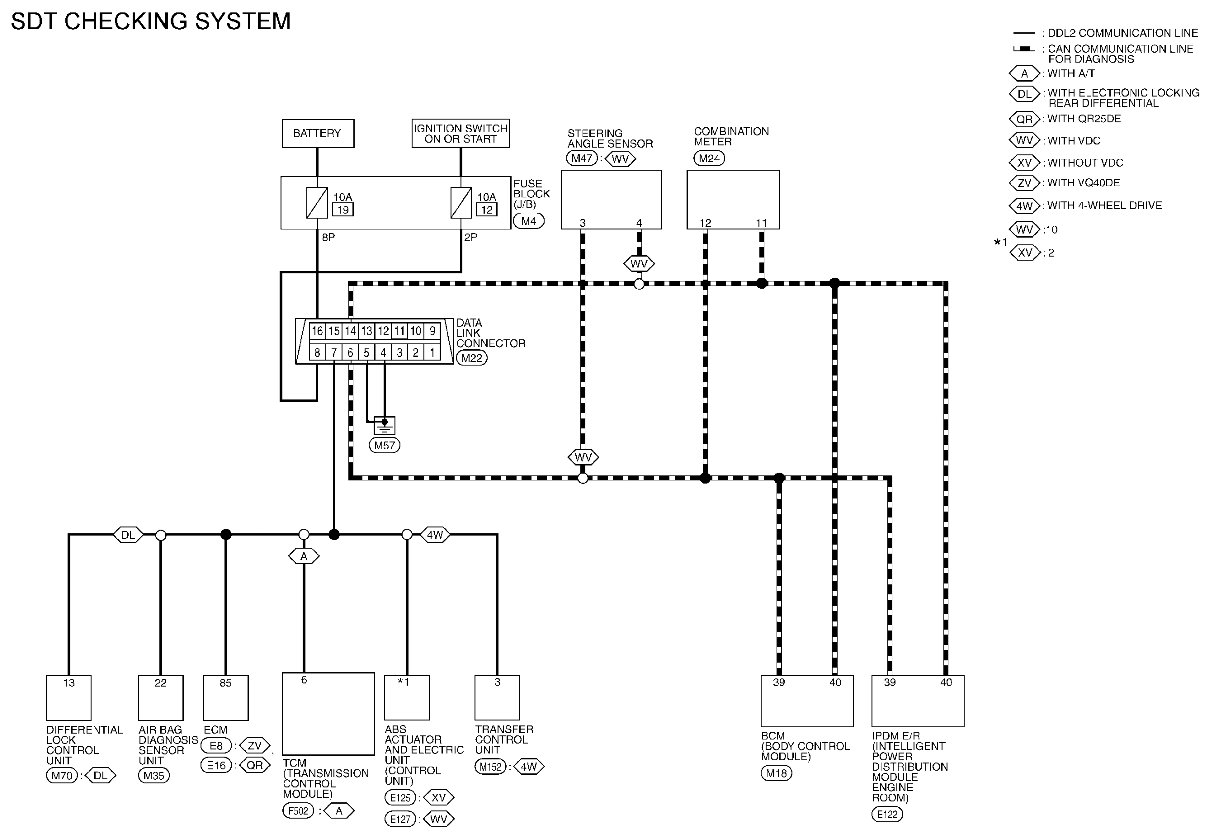

Wiring Diagram
