2011 Suzuki Equator 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
System Specifications
Service Data and Specifications

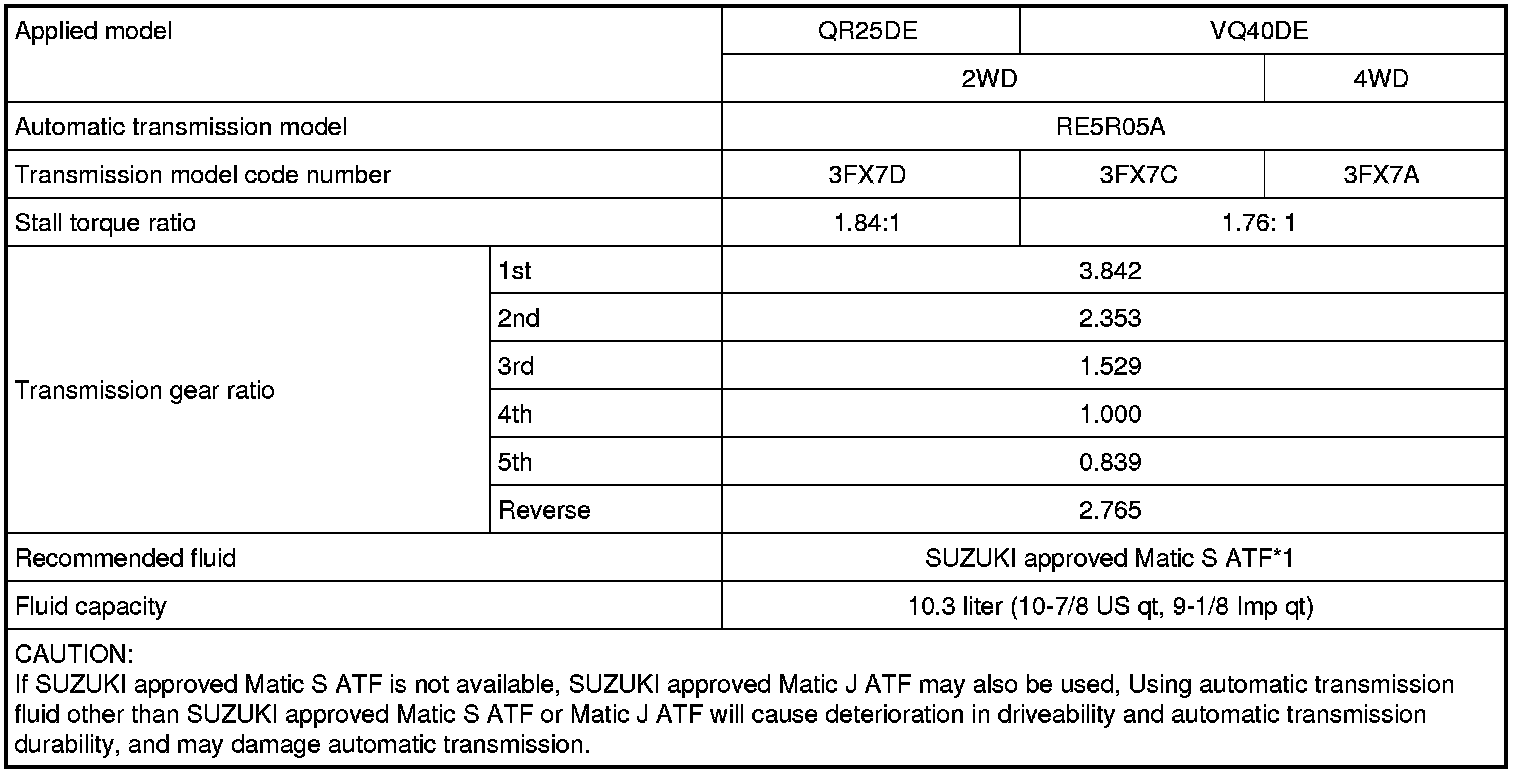

General Specification
*1: Refer to [Recommended Fluids and Lubricants [for USA and Canada] [1][2]Maintenance ] (United States and Canada) and [Recommended Fluids and Lubricants [for Mexico] [1][2]Maintenance ] (Mexico).
Vehicle Speed at Which Gear Shifting Occurs

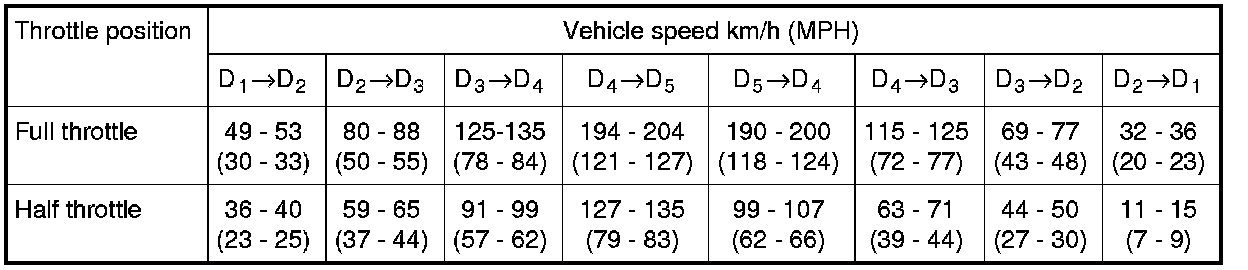

QR25DE Models
- At half throttle, the accelerator opening is 1/2 of the full opening.

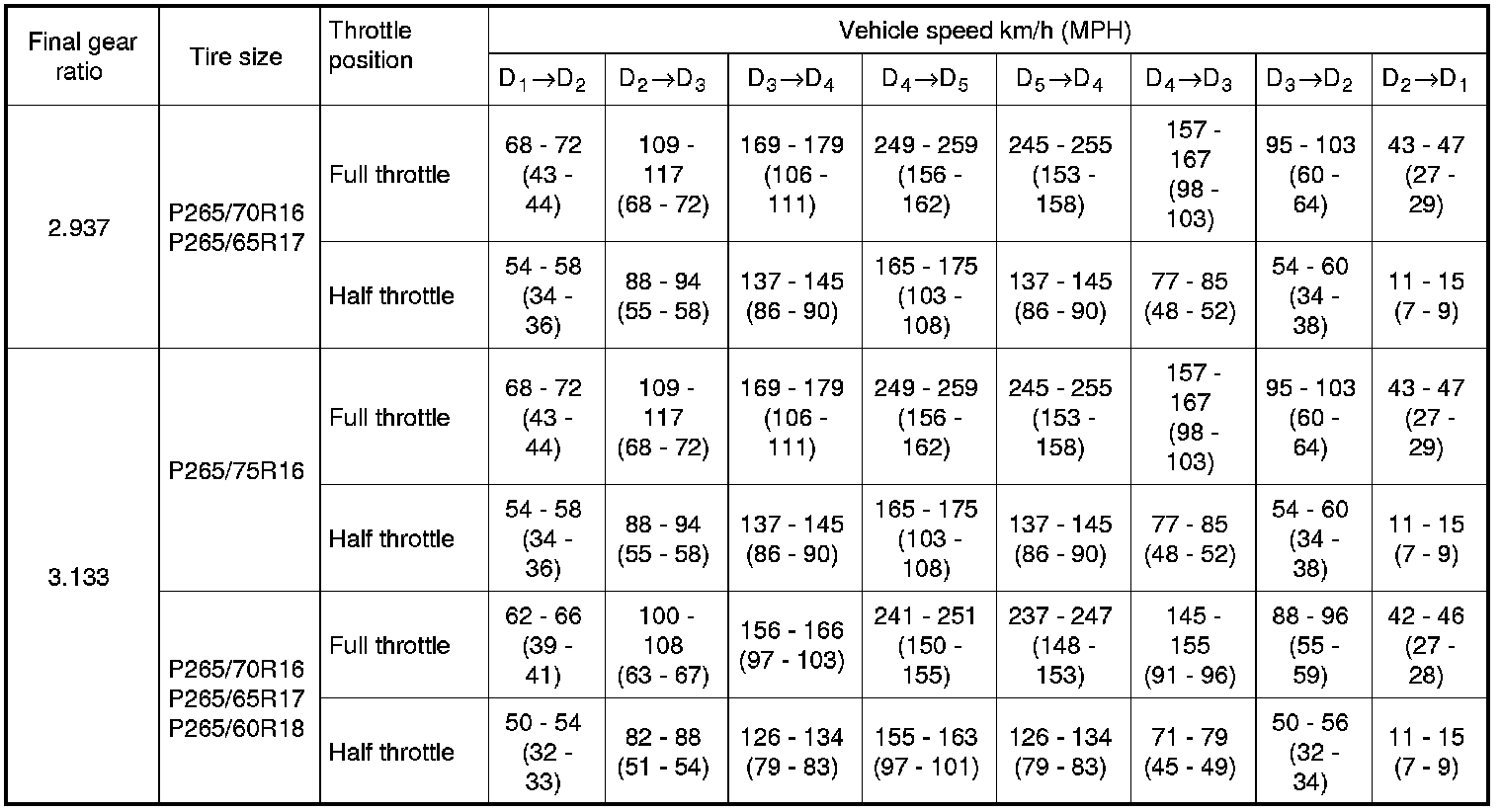

VQ40DE Models for 2WD
- At half throttle, the accelerator opening is 1/2 of the full opening.

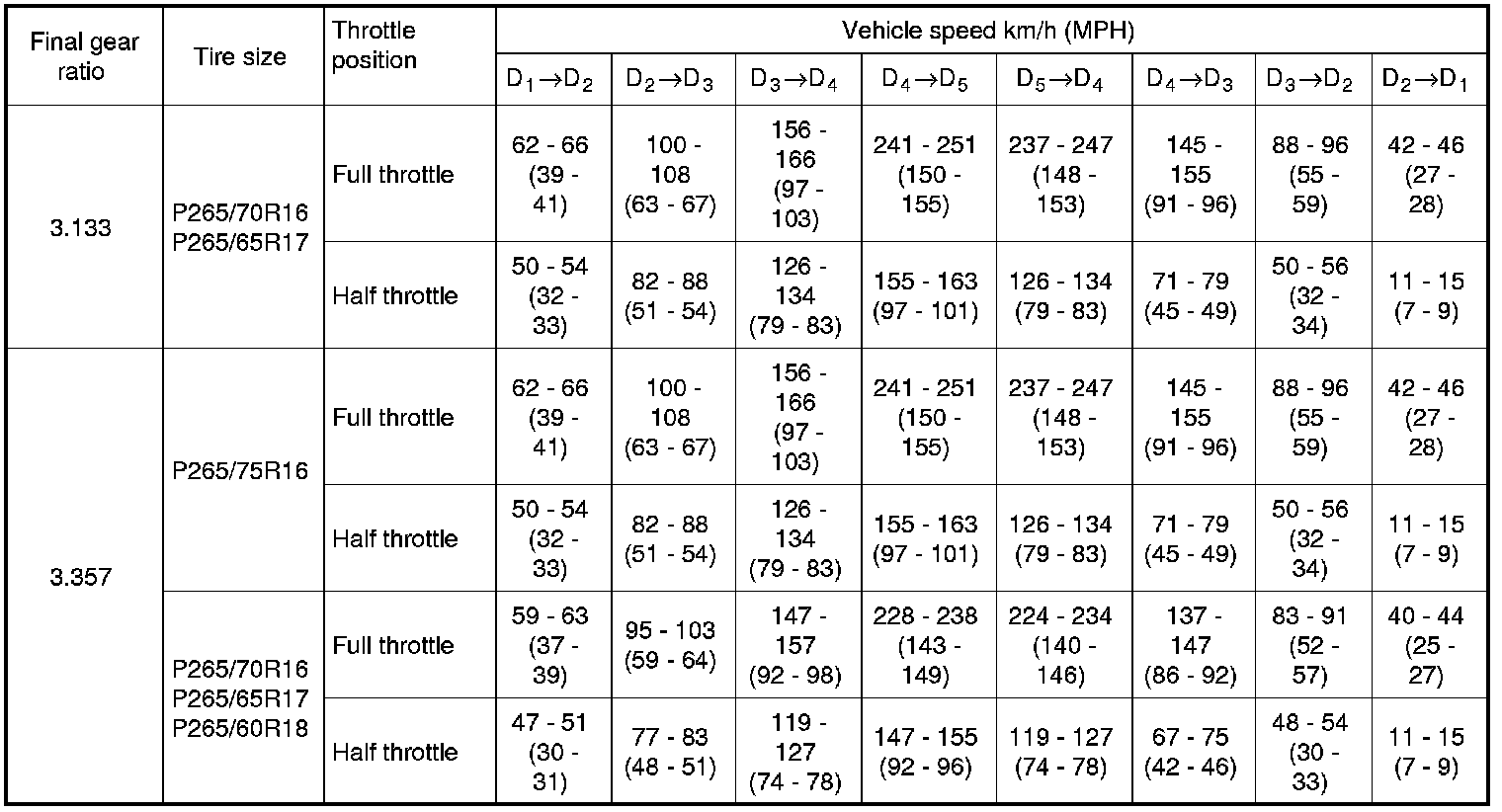

VQ40DE Models for 4WD
- At half throttle, the accelerator opening is 1/2 of the full opening.
Vehicle Speed at Which Lock-up Occurs/Releases

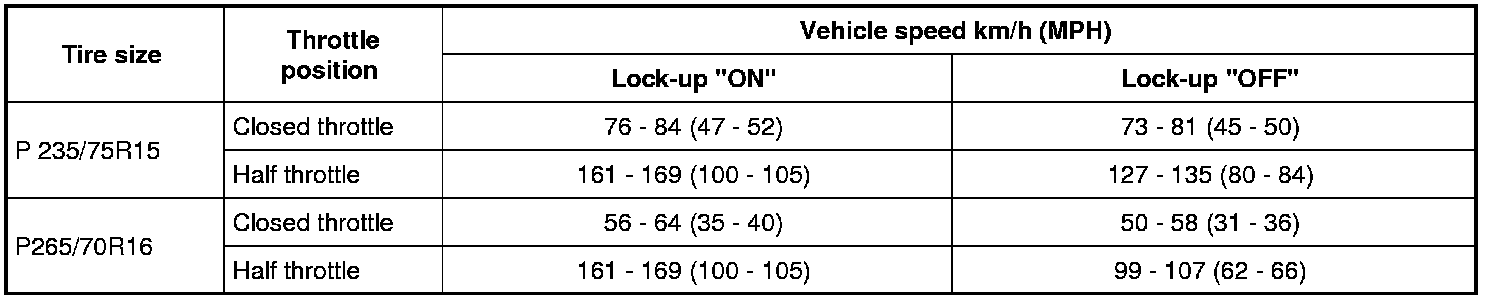

QR25DE Models
- At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
- At half throttle, the accelerator opening is 1/2 of the full opening.

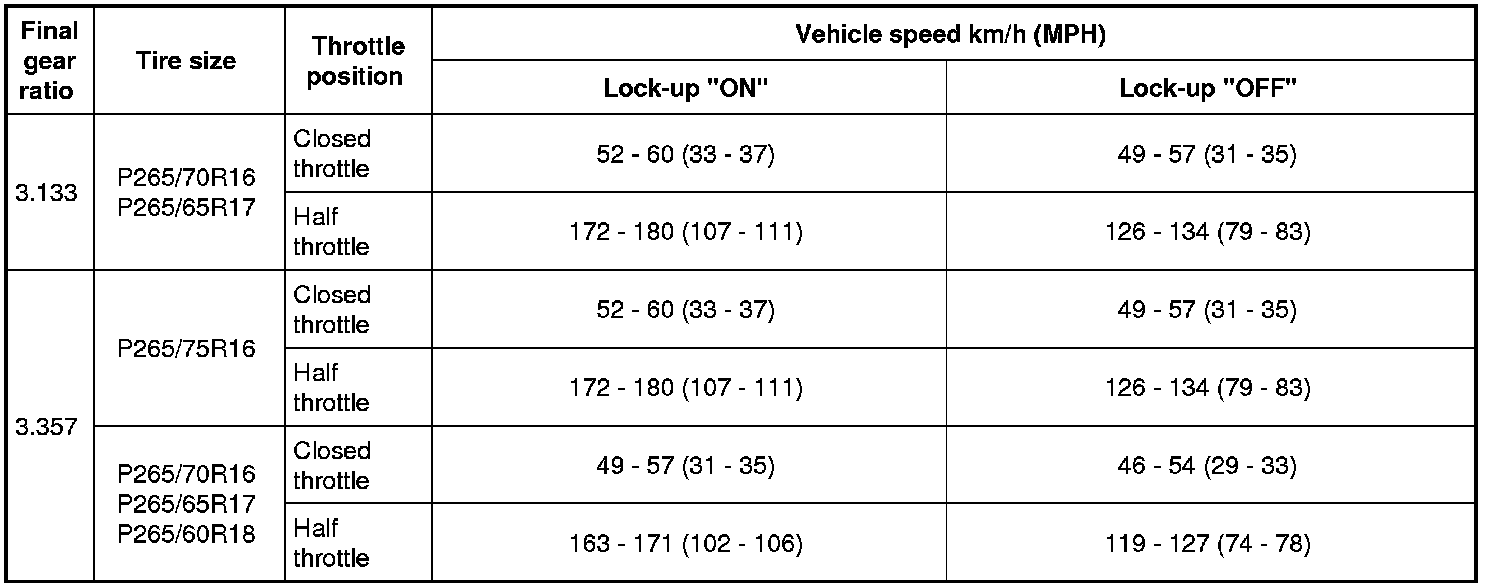

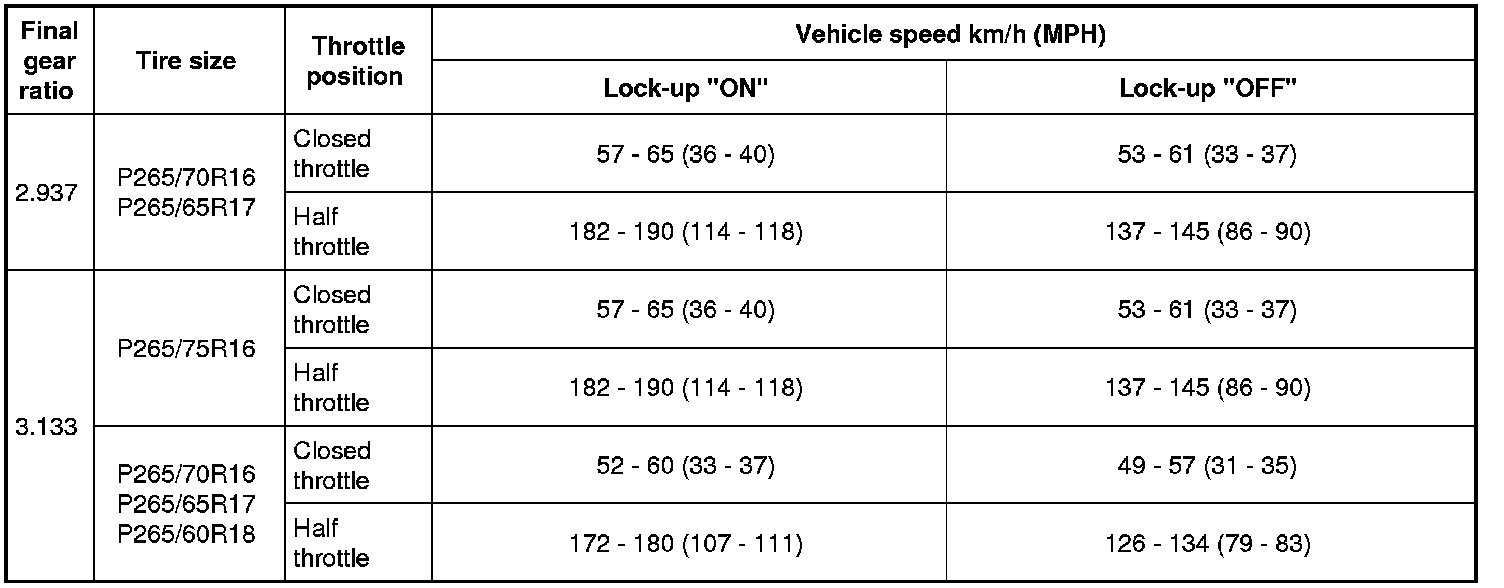

VQ40DE Models for 2WD
- At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
- At half throttle, the accelerator opening is 1/2 of the full opening.
VQ40DE Models for 4WD
- At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
- At half throttle, the accelerator opening is 1/2 of the full opening.

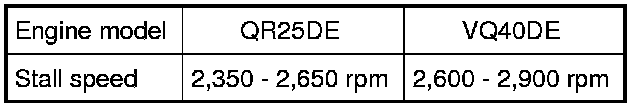

Stall Speed

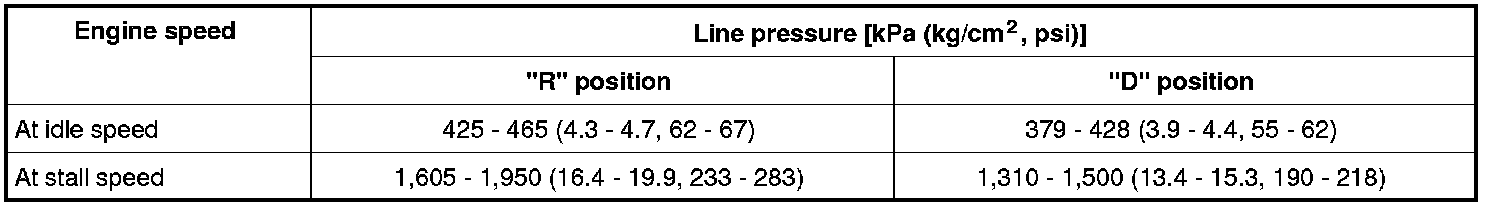

Line Pressure

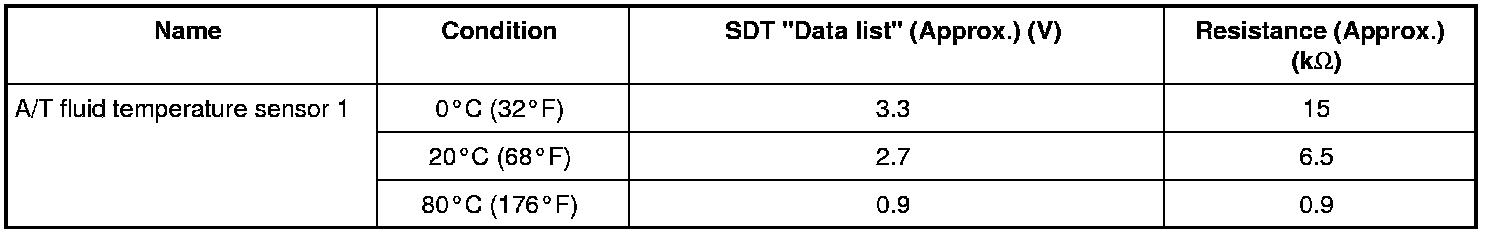

A/T Fluid Temperature Sensor

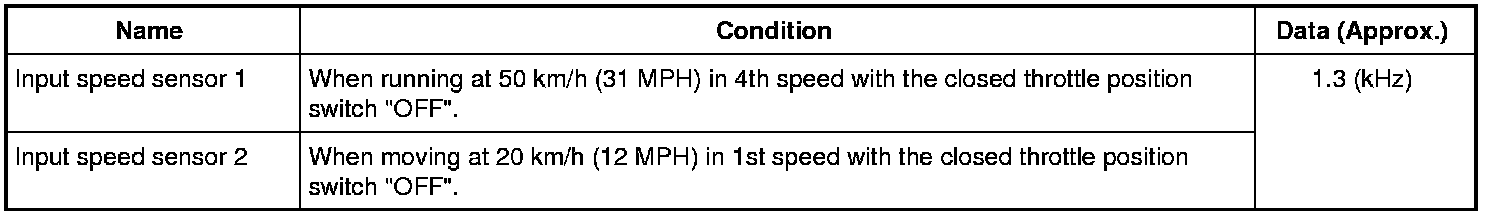

Input Speed Sensor

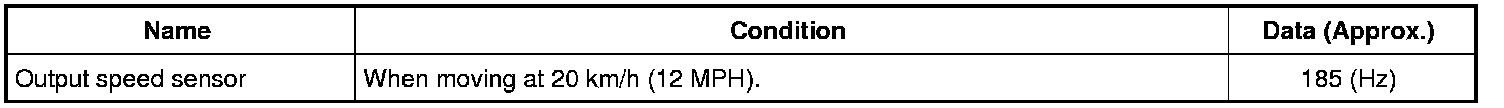

Output Speed Sensor

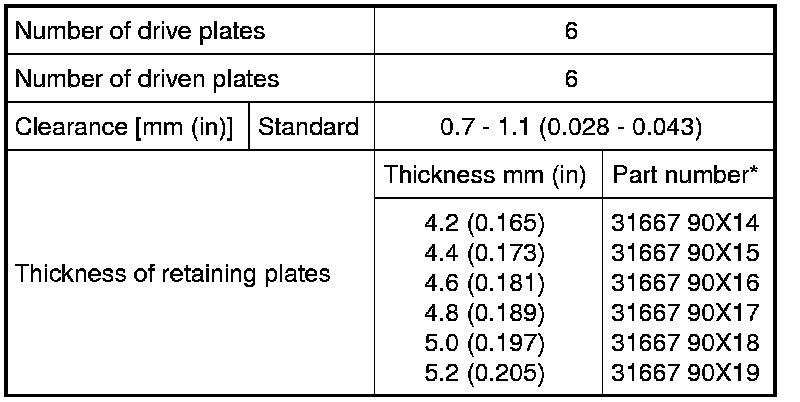

Reverse brake
*: Always check with the Parts Department for the latest parts information.
Total End Play

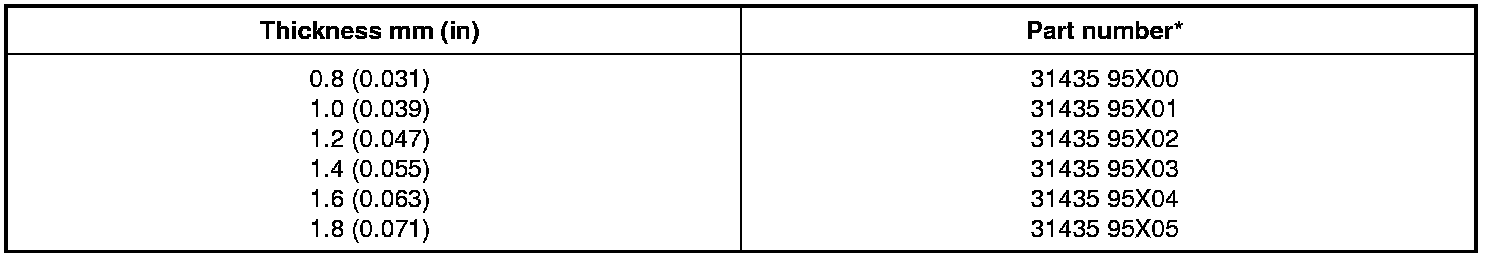

Bearing Race for Adjusting Total End Play
*: Always check with the Parts Department for the latest parts information.
