2011 Suzuki Equator 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Alignment
Wheel Alignment (Unladen*1)*6

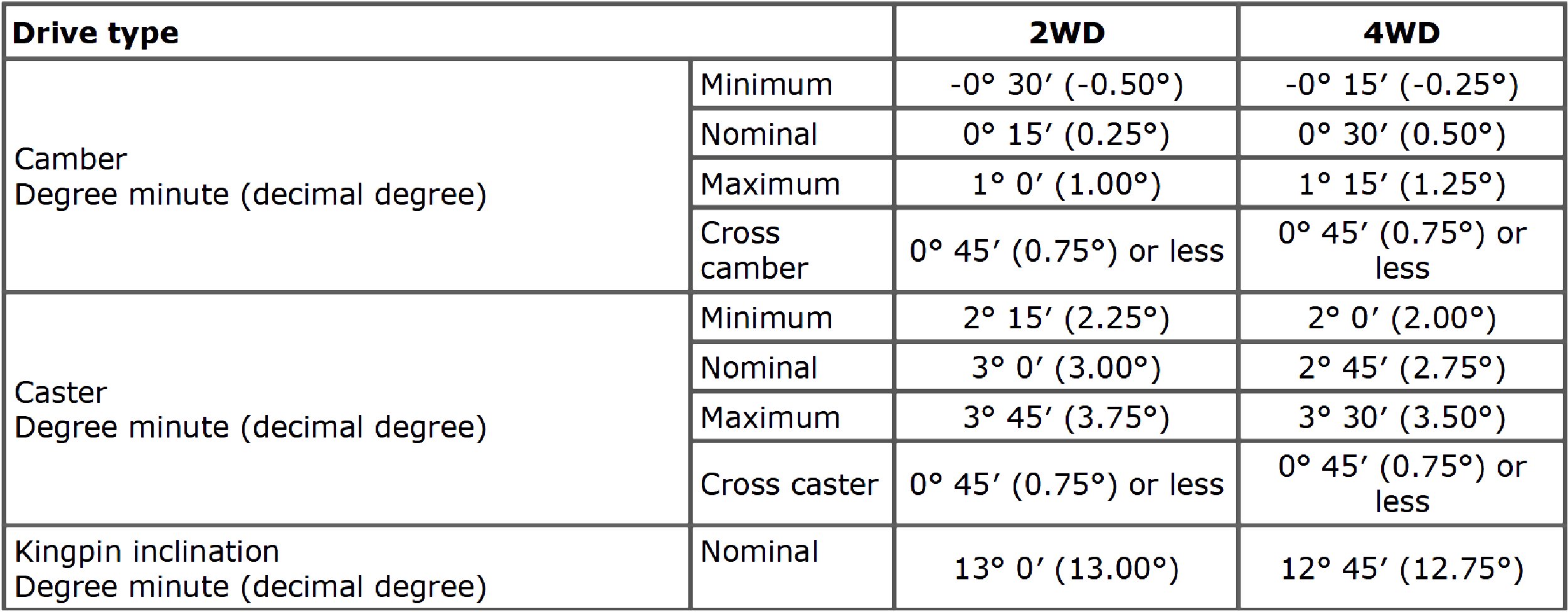

Camber, Caster And Kingpin Inclination:

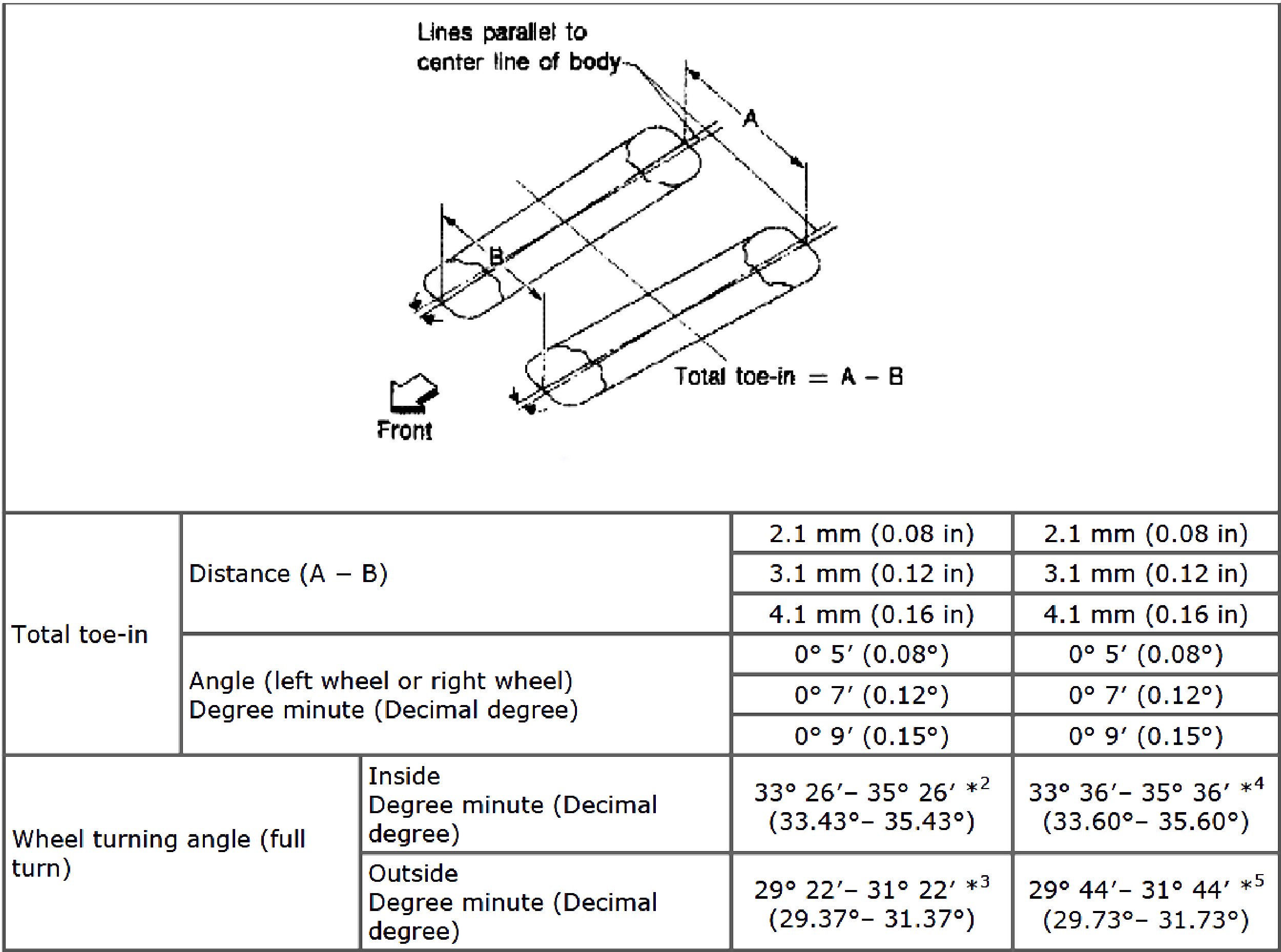

Total Toe-in And Wheel Turning Angle:
*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
*2: Target value 35° 26' (35.43°)
*3: Target value 31° 22' (31.37°)
*4: Target value 35° 36' (35.60°)
*5: Target value 31° 44' (31.73°)
*6: Some vehicles may be equipped with straight (non-adjustable) lower link bolts and washers. In order to adjust camber and caster on these vehicles, first replace the lower link bolts and washers with adjustable (cam) bolts and washers.

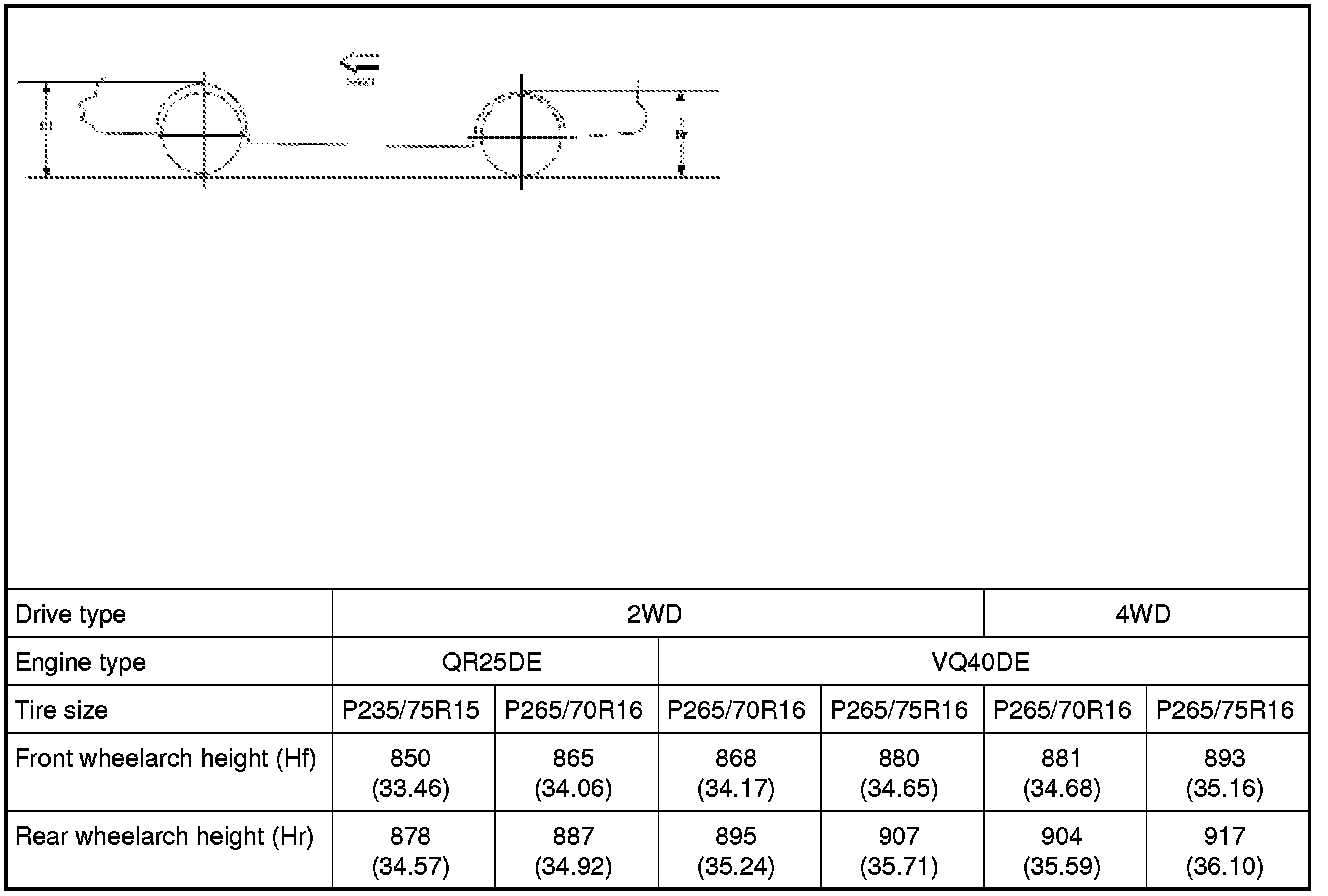

Wheel Arch Height (Unladen*1)
King Cab
Unit: mm (in)
*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

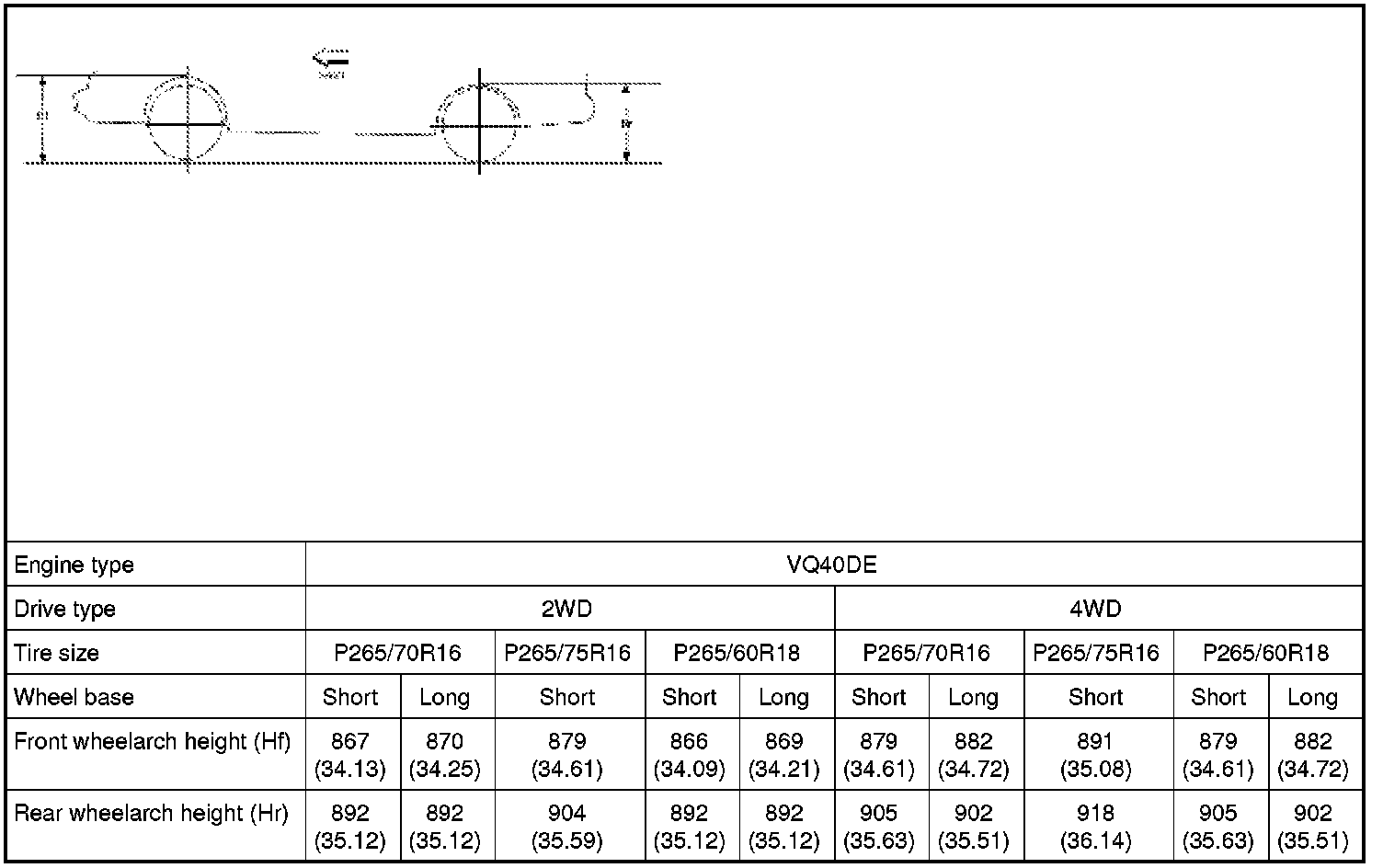

Crew Cab
Unit: mm (in)
*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
