2011 Suzuki Equator 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Electrical Specifications
Service Data and Specifications
Fuel Pressure

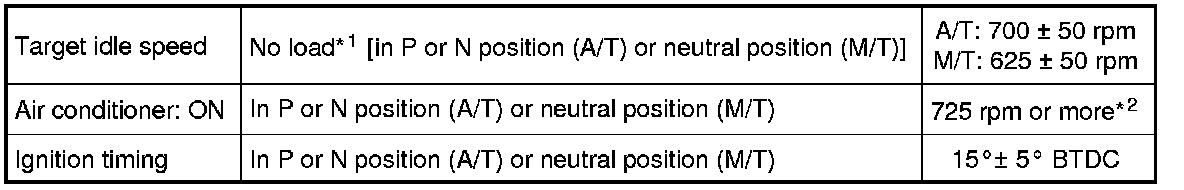

Idle Speed and Ignition Timing
*1: Under the following conditions:
- Air conditioner switch: OFF
- Electric load: OFF (Lights, heater fan)
- Steering wheel: Kept in straight-ahead position
*2: If refrigerant pressure is low, the idle speed may not be increased.

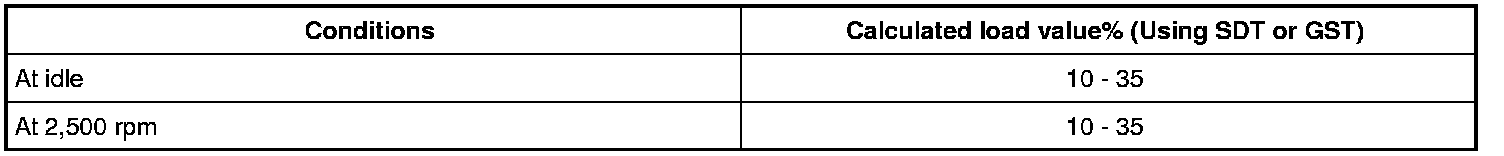

Calculated Load Value

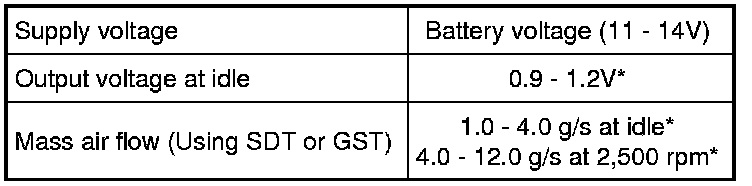

Mass Air Flow Sensor
*: Engine is warmed up to normal operating temperature and running under no load.

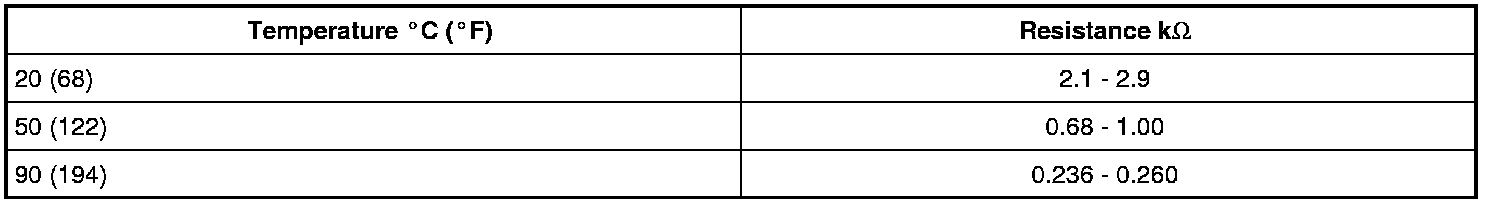

Intake Air Temperature Sensor

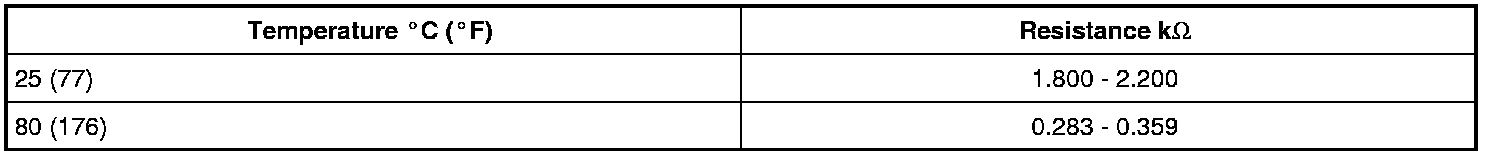

Engine Coolant Temperature Sensor
Air Fuel Ratio (A/F) Sensor 1 Heater
Heated Oxygen sensor 2 Heater
Crankshaft Position Sensor (POS)
Refer to [P0335 CKP Sensor (POS)] P0335.
Camshaft Position Sensor (PHASE)
Refer to [P0340 CMP Sensor (PHASE)] P0340.
Throttle Control Motor
Fuel Injector
Fuel Pump
