2011 Suzuki Equator 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Information Bus: Service and Repair
Precaution for Harness Repair

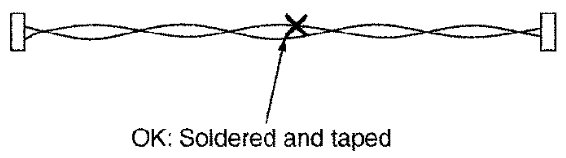

- Solder the repaired area and wrap tape around the soldered area.
NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).

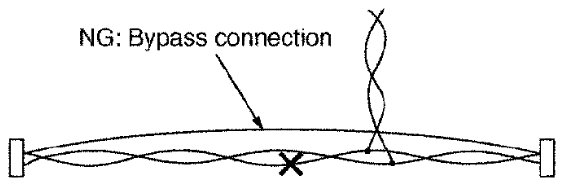

- Bypass connection is never allowed at the repaired area.
NOTE:
Bypass connection may cause CAN communication error. The spliced wire becomes separated and the characteristics of twisted line are lost.
- Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communication line.
